Sanus F215 - Step 2 A: Wood Stud Wall Mounting; Locate and Mark Wall Studs; Position and Level Wall Template

10

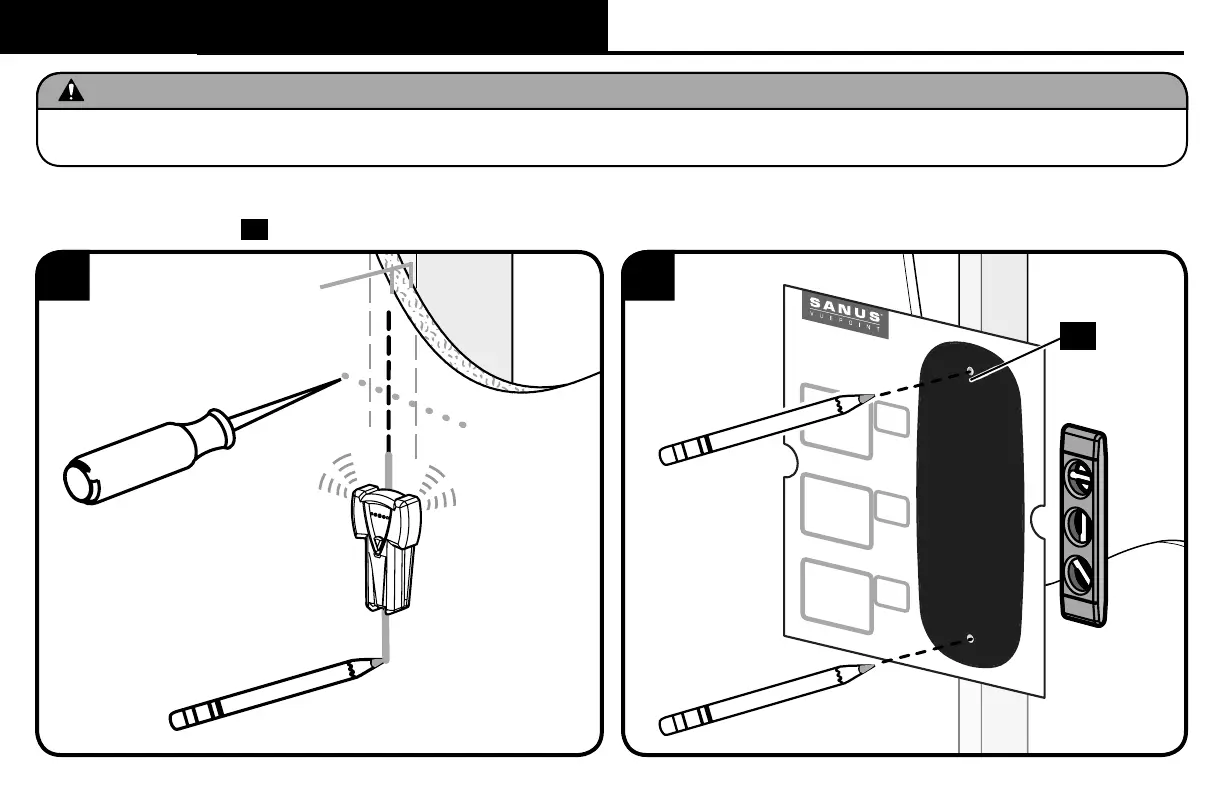

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the template
17
at your desired height and line up the holes with your stud center line. Level the template and tape in place.
