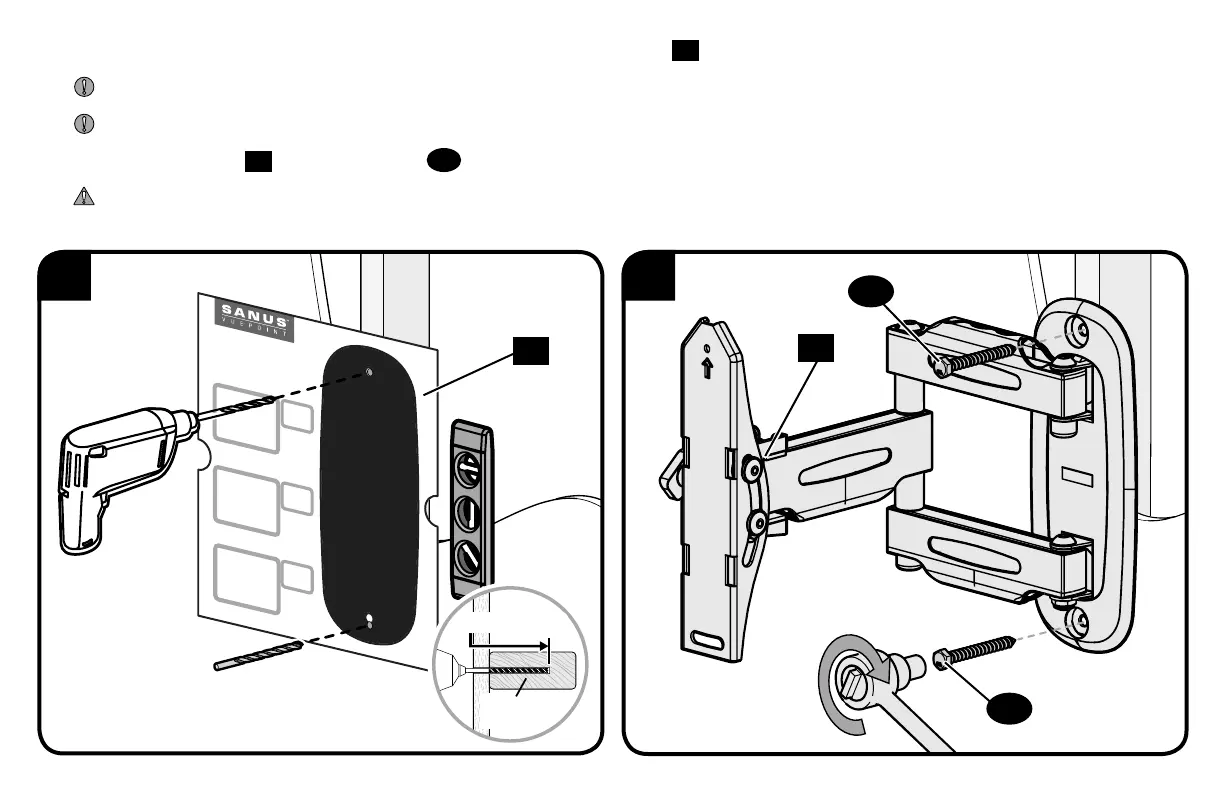

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove template
17
.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm).
4. Install full motion arm
18
using two lag bolts
19
. Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
Wood Stud Installation
7/32 in.
(5.5 mm)
2¾
in. (70 mm)
4
3
19
19
17
18
