14
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate assembly
15
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

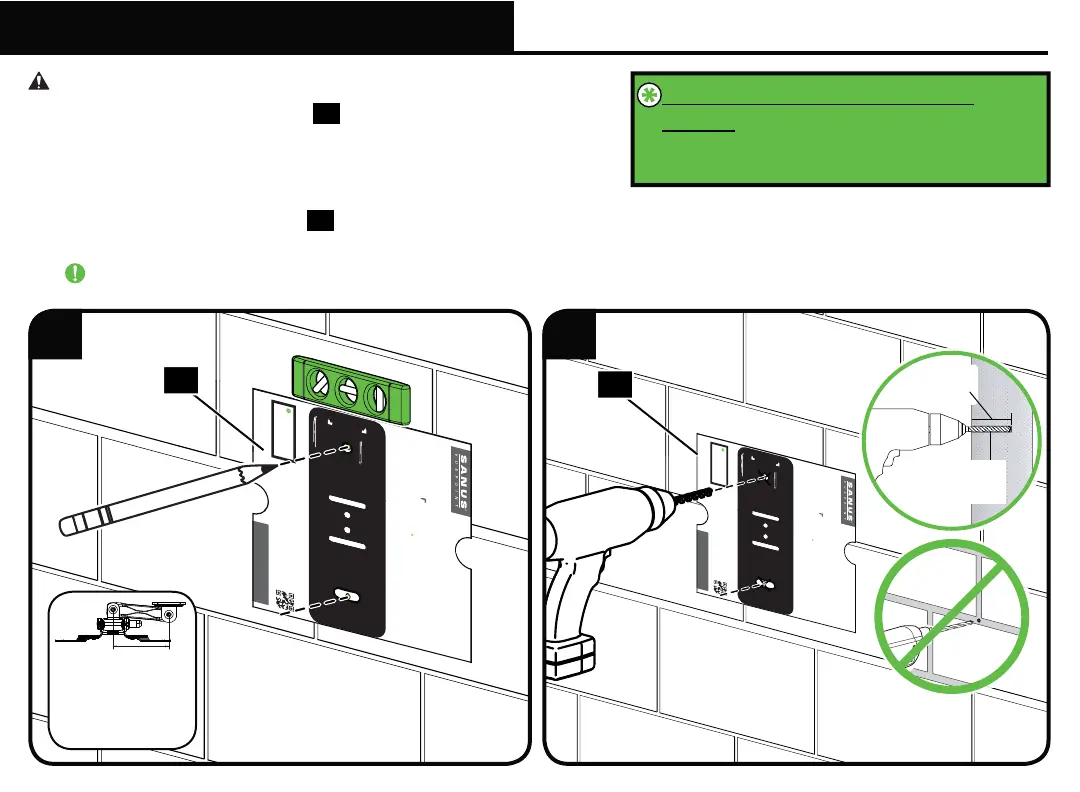

1. Position the wall plate template
14
on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill two pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
HERE WE GO!
Scan here to view
your install video.
san.us/1125
We're here to help! If you have questions at any point,
contact customer service at 1-888-333-9952.
THIS IS YOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLY GOING
TO ENJOY STEP 3
GET STARTED
WITH STEP 1
Grab the TV bracket and line
it up with the holes on the
back of your TV.
Attach using the bolts that fit.
Locate your stud and choose a
height for your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plate is secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
WELCOME AND THANKS FOR CHOOSING SANUS VUEPOINT
Reference the product manual for
details on mounting to concrete.
Be sure to review the manual for
complete safety instructions.
Model: FSF207
6700-004862<00>
THIS
WA
Y
U
P
HERE WE GO!
Scan here to view
your install video.
san.us/1125
We're here to help! If you have questions at any point,
contact customer service at 1-888-333-9952.
THIS IS YOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLY GOING
TO ENJOY STEP 3
GET STARTED
WITH STEP 1
Grab the TV bracket and line
it up with the holes on the
back of your TV.
Attach using the bolts that fit.
Locate your stud and choose a
height for your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plate is secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
WELCOME AND THANKS FOR CHOOSING SANUS VUEPOINT
Reference the product manual for
details on mounting to concrete.
Be sure to review the manual for
complete safety instructions.
Model: FSF207
6700-004862<00>
THIS
WAY
UP
14
14
21
10 mm
(3/8 in.)
75 mm
(3 in.)
NOTE: TV shifts 4.27 in.
(108.6 mm) to the right
or left when in the home
position. Consider this
when selecting the loca-
tion of your wall mount.
Concrete Installation Kit CMK2 is not
included
(see page 6) Contact Customer
Service at 1-888-333-9952 to have the
additional hardware shipped directly to you.
STEP 2B
Attach Wall Plate to Wall
Solid Concrete or Concrete Block Option
To Next Page
