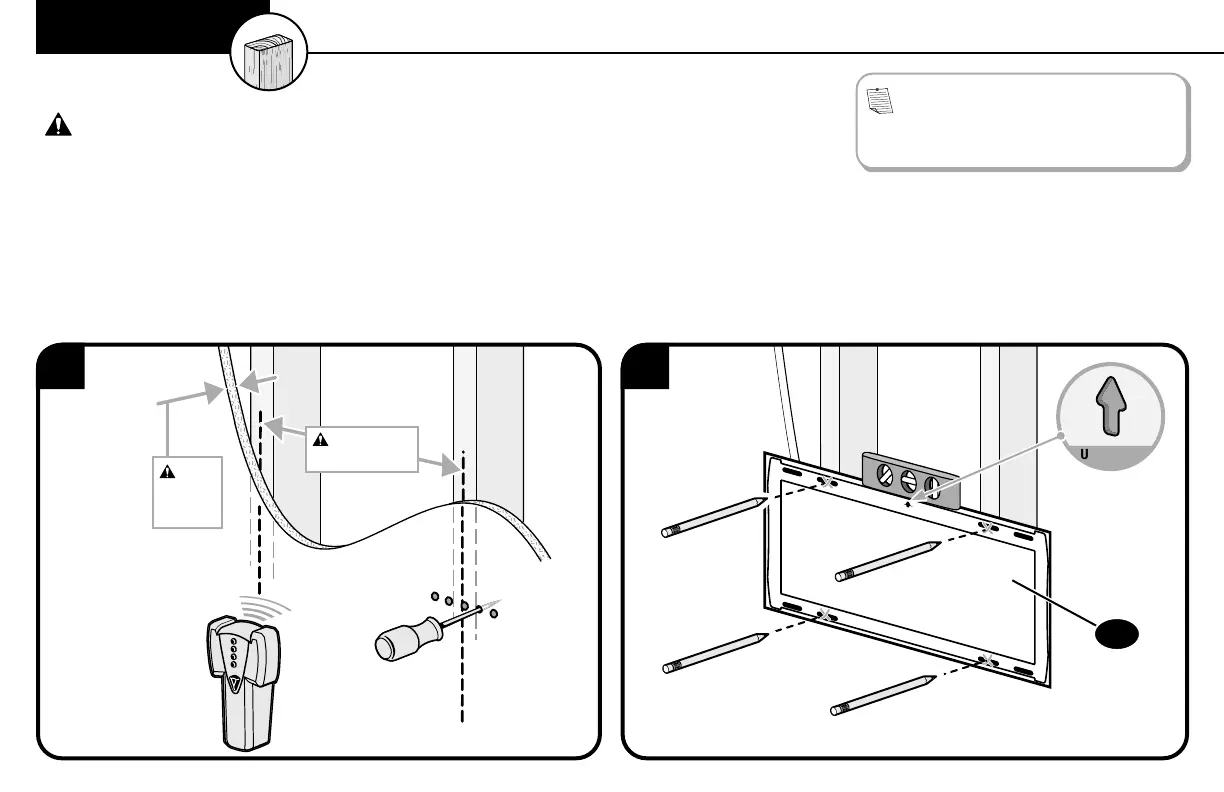

STEP 2A Wood Stud Installation
UP ARROW
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1 ½ x 3 ½ in. (38 x 89 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)
● Stud centers must be verified – not all walls have conventional 16 in. (406 mm) stud spacing
