14
Min. 24 in.
(610 mm
)
Min. 24 in.
(610 mm
)
Min. 16 in.
(406 mm)
1 2
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate
08
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
● Minimum horizontal space between fasteners: 24 in. (610 mm)
bottom / 16 in. (406 mm) top
● For concrete applications, the base of the arm
12
(STEP 3) must
remain centered in the wall plate
08
. Keep this in mind when
selecting the wall plate
08
location.
3/8 in.
(10 mm)
4 in. (101 mm)
002862.eps
NOTE: For assistance in
determining wall plate location, try our
HeightFinder
™
at SANUS.com

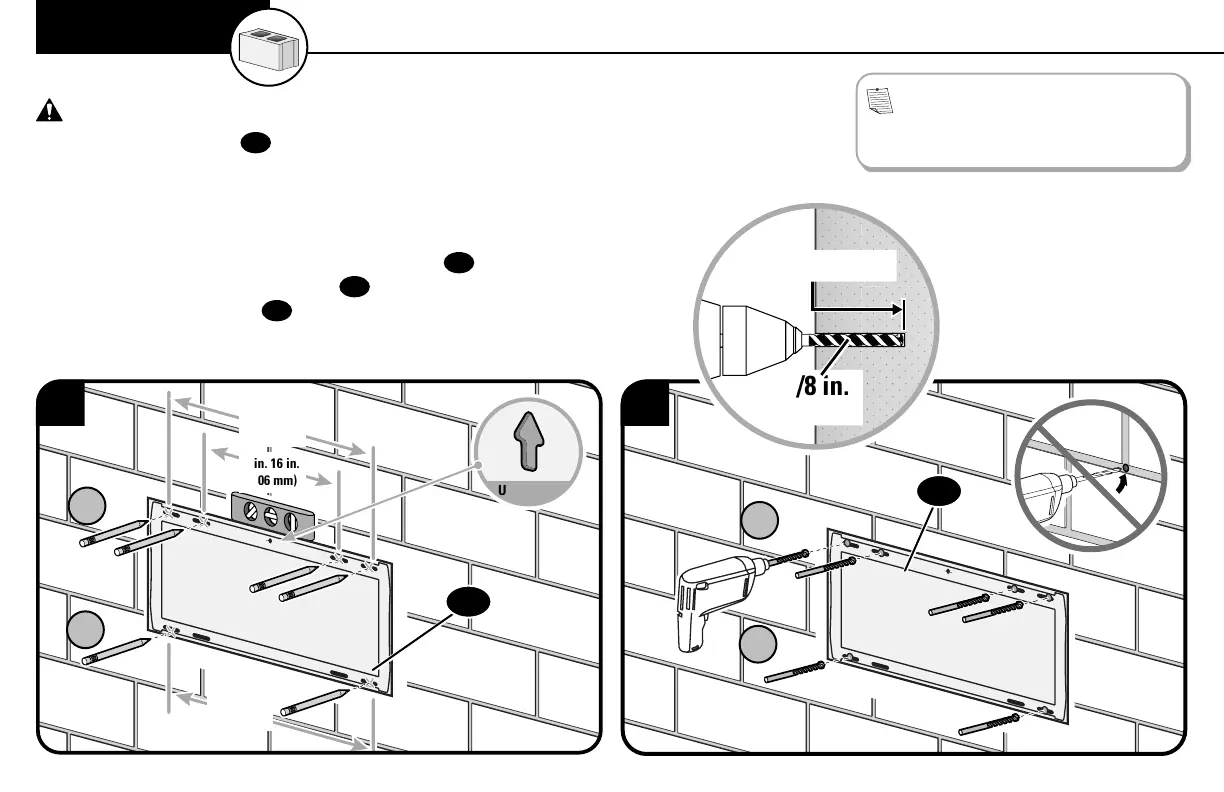

STEP 2B Solid Concrete or Concrete Block Installation
UP ARROW
07
4X
4X
2X
2X
07
