Sanus SLT4 - Step 2 B: Solid Concrete or Block Installation (Continued); Insert Anchors; Securely Tighten Wall Plate

14
14
C1
4X
CAUTION:
Be sure the anchors
C1
are seated flush with the
concrete surface.
CAUTION:

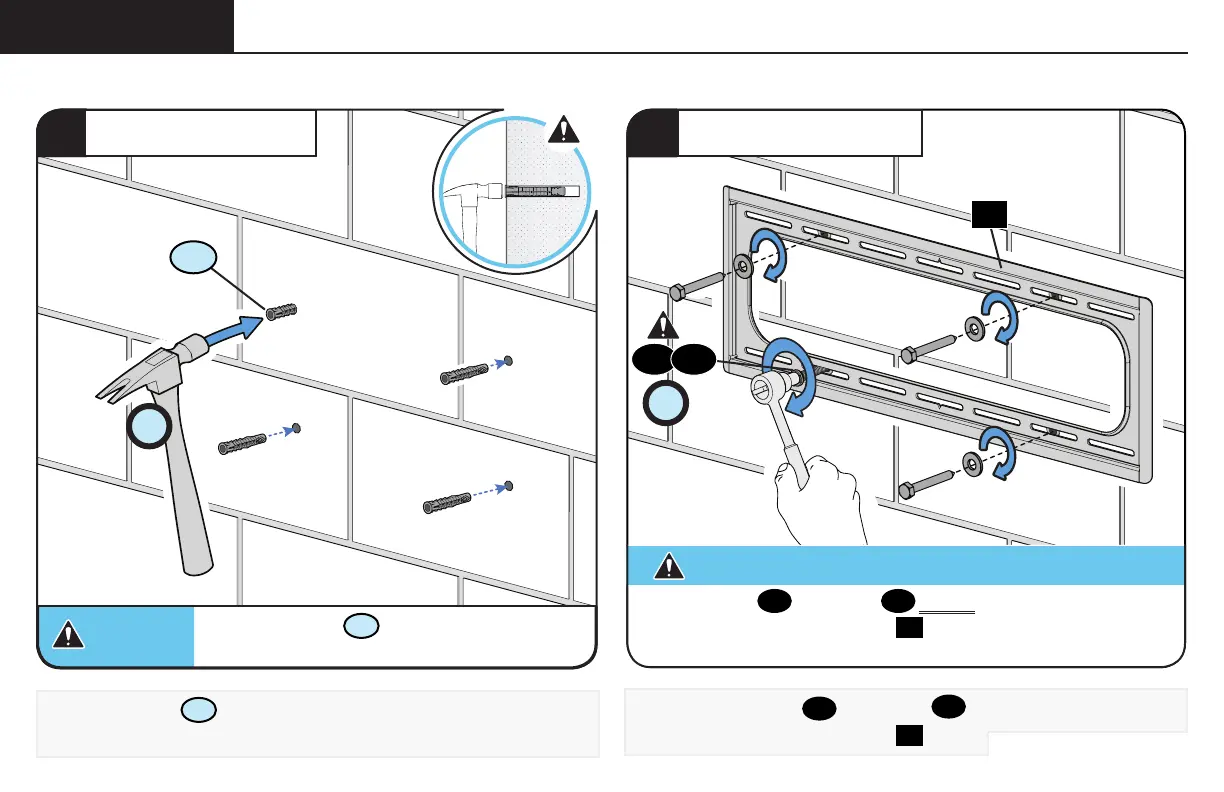

Insert four anchors
C1
.
34
INSERT ANCHORS
All four lag bolts
08
and washers
09
MUST BE firmly tightened to prevent
unwanted movement of the wall plate
07
.
Ensure the wall plate is securely
fastened to the wall before continuing on to the next step.
CAUTION: Avoid potential personal injury or property damage!
07
4X
5
SECURELY TIGHTEN
Install the four lag bolts
08
and washers
09
and firmly tighten until they
are pulled flush against the wall plate
07
.
Go to STEP 3 on PAGE 18
08 09
STEP 2B (continued)
