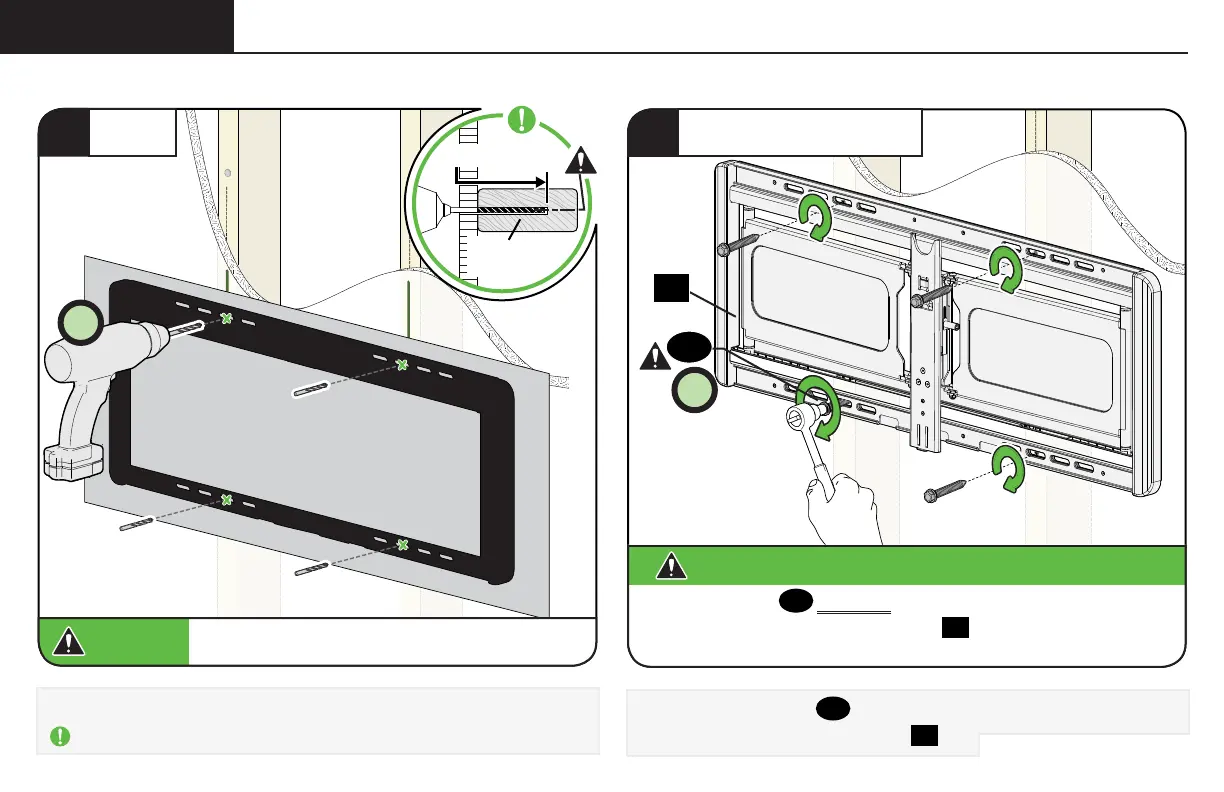

STEP 2A (continued)
Install the four lag bolts
17
and firmly tighten until they are pulled flush
against the wall plate/arm assembly
15
.
Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 ½ in. (8.9 cm).
6
DRILL
Go to STEP 3 on PAGE 18.
7
SECURELY TIGHTEN
All four lag bolts
17
MUST BE firmly tightened to prevent
unwanted movement of the wall plate
15
.
Ensure the wall plate is
securely fastened to the wall before continuing on to the next step.
CAUTION:
Avoid potential personal injury or property damage!
CAUTION:
Be sure you drill into the CENTER of the stud.
