15

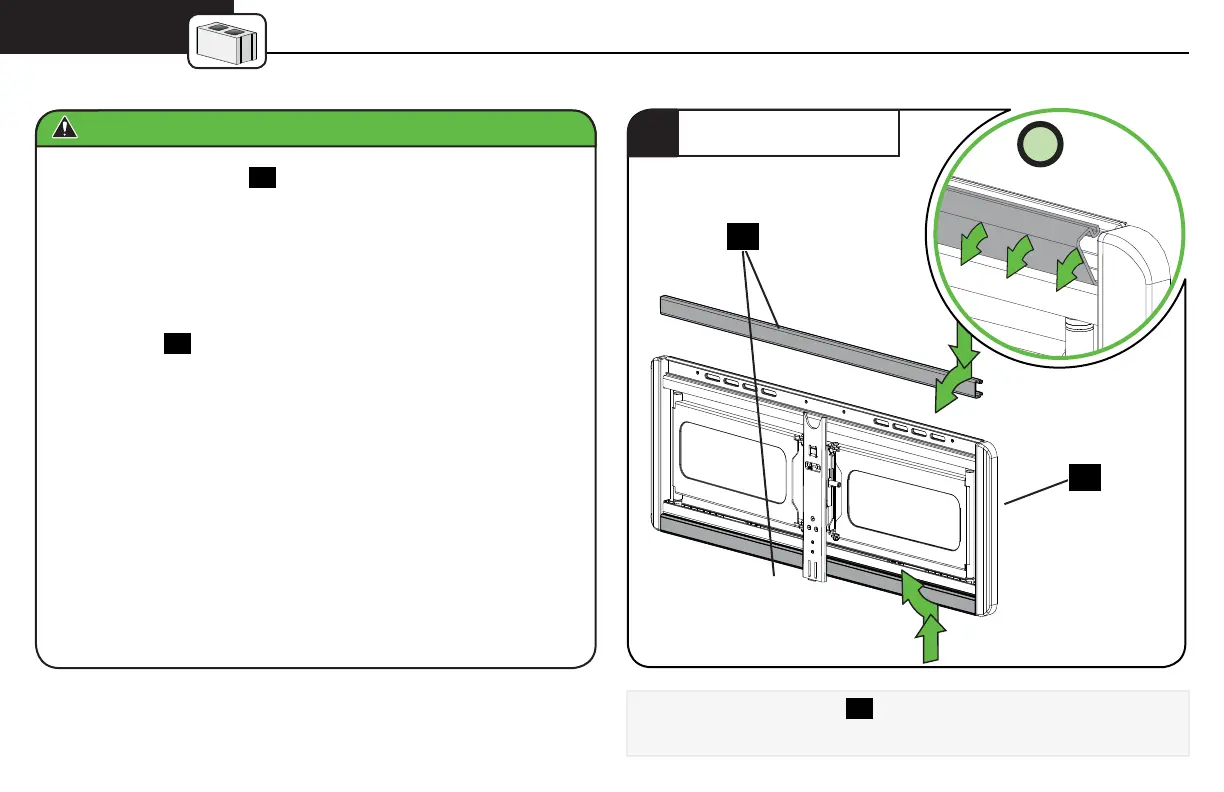

Solid Concrete or Concrete Block Installation
● Mount the wall plate
15
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (20.3 cm)
● Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
● Minimum horizontal space between fasteners: 24 in. (61.0 cm)
● For Concrete applications, the arm assembly of wall plate/arm
assembly
15
must remain centered in the wall plate. Keep
this in mind when selecting the wall plate location.
STEP 2B
CAUTION: Avoid potential personal injury or property damage!
2X
16
15
Remove wall plate covers
16
by pushing the outer edge inward,
while pulling the cover forward.
1
REMOVE COVERS
To Next Page
