6901-002034 09
3
Speci cations
Weight capacity-DO NOT EXCEED: 56.6 kg (125 lb) includes TV and any accessories
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose not explicitly speci ed by manufacturer.
The wall must be capable of supporting ve times the weight of the monitor and mount combined.
This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls. For information on how
to use this product with steel stud walls contact Customer Service and ask about the SSMK1 steel stud mounting kit.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service or call a quali ed contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
M4 / M5 M6 / M8
M8 x 40mm
M6 x 14mm
M6 x 40mm
M4 x 30mm
14mm
M4 x 12mm
M8 x 16mm
24mm
[01] x 1 [02] x 2 [03] x 1
[04] x 4 [05] x 4
[06] x 4
[07] x 4
[08] x 4
[09] x 4
[10] x 4
[11] x 4
[13] x 4
[14] x 4 [15] x 4 [16] x 4

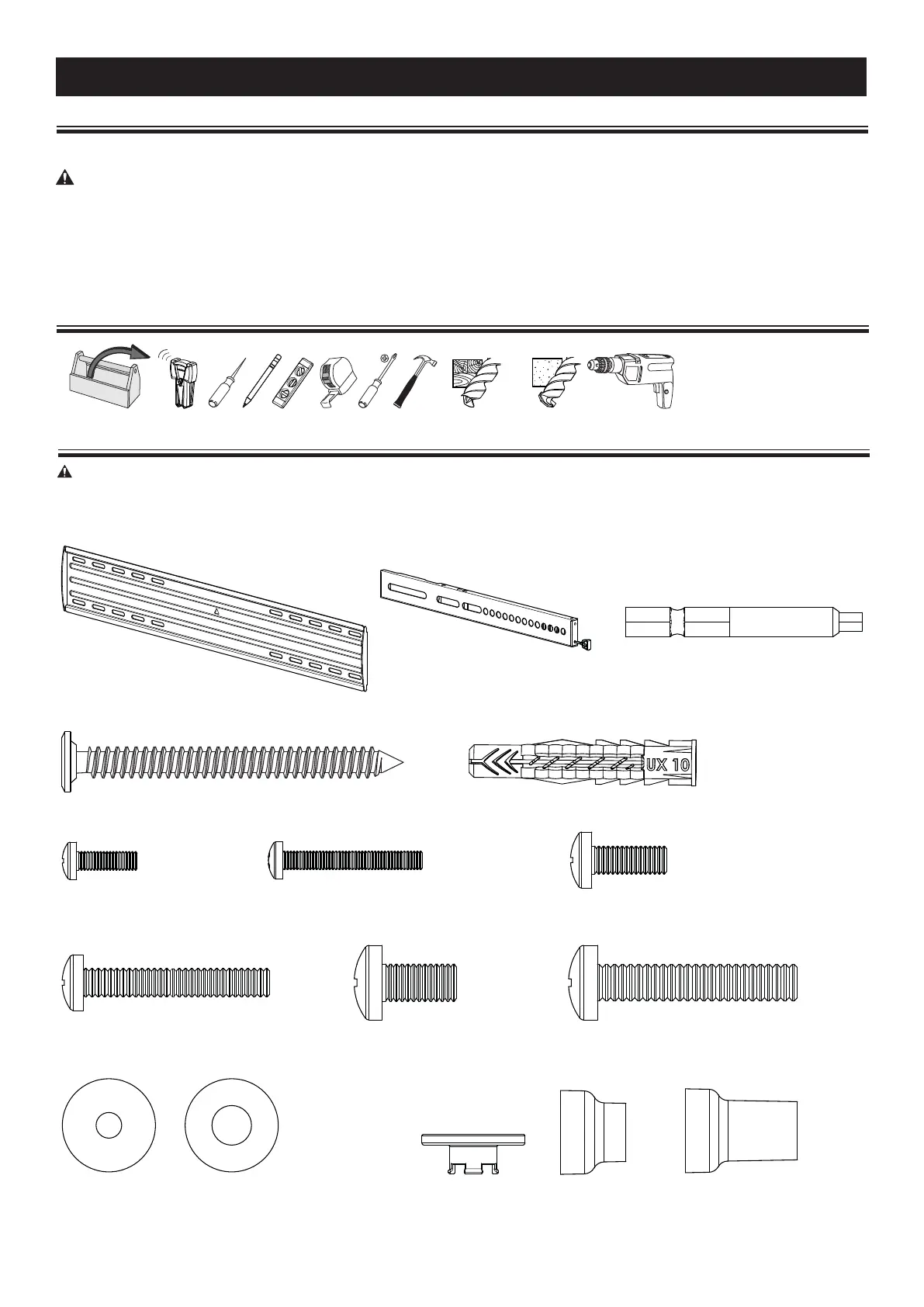

Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts! NOTE: M4, M6, or M8 describes the diameter, mm describes the
length of screws that are labeled M# X ##mm. Not all hardware included will be used.
10mm
(3/8 in.)
5mm
(3/16 in.)
Required Tools
English
M4
M7 x 70mm
[12] x 4
