Solid Concrete or Concrete Block

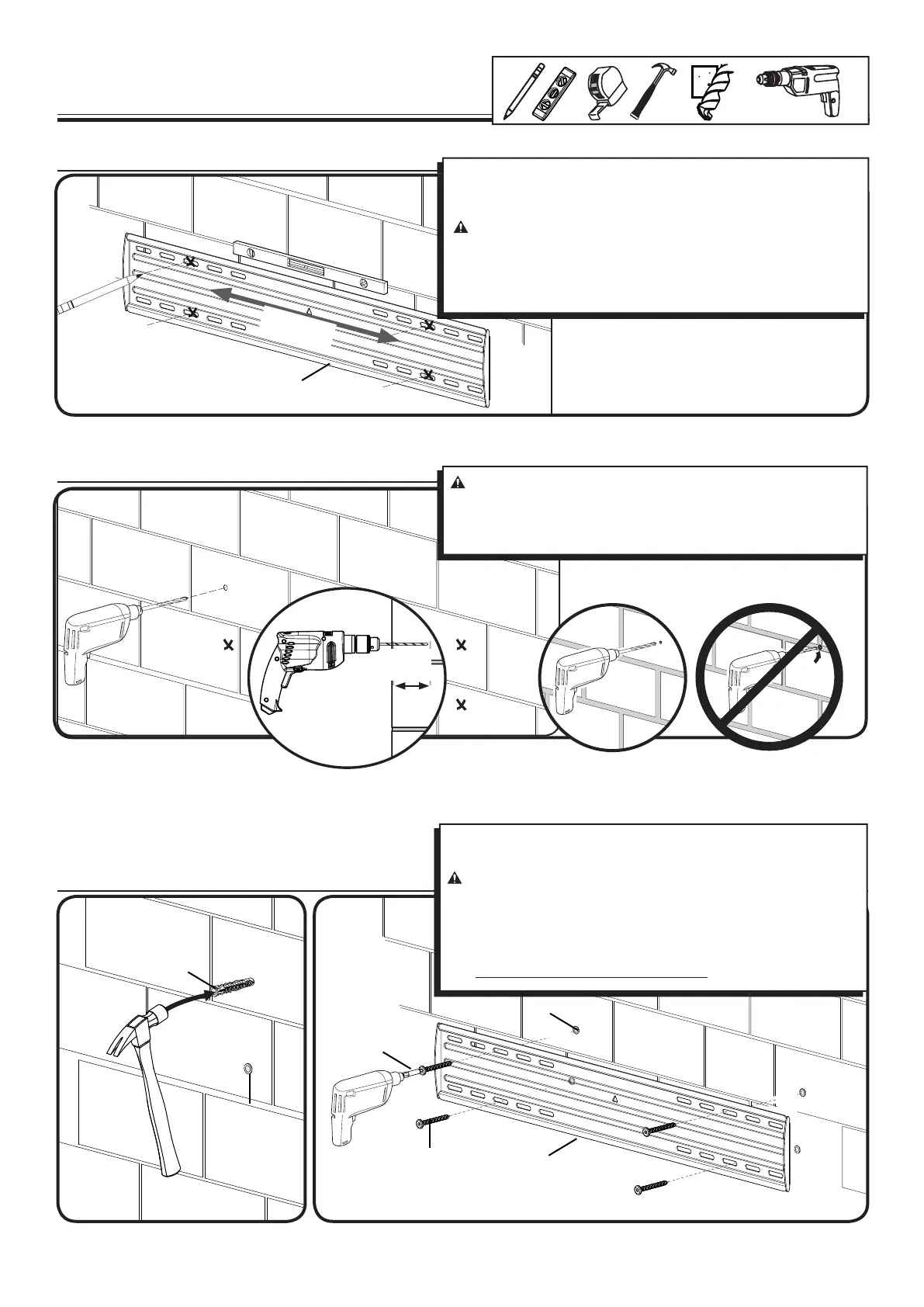

3 Mount the Wall Plate
3-1 Mark the wall
3-2 Drill pilot holes
3-3 Insert anchors and lag bolts
75mm
(3 in.)
For assistance in determining wall plate location, see Height Finder at
sanus.com.
Level the wall plate [01] and mark the hole locations.
CAUTION: Avoid potential injuries or property damage!
 Mount the wall plate [01] directly onto the concrete surface.
 Minimum solid concrete thickness: 20.3 cm (8 in.).
 Minimum concrete block size: 20.3 x 20.3 x 40.6 cm (8 x 8 x 16 in.).
 Minimum horizontal space between lag bolts: 41 cm (16 in.).
CAUTION: Avoid potential injuries or property damage!
 Pilot holes MUST be drilled to a depth of 75 mm (3 in.) using a 10
mm (3/8 in.) diameter drill bit.
 Never drill into the mortar between blocks.
Insert lag bolt anchors [05]. Then insert lag bolts [04] using a drill and
the allen driver bit [03].
CAUTION: Improper use could reduce the holding power of the
lag bolt. To avoid potential injuries or property damage:
 Be sure the anchors [05] seat  ush with the concrete surface.
 Tighten the lag bolts [04] only until they are pulled  rmly against
the wall plate [01].
 DO NOT over-tighten the lag bolts [04].
[05]
[05]
[03]
[04]
[01]
[05]
[01]
10 mm
(3/8 in.)
41 cm
(16 in.)
