Sanus VMA401 - Mounting to Concrete and Block Walls

6901-002141 05
7

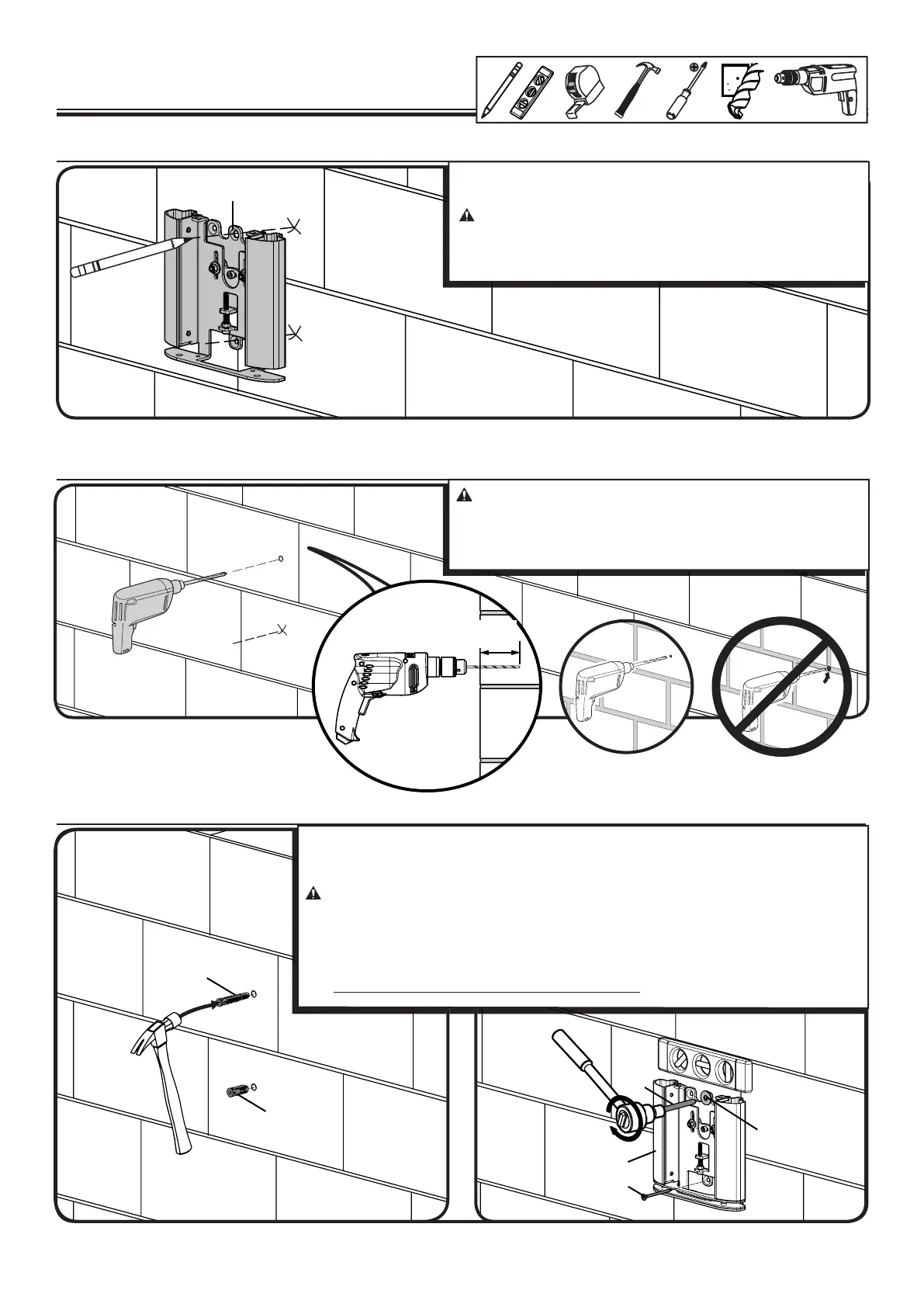

2 Mount the Wall Plate
Solid concrete or concrete block
2-1 Mark the wall
2-2 Drill pilot holes
2-3 Insert anchors and screws
10 mm
(3/8 in.)
CAUTION: Avoid potential injuries or property damage!
 Pilot holes MUST be drilled to a depth of 63.5 mm (2½ in.) using
a 10 mm (3/8 in.) diameter drill bit.
 Never drill into the mortar between blocks.
IMPORTANT: For stacking configurations, stack from the top down.
Level the wall plate [01] and mark the hole locations.
CAUTION: Avoid potential injuries or property damage!
 Mount the wall plate [01] directly onto the concrete surface.
 Minimum solid concrete thickness: 203mm (8 in.).
 Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.).
[07]
[11]
[01]
Insert anchors [11]/[07].
Use the lag bolt [04], washer [06], and anchor [11] to secure the top of the wall plate. Use the #8
screw [05] and anchor [07] to secure the bottom of the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid
potential injuries or property damage:
 Be sure the anchors [11]/[07] are seated flush with the concrete surface.
 Tighten the lag bolt [04] only until the washer [06] is pulled firmly against the wall plate
[01].
 DO NOT over-tighten the lag bolt [04] or screw [05].
[04]
[01]
[05]
[06]
63.5mm
(2½ in.)
