TV SUPPLIED SPACERS
Troubleshooting
TV Supplied
Spacer
TV Supplied
Spacer
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
a
b
FLAT BACK
ROUND BACK CABLES
– Too short will
not hold the TV.
– Too long will
damage the TV.
– Too short will
not hold the TV.
– Too long will
damage the TV.
Too Short
Too Short
Too Long
Too Long
Correct
Correct
If you are uncertain about your hardware selection,
contact Customer Service
03
NOTE: M8 screws can be used without the washer for extra thread engagement. NOTE: M8 screws can be used without the washer for extra thread engagement.

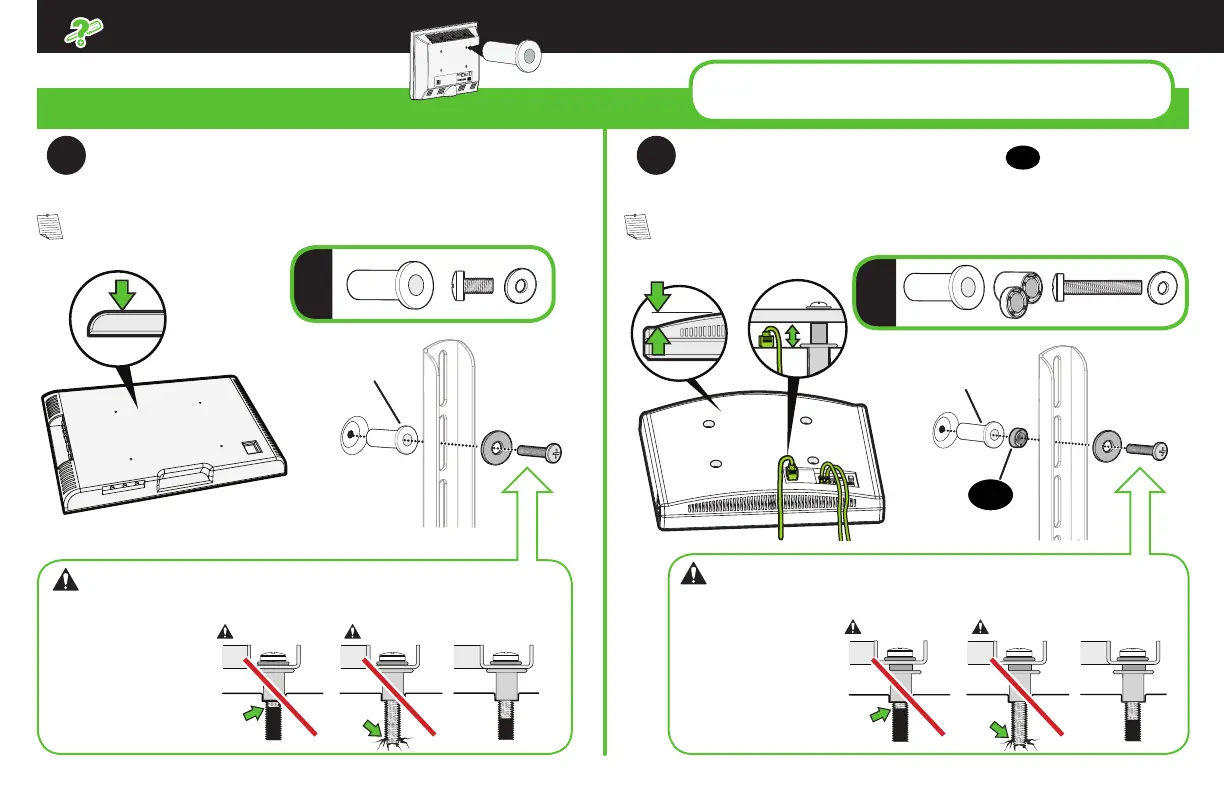

Use your TV supplied spacer for:
Use your TV supplied spacer and spacer
03
for:
• Flat Back TV [TV brackets lay flat on your TV]
• Flat Back TV with Extra Space Needed
[for deep inset holes or cable interference]
• Rounded or Irregular Back TV
[TV brackets NOT resting flat on your TV]
A B
