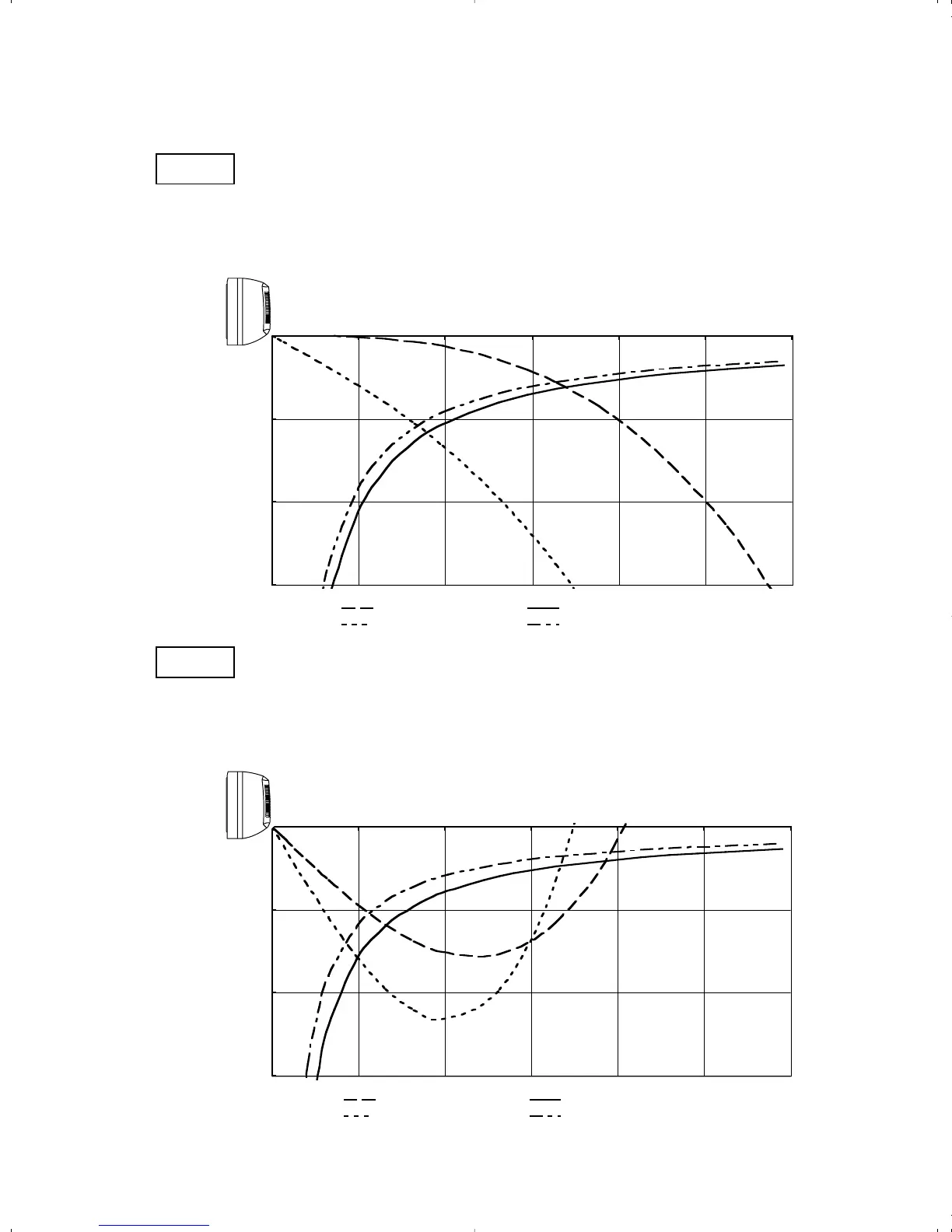

Horizontal distance (ft.)
Axis air velocity (ft./sec.) Vertical distance (ft.)
Room air temp. : 70¡F (21.1¡C)
Fan speed : High
Heating
Horizontal distance (ft.)
Axis air velocity (ft./sec.) Vertical distance (ft.)
Room air temp. : 80¡F (26.7¡C)
Fan speed : High
Cooling
0
5
10
15
0 5 10 15 20 25 30
: Flap angle 0° , : Axis air velocity 0°
: Flap angle 30°, : Axis air velocity 30°
0
5
10
15
0 5 10 15 20 25 30
: Flap angle 45° , : Axis air velocity 45°
: Flap angle 60° , : Axis air velocity 60°
(2) Indoor Unit KHS1251
