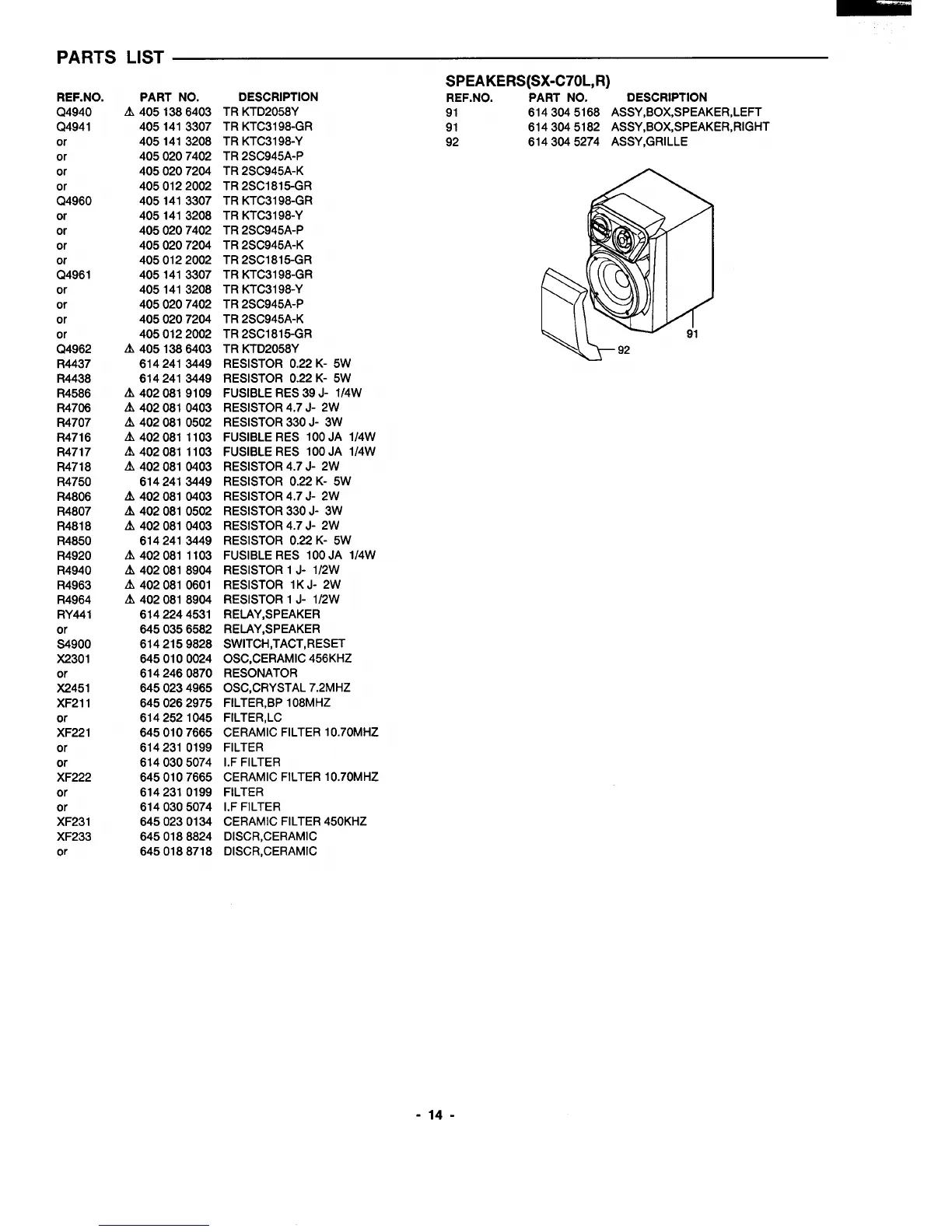

PARTS LIST
SPEAKERS(SX-C70L, R)
REF. NO.
Q4940
Q4941
or
or
or
or
Q4960
or
or
or
or
Q4961
or
or
or
or
Q4962
R4437
R4438
R4586
R4706
R4707
R4716
R4717
R4718
R4750
R4806
R4807
R4818
R4850
R4920
R4940
R4963
R4964
RY441
or
S4900
X2301
or
X2451
XF211
or
XF221
or
or
XF222
or
or
XF231
XF233
Or
PART NO.
A 4051386403
4051413307
4051413208
4050207402
4050207204
4050122002
4051413307
4051413208
4050207402
4050207204
4050122002
4051413307
4051413208
4050207402
4050207204
4050122002
A 4051386403
6142413449
6142413449
A 4020819109
A 4020810403
A 4020810502
A402081 1103
A 4020811103
A 4020810403
6142413449
A 4020810403
A 4020810502
A 4020810403
6142413449
A402O8111O3
A 4020818904
A 4020810601
A 4020818904
6142244531
6450356582
6142159828
6450100024
6142460870
6450234965
6450262975
6142521045
6450107665
6142310199
6140305074
6450107665
6142310199
6140305074
6450230134
6450188824
6450188718
DESCRIPTION
REF.NO.
PART NO.
TRKTD2058Y
91
6143045168
TRKTC3198-GR
91
6143045182
TRKTC3198-Y
92
6143045274
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTC3198-GR
TRKTC3198-Y
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTC3198-GR
TRKTC3198-Y
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTD2058Y
RESISTOR 0.22K- 5W
RESISTOR 0.22K- 5W
FUSIBLERES39J- l/4w
RESISTOR4.7J- 2W
RESISTOR330J- 3W
FUSIBLERES 100JA l/4W
FUSIBLERES 100JA l/4W
RESISTOR 4.7 J- 2W
RESISTOR 0.22 K- 5W
RESISTOR 4.7 J- 2W
RESISTOR 330 J- 3W
RESISTOR 4.7 J- 2W
RESISTOR 0.22 K- 5W
FUSIBLE RES 100 JA l/4W
RESISTOR 1 J- l/2W
RESISTOR 1K J- 2W
RESISTOR 1 J- l/2W
RELAY, SPEAKER
RELAY, SPEAKER
SWITCH,TACT,RESET
OSC,CERAMIC 456 KHZ
RESONATOR
OSC,CRYSTAL 7.2 MHZ
FILTER,BP 108MHZ
FILTER,LC
CERAMIC FILTER 10.70MHZ
FILTER
I.F FILTER
CERAMIC FILTER 10.70MHZ
FILTER
I.F FILTER
CERAMIC FILTER 450 KHZ
DISCR,CERAMIC
DISCR,CERAMIC
DESCRIPTION
ASSY,BOX,SPEAKER, LEFT
ASSY,BOX,SPEAKER, RIGHT
ASSY,GRILLE
w“
