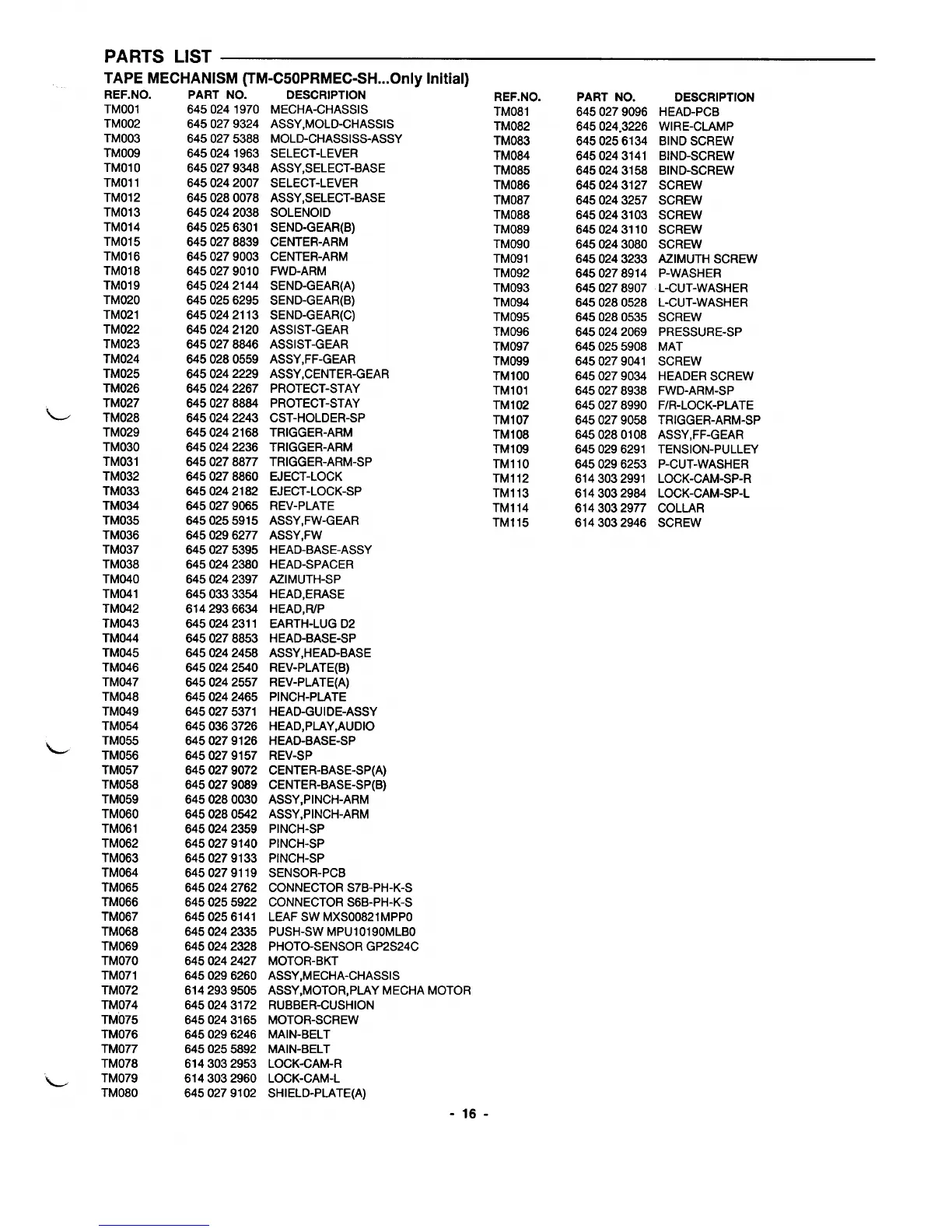

Sanyo DC-C70 - Parts List; Tape Mechanism

PARTS LIST
TAPE MECHANISM (TM-C50PRMEC-SH... Only Initiai)
REF. NO.
TMOO1
TMO02
TMO03
TMO09
TMO1O
TMO11
TM012
TM013
TM014
TM015
TM016
TMO18
TM019
TM020
TM021
TM022
TM023
TM024
TM025
TM026
TM027
TM028
TM029
TM030
TM031
TM032
TM033
TM034
TM035
TM036
TM037
TM038
TM040
TM041
TM042
TM043
TM044
TM045
TM046
TM047
TM048
TM049
TM054
TM055
TM056
TM057
TM058
TM059
TM060
TM061
TM062
TM063
TM064
TM065
TM066
TM067
TM068
TM069
TM070
TM071
TM072
TM074
TM075
TM076
TM077
TM078
L
TM079
TM080
PART NO. DESCRIPTION
6450241970 MECHA-CHASSIS
6450279324 ASSY,MOLD-CHASSIS
6450275388 MOLD-CHASSISS-ASSY
6450241963 SELECT-LEVER
6450279348 ASSY,SELECT-BASE
6450242007 SELECT-LEVER
6450280078 ASSY,SELECT-BASE
6450242038 SOLENOID
6450256301 SEND-GEAR(B)
6450278839 CENTER-ARM
6450279003 CENTER-ARM
6450279010 FWD-ARM
6450242144 SEND-GEAR(A)
6450256295 SEND-GEAR(B)
6450242113 SEND-GEAR(C)
6450242120 ASSIST-GEAR
6450278846 ASSIST-GEAR
6450280559 ASSY,FF-GEAR
6450242229 ASSY,CENTER-GEAR
6450242267 PROTECT-STAY
6450278884 PROTECT-STAY
6450242243 CST-HOLDER-SP
8450242168 TRIGGER-ARM
6450242236 TRIGGER-ARM
6450278877 TRIGGER-ARM-SP
6450278860 EJECT-LOCK
6450242182 EJECT-LOCK-SP
6450279085 REV-PLATE
6450255915 ASSY,FW-GEAR
6450296277 ASSY,FW
6450275395 HEAD-BASE-ASSY
6450242380 HEAD-SPACER
6450242397 AZIMUTH-SP
6450333354 HEAD, ERASE
6142936634 HEAD,FUP
6450242311 EARTH-LUG D2
6450278853 HEAD-BASE-SP
6450242458 ASSY,HEAD-BASE
6450242540 REV-PLATE(B)
6450242557 REV-PLATE(A)
6450242465 PINCH-PLATE
6450275371 HEAD-GUI DE-ASSY
6450383726 HEAD, PLAY,AUDIO
6450279126 HEAD-BASE-SP
6450279157 REV-SP
6450279072 CENTER-BASE-SP(A)
8450279089 CENTER-BASE-SP(B)
6450280030 ASSY,PINCH-ARM
6450280542 ASSY,PINCH-ARM
6450242359 PINCH-SP
6450279140 PINCH-SP
6450279133 PINCH-SP
6450279119 SENSOR-PCB
6450242762 CONNECTOR S7B-PH-K-S
6450255922 CONNECTOR S6B-PH-K-S
6450256141 LEAF SW MXSO0821 MPPO
6450242335 PUSH-SW MPU101 90MLB0
6450242328 PHOTO-SENSOR GP2S24C
6450242427 MOTOR-BKT
6450296260 ASSY,MECHA-CHASSIS
6142939505 ASSY,MOTOR,PLAY MECHA
6450243172 RUBBER-CUSHION
6450243165 MOTOR-SCREW
6450296246 MAIN-BELT
6450255892 MAIN-BELT
6143032953 LOCK-CAM-R
6143032960 LOCK-CAM-L
6450279102 SHIELD-PLATE(A)
REF. NO.
TM081
TM082
TM083
TM084
TM085
TM086
TM087
TM088
TM089
TM090
TM091
TM092
TM093
TM094
TM095
TM096
TM097
TM099
TM100
TM101
TM102
TM107
TM108
TM109
TM11O
TM112
TM113
TM114
TM115
PART NO.
DESCRIPTION
6450279096 HEAD-PCB
645024.3226 WIRE-CLAMP
6450256134 BIND SCREW
6450243141 BIND-SCREW
6450243158 BIND-SCREW
6450243127 SCREW
6450243257 SCREW
6450243103 SCREW
6450243110 SCREW
6450243080 SCREW
6450243233 AZIMUTH SCREW
6450278914 P-WASHER
6450278907 L-CUT-WASHER
6450280528 L-CUT-WASHER
6450280535 SCREW
6450242069 PRESSURE-SP
6450255908 MAT
6450279041 SCREW
6450279034 HEADER SCREW
6450278938 FWD-ARM-SP
6450278990 F/R-LOCK-PLATE
6450279058 TRIGGER-ARM-SP
6450280108 ASSY,FF-GEAR
6450296291 TENSION-PULLEY
6450296253 P-CUT-WASHER
6143032991 LOCK-CAM-SP-R
6143032984 LOCK-CAM-SP-L
6143032977 COLLAR
6143032946 SCREW
MOTOR
-16-
