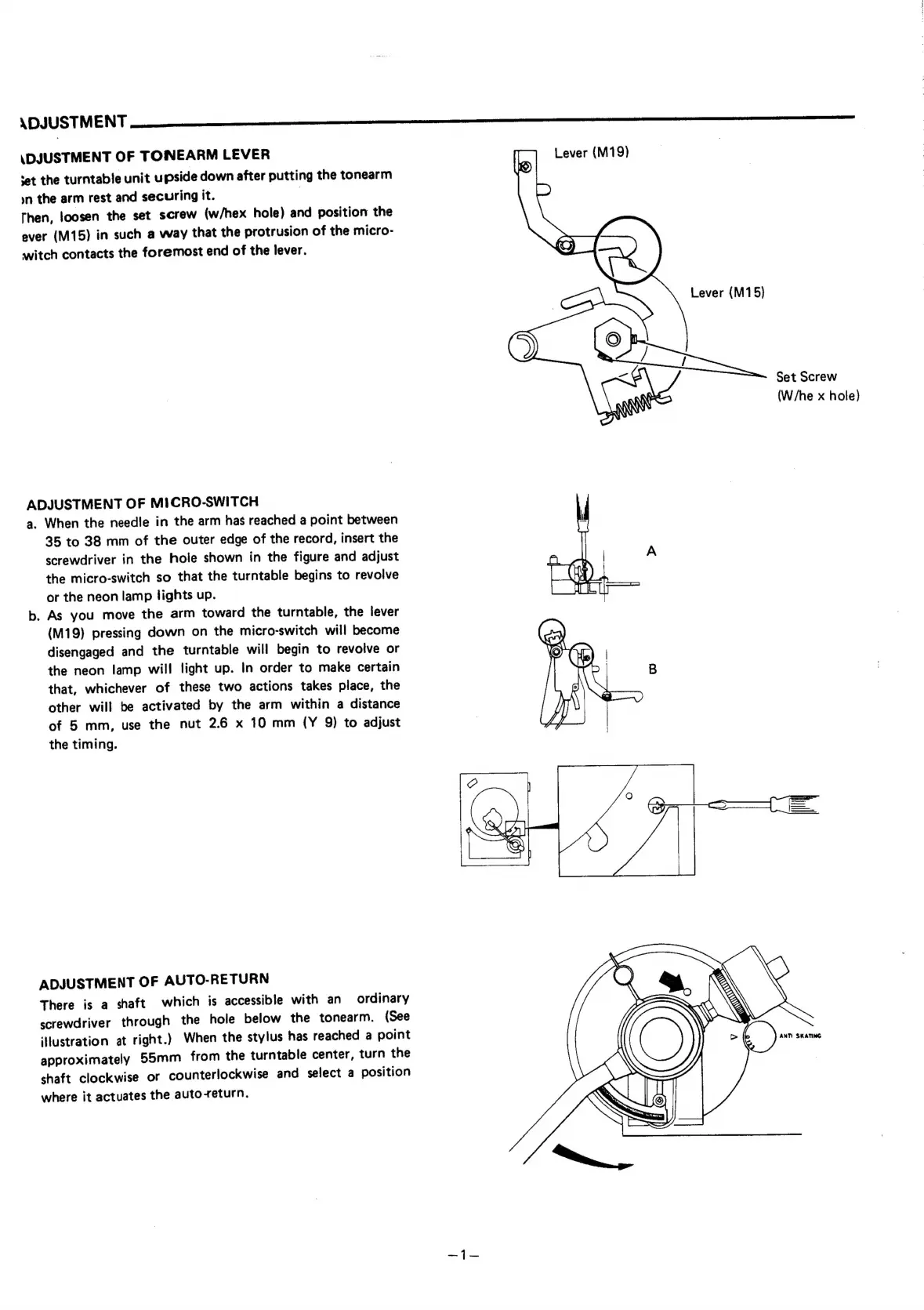

\DJUSTMENT
\DJUSTMENT
OF
TONEARM
LEVER
sot
the
turntable
unit
upside
down
after
putting
the
tonearm
yn
the
arm
rest
and
securing
it.
|
Then,
loosen
the
set
screw
(w/hex
hole)
and
position
the
ever
(M15)
in
such
a
way
that
the
protrusion
of
the
micro-
witch
contacts
the
foremost
end
of
the
lever.
ADJUSTMENT
OF
MICRO-SWITCH
a.
When
the
needle
in
the
arm
has
reached
a
point
between
35
to
38
mm
of
the
outer
edge
of
the
record,
insert
the
screwdriver
in
the
hole
shown
in
the
figure
and
adjust
the
micro-switch
so
that
the
turntable
begins
to
revolve
or
the
neon
lamp
lights
up.
b.
As
you
move
the
arm
toward
the
turntable,
the
lever
(M19)
pressing
down
on
the
micro-switch
will
become
disengaged
and
the
turntable
will
begin
to
revolve
or
the
neon
lamp
will
light
up.
In
order
to
make
certain
that,
whichever
of
these
two
actions
takes
place,
the
other
will
be
activated
by
the
arm
within
a
distance
of
5
mm,
use
the
nut
2.6
x
10
mm
(Y
9)
to
adjust
the
timing.
ADJUSTMENT
OF
AUTO-RETURN
There
is
a
shaft
which
is
accessible
with
an
ordinary
screwdriver
through
the
hole
below
the
tonearm.
(See
‘4lustration
at
right.)
When
the
stylus
has
reached
a
point
approximately
55mm
from
the
turntable
center,
turn
the
shaft
clockwise
or
counterlockwise
and
select
a
position
where
it
actuates
the
auto-return.
Lever (M15)
Set Screw
(W/he x hole)
e)
ANT! SKATING
