Sanyo expert TP-1012 User Manual

PARTS LIST
MECHANISM
141-0-311T-28600
141-0-581T-08900
141-0-731T-53 200
141-2-457T-23 200
141-2-855T-30000
141-0-747T-04900
141-0-742T-06500
141-2-453T-30701
141-0-310T-19500
4-527T-11501
141-2-853T-53400
141-2-853T-51 100
141-2-457T-23100
141-2-742T -06 700
141-0-742T-06102
141-2-753T-52600
141-2-457T-23101
141-2-851T-73500
141-2-742T-22300
141-2-457T-23000
141-0-174T-06120
141-2-464T-25800
ARM
EXPLODED
VIEW
Description
Chassis Assembly
Gear Assembly
Slide Assembly
Special Washer, Main Gear (M2) &
Lever (M14) Mtg.
Coil Spring, Main Slide (M3) restore
Bracket Lever Assembly
Lever Assembly
Washer, GNW 5.2x8x0.25mm
Bracket Assembly Gear (M2) Mtg.
Brushless Motor Assembly
Plate Spring, Stand (M21) Fixer
Plate Spring, Lift Up
Special Washer, E3
Lever, Trip Lever
Lever Assembly, Arm Lever
Shaft, Auto Return Adjust
Special Washer, Shaft (M16) Mtg.
Coil Spring, Arm Lever (M15) Restore
Lever, Switch Operator
Special Washer, E2
Stand Assembly, Arm Stand
Fixer, Mechanism Chassis (M1) Mtg.
a Oa on eeiin |
SF
\—— — —2
ZB N24-127
— ee oe ot et ot ow ws — () = od od os oe
Part No.
SCREW MOUNTING
Pan Head Screw, 2 x 20mm
Pan Head Screw, 2.6 x 6mm
Pan Head Screw, 3 x 6mm
Pan Head Screw, 3 x 8mm
Pan Head Tapping Screw 2.6 x 6mm
Pan Head Tapping Screw 2.6 x 8mm
(Rest Assy. (M18) Mtg.)
Pan Head Tapping Screw 3 x 6mm
Pan Head Tapping Screw 3 x 8mm
Pan Head Tapping Screw 3 x 10mm
Pan Head Tapping Screw 3 x 14mm
Pan Head Tapping Screw 3.5 x 8mm
Pan Head Tapping Screw with Washer
3 x 8mm
Pan Head Tapping Screw with Washer
3 x 10mm
Pan Head Tapping Screw with Washer
3 x 12mm
Pan Head Tapping Screw with Washer
3 x 14mm
Flat Head Screw 3 x 10mm
Flat Head Screw 4 x 12mm
Headless Screw 3 x 6mm
(Rest Assy. (M18) Mtg.)
Headless Screw 4 x 6mm
Headless Screw with Hexagon Holde
3 x 4mm
Self Tapping Screw 2.6 x 10mm
Nut 2.6mm
Nut 3mm
Spring Washer 2.6mm
Washer 2.6mm
Washer 3mm

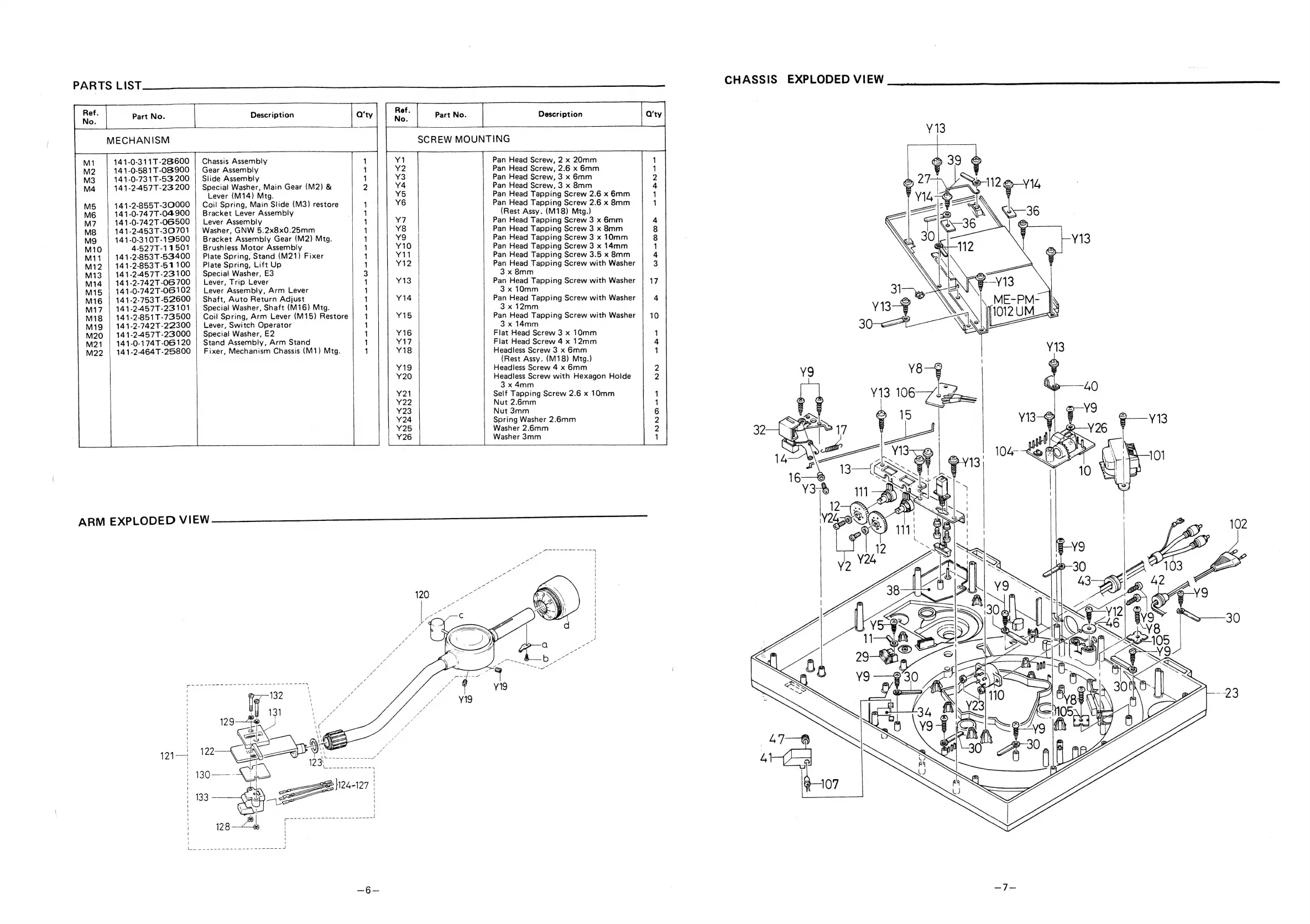

CHASSIS EXPLODED VIEW

Sanyo expert TP-1012 Specifications

General

Brand	Sanyo
Model	expert TP-1012
Category	Turntable
Language	English
