External Audio
Equipment
Video Source (example)
DVD Player
Audio cable
(RCA X 2)
R L
C
R/PR,CB/PB, Y
Component Video Source
(example)
DVD video equipment.
(such as DVD player or high-definition
TV source)
DVD
(RCA X 3)

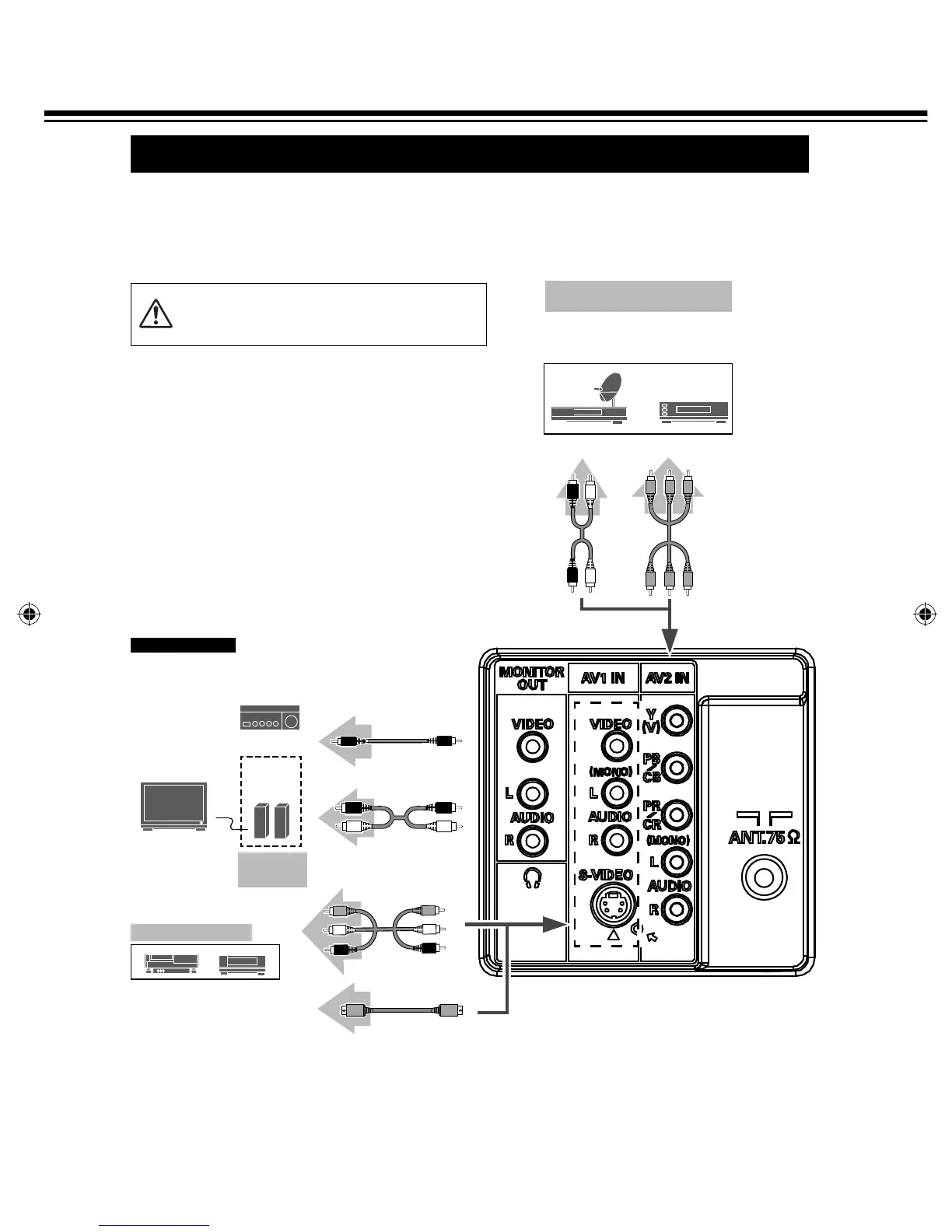

CONNECTING VIDEO EQUIPMENT
Cables used for connection (These cables are not supplied with this LCD TV.)
● Video Cable(RCA X1), S-Video Cable, Audio Cable (RCA X2) : Video 1 or Video 2
● Video Cable(RCA X3), Audio Cable (RCA X2) : DVD (Component Video)
● Video Cable(RCA X1), Audio Cable (RCA X2) : Monitor Output
● HDMI Cable: HDMI Input
NOTE : When connecting the cable, AC Power Cords
of both LCD TV and external equipment should
be disconnected from AC outlet.
External
monitor
Composite Video
and Audio Output
Audio
Speaker
(stereo)
Audio Amplifier
Note:
Video (RCA) output is for
TV, AV or S-VIDEO only.
MONITOR OUT
Video cable
(RCA x1)
Audio cable
(RCA x 2)
Video and Audio
cable (RCA x 3)
Video Cassette
Recorder
Video Disc
Player
CONNECTING LCD TV
S-Video
S-Video
Cable
R , L , V
S-Video
output
LCD-19K40(R-S-W)ENG.indd 12LCD-19K40(R-S-W)ENG.indd 12 4/13/2010 1:35:53 PM4/13/2010 1:35:53 PM
Note:
When connect to HDMI input terminal, it needs few seconds to display picture.
