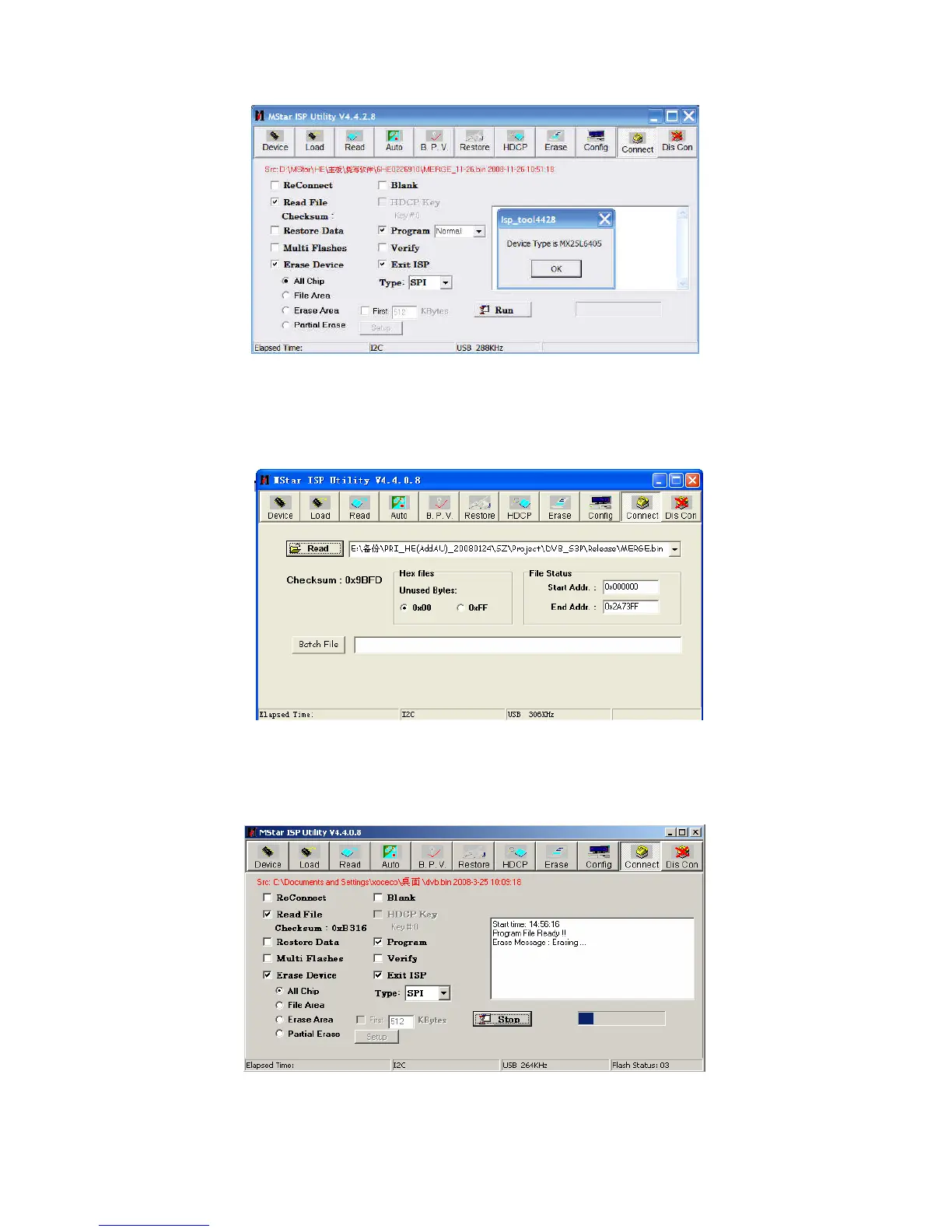

Fig. 16 Successful connection to device MX25L64
If the connection is failed, press the first menu “Device” and select its option “MX25L64”, then
press menu “Connect” again;
3） Press menu “Read”, select the burning file, such as “MERGE.bin”, please refer to Fig. 17
Fig. 17 Burning file selection
4） Press menu “Auto”, cross options “All chip” and “program”, please refer option switches to Fig.
18;
Fig. 18 Backup option switches
