Table 5 Factory software burned instructions
No. Part No. Part Type
Software
function
Burned
before SMT
Burning method
N103 5272564002
IC_EN25Q64-104HIP
FLASH Yes
Use ALL11 with write-protect, refer
to Note 1 in detail.
N106 5272404002 AT24C04 HDCP KEY Yes ALL11
N301 5272402002 AT24C02 HDMI EDID Yes ALL11
N316 5272402002 AT24C02 HDMI EDID Yes ALL11
N305 5272402002 AT24C02 VGA EDID Yes ALL11
Note 1: Method of write-protect setup: enter into burning interface of ALL-100, cross option
“Config”, press item “config Setting”, set option “Protect” as “All Protect”; make sure that
option “Config” must be crossed before burning software and write-protect must be reset
after ALL-100 burning software opened every time.
Note 2: Method of burning and upgrading software by using ISP burning device:
Main board upgrade: Connect 4-core line of ISP burning device to Debug port (X107) of main board;
Unit upgrade: Connect both VGA ports of ISP burning device and main board, enter into factory menu
and set item “ISP Mode” as “ON”;
1） Using Mstar online burning device (V4.4.2.0 or higher versions), enter into menu “Device”, cross
option “WP Pin pull to high during ISP” to ensure that hardware write-protect of Flash is
removed and erasing process is normal, please refer setup to Fig. 15;

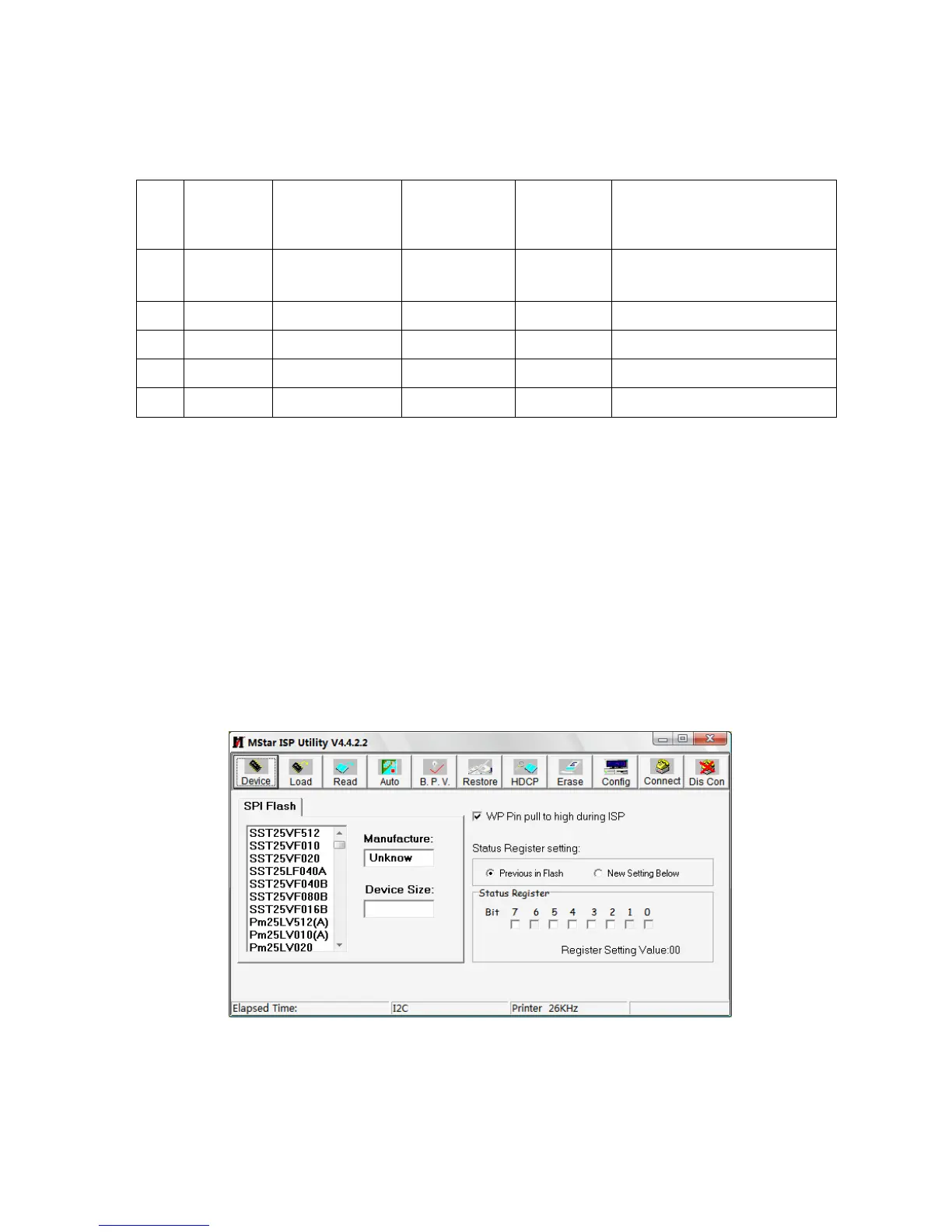

Fig. 15 Write-protect setup
2） Press menu “Connect”, a dialog box “Device Type is MX25L64” will pop up, that is, connection
has been successful, please refer to Fig. 16;
Method of software upgrading instructions
To Next Page
