27
6. WT6702F

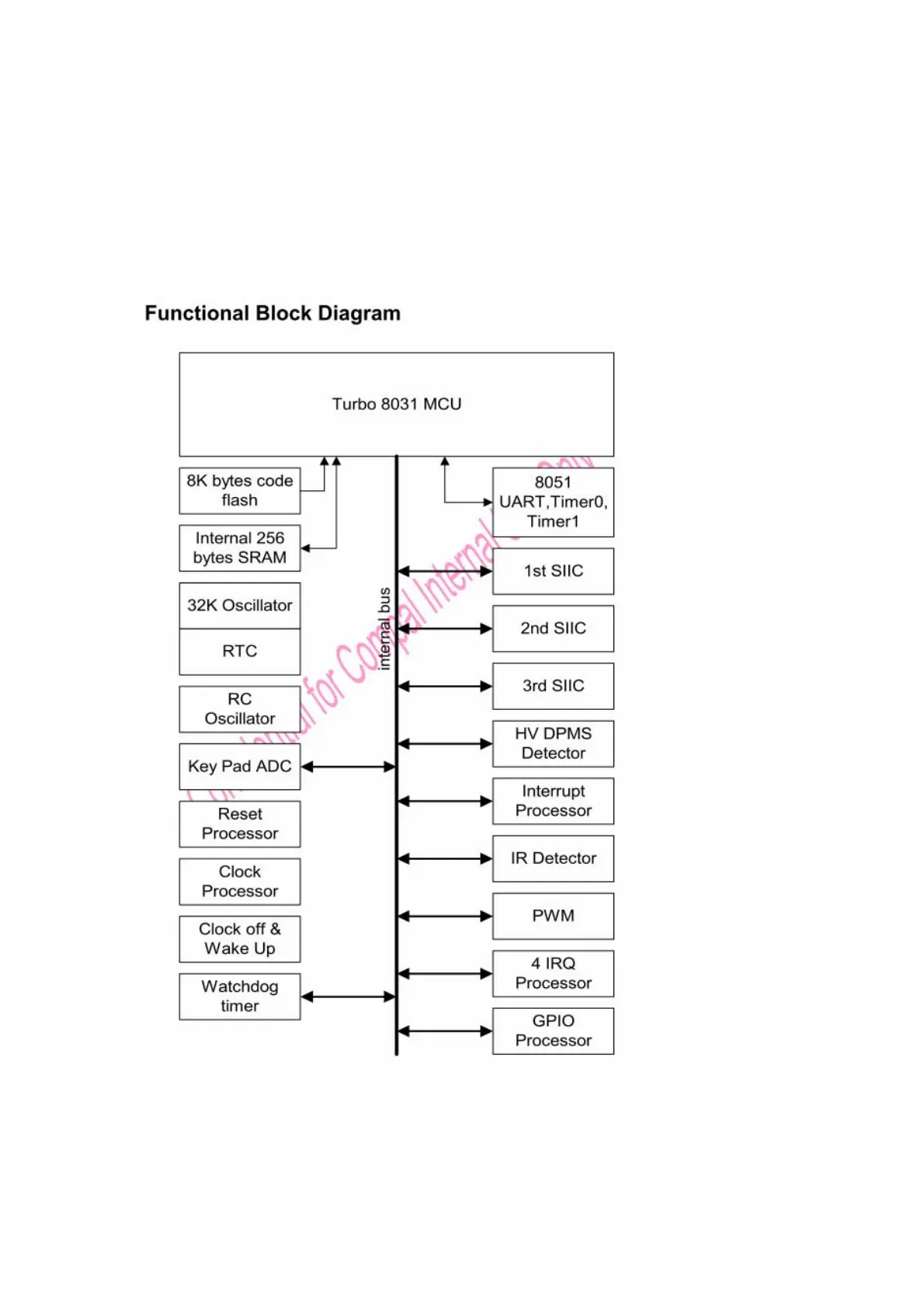

The WT6702F is a microcontroller for system power manager with 1)Turbo 8051
compatible(3T) CPU2) 8K bytes flash memory, 3)256 bytes SRAM, 4) 2
PWMs,5)DPMS detector, 6)8051 2 timers and UART,7)Three Slave IIC interface,
8) 4 Channel 8-bit A/D converter, 9) Real Time Clock, 10) watch-dog timer, 11)
Embedded ISP, 12)Power down mode, 12) Embedded ICE mode.
