HDMI 1HDMI 2
D-SUB
upgrade only
USB
HDMI 1HDMI 2
D-SUB
upgrade only
USB
Connections (Continued)
12

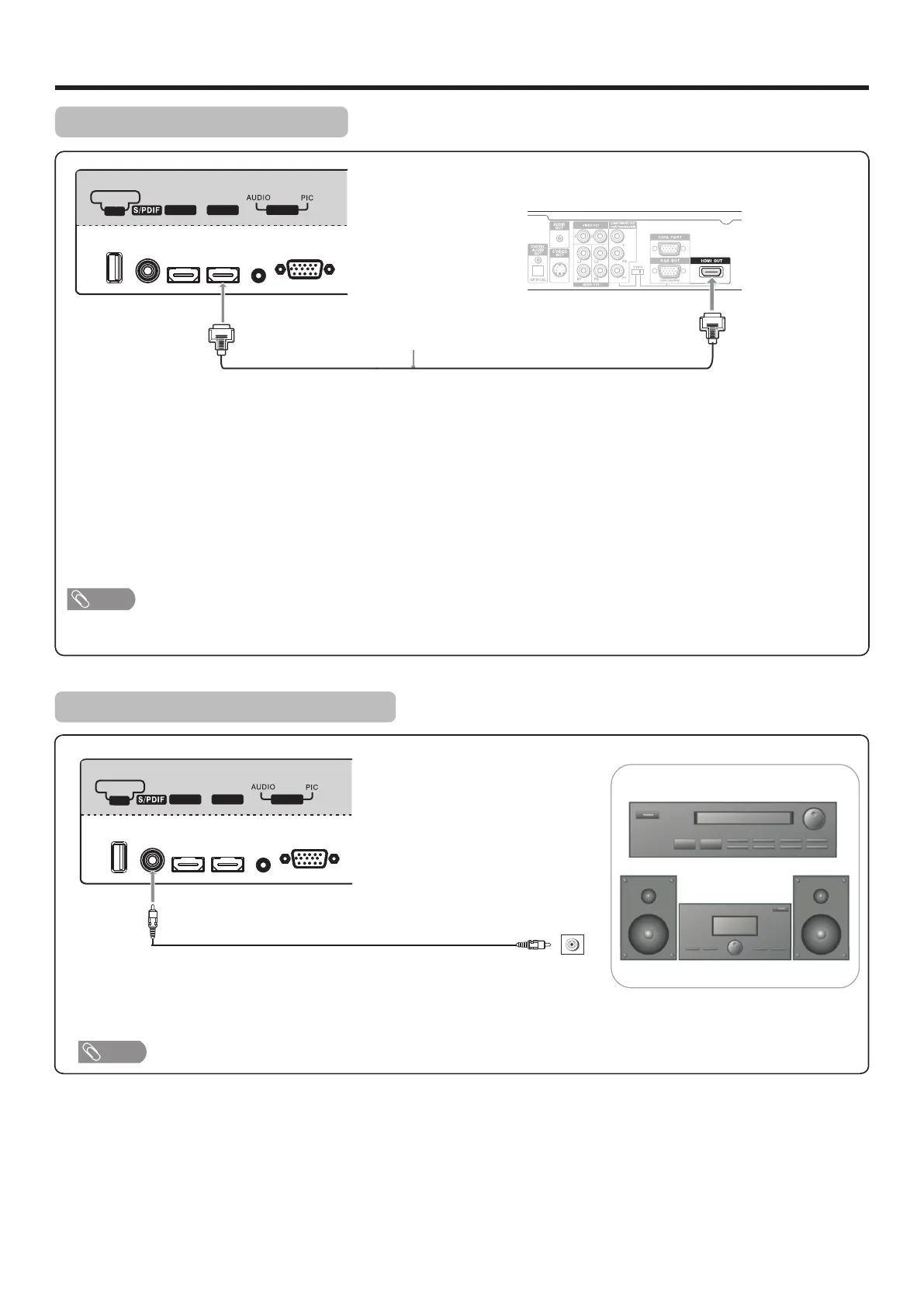

Connecting an HDMI device
Connect the HDMI cable between the HDMI1, HDMI2 or HDMI3 interface on the unit and HDMI output on the device.
To play from the device using HDMI:
How to connect a device using HDMI Connection:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5or6to select HDMI1/HDMI2/HDMI3 correspondingly, then press OK to confirm.
3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.
If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio
cable to the D-SUB AUDIO IN jack on the TV rear.
Note
HDMI cable
HDMI output
Equipment with
TV REAR
For a full Home Theater sound experience, you must connect your Hi-Fi or
Audio processor to the S/PDIF OUT(Coaxial) terminal on the TV rear.
The S/PDIF OUT jack is available only when a digital TV channel is received.
Audio Processor
HIFi System
or
S/PDIF IN
(Coaxial)
Coaxial audio cable
Connecting Digital Coaxial Audio
Note
TV REAR
To Next Page
