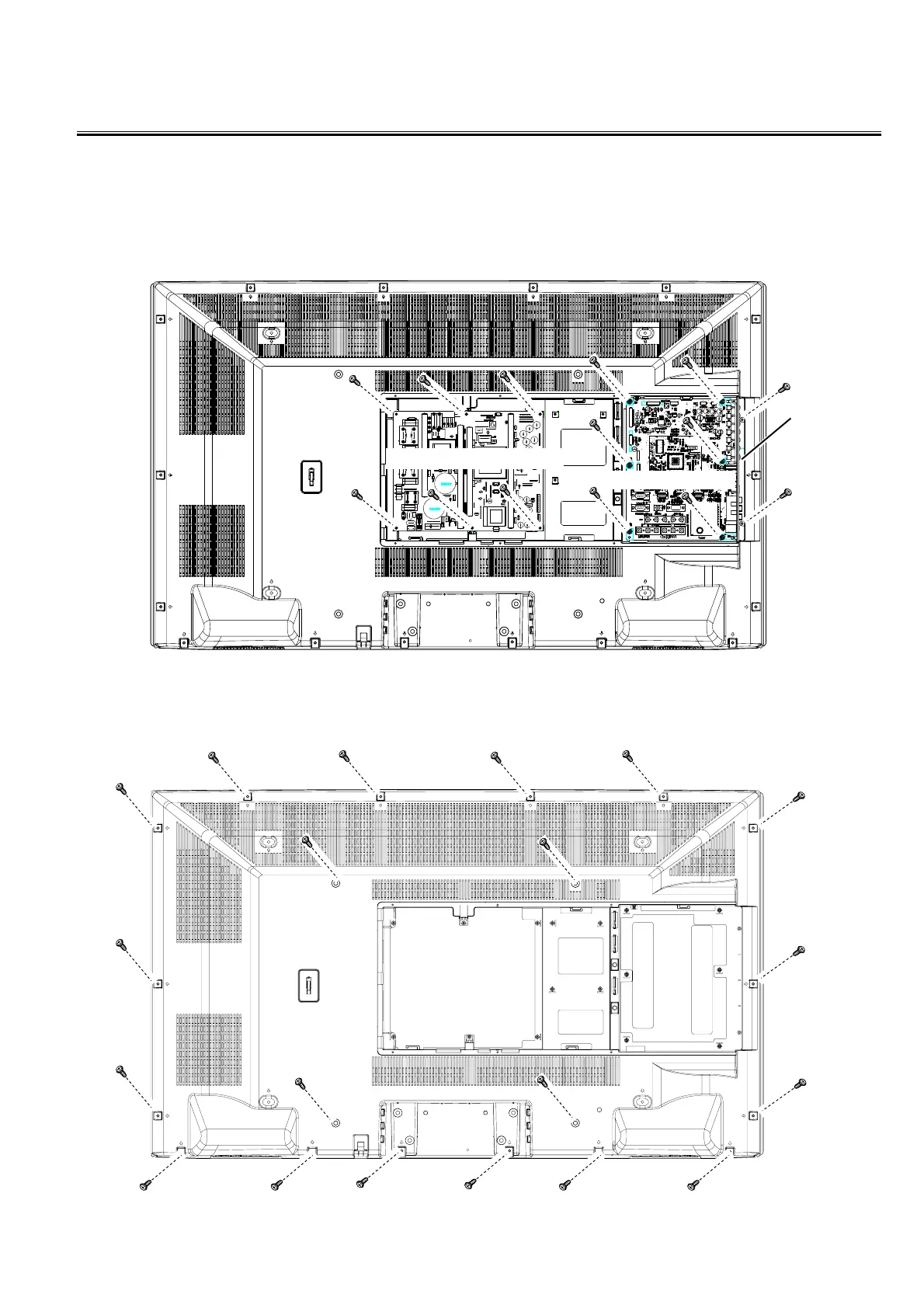

3. ASSY, PWB, POWER Board , ASSY, PWB, MAIN Board and
TERMINAL BASE Removal
1.
Remove 6 screws and take ASSY, PWB, POWER off.
2.
Remove 8 screws and take ASSY, PWB, MAIN and TERMINAL BASE off .
-23-
0HFKDQLFDO'LVDVVHPEO\
ASSY, PWB, POWER
ASSY, PWB, MAIN
4. CABINET BACK Removal
1.
Remove 20 screws and take CABINET BACK off.
TERMINAL BASE
