27
TEMPERATURE RECORDER for AT type

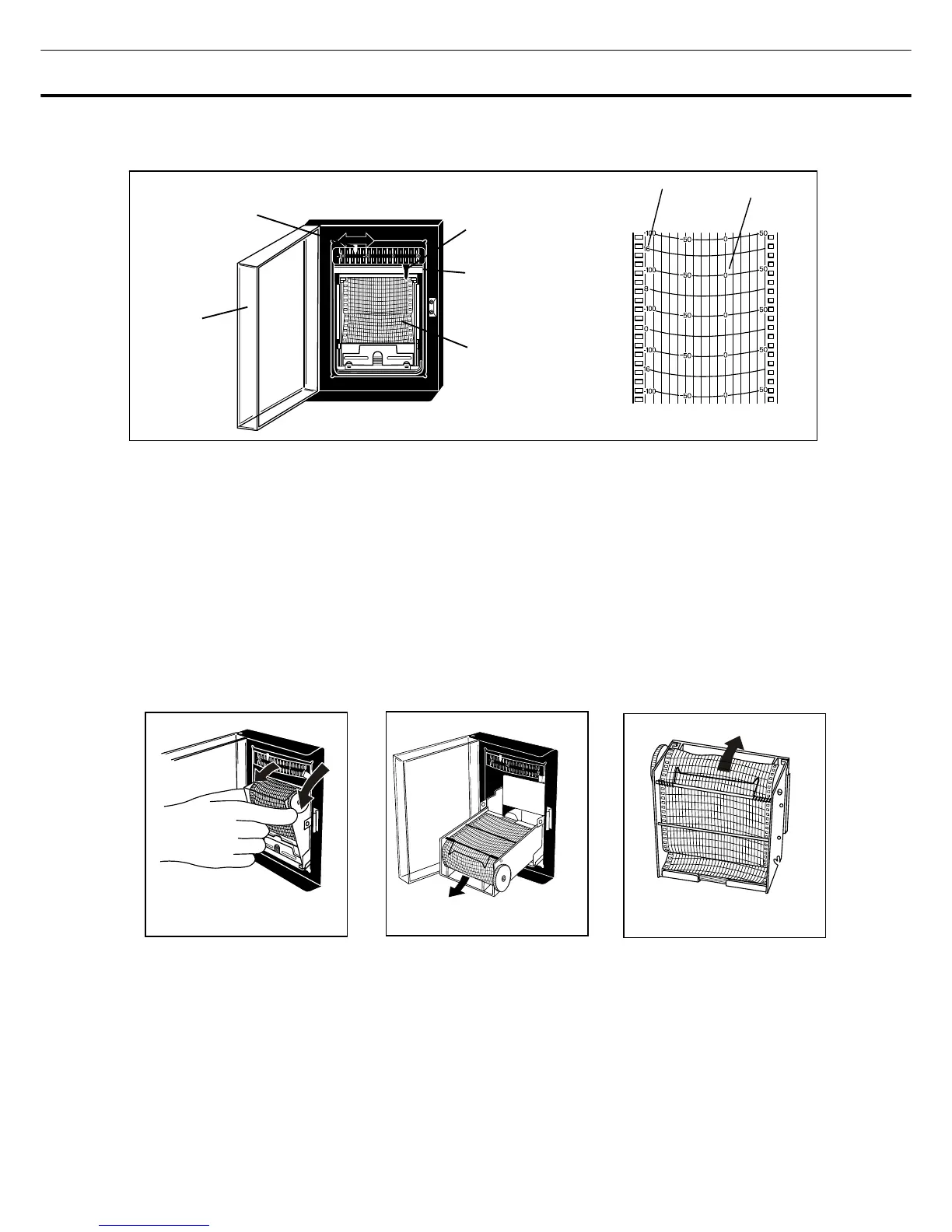

The figure below shows the description of a temperature recorder. The temperature recorder is provided
with model AT type.
Feeding of recording chart
1. Open the door and let down the penholder; level the pen point is apart from the recording chart.
2. Pull the cartridge out of the mounted position. (Fig. 1) (Fig. 2)
3. Set a new recording chart in place on the rear bottom of the cartridge. Set the hole on the recording
chart in the cog of the chart driving assembly and feed the recording chart in the direction of the arrow by
driving the cog wheel. (Fig. 3)
4. Set the recording chart according to the mark of day and time.
5. When mounting, lay down the cartridge first, and push into the mounting position with the groove set a
the projection on the position.
6. Set up the cartridge and settle in position.
7. Let up the penholder lever.
Recording indicator
Pen holder lever
Door
Warning indicator
Cartridge
Time Temperature
Fig. 2
Fig. 3
Fig. 1
