TEMPERATURE RECORDER (OPTION)
WARNING
Disconnect the power supply plug before attaching the temperature recorder or it may cause
electric shock or fire.
An automatic temperature recorder is available for this freezer as the optional component. The type of
the recorder is MTR-155H. Consult Sanyo sales representative or agent for the recorder installation.
Following shows the installation procedure.
36
Screw
Panel door
Temperature cover

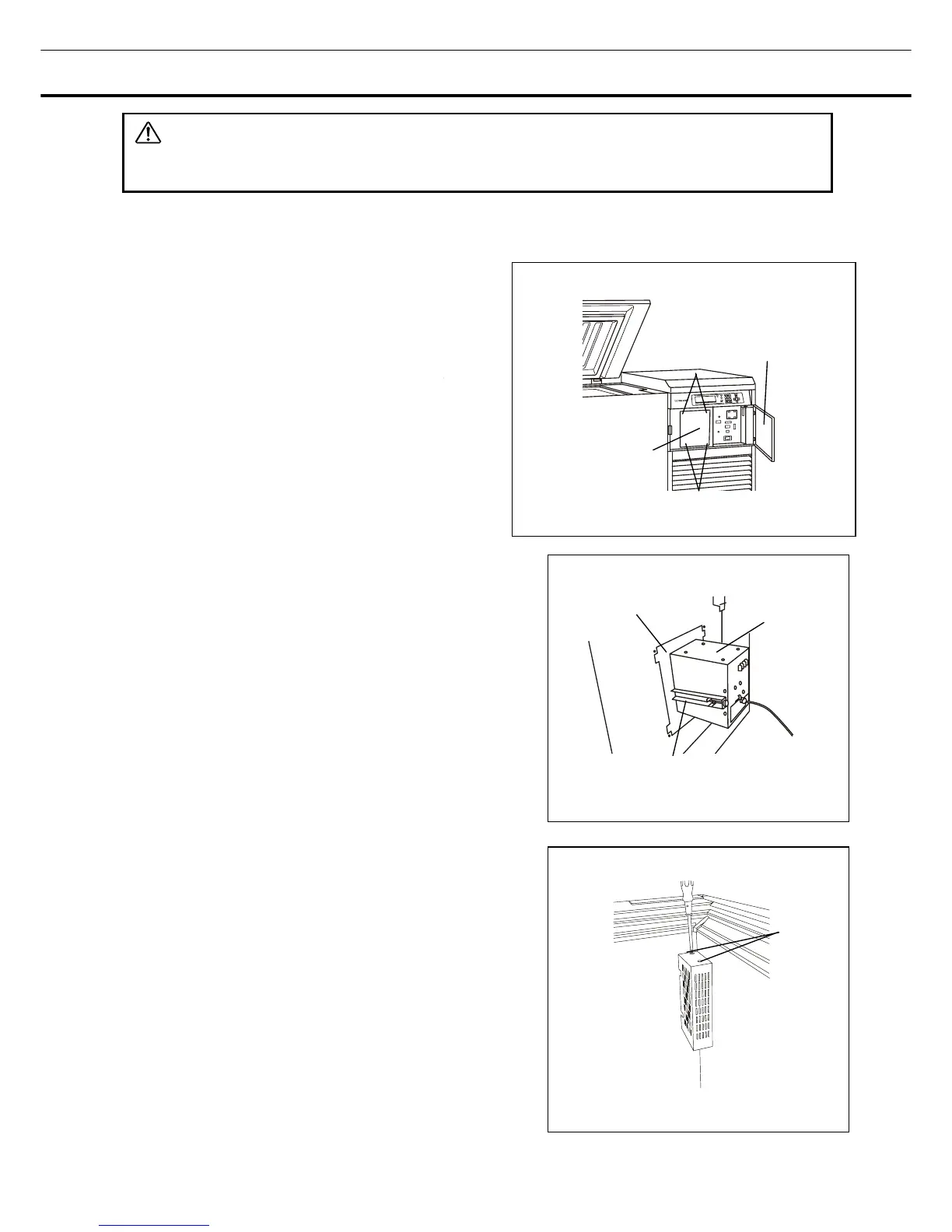

Fig. 1
Screw
＜The installation method of MTR-155H＞
1. Remove four screws (shown by arrows) on the front.
After that, remove a recorder cover (4 screws).
Fig. 2
Temperature recorder
fitting
Mounting plate
Temperature
recorder
2. It gains a temperature record by using the fixture
(accessory) of the temperature record and
MDF-S30150 (temperature record mounting plate) in
the panel. (Fig. 2)
Fig.3
Screw
3. Remove the recorder sensor cover (2 screws) of the
inside (the right back front) of the freezer. (Fig. 3)
To Next Page
