Sanyo PLC-XT20 User Manual

-25-
Mechanical Disassembly
10-1

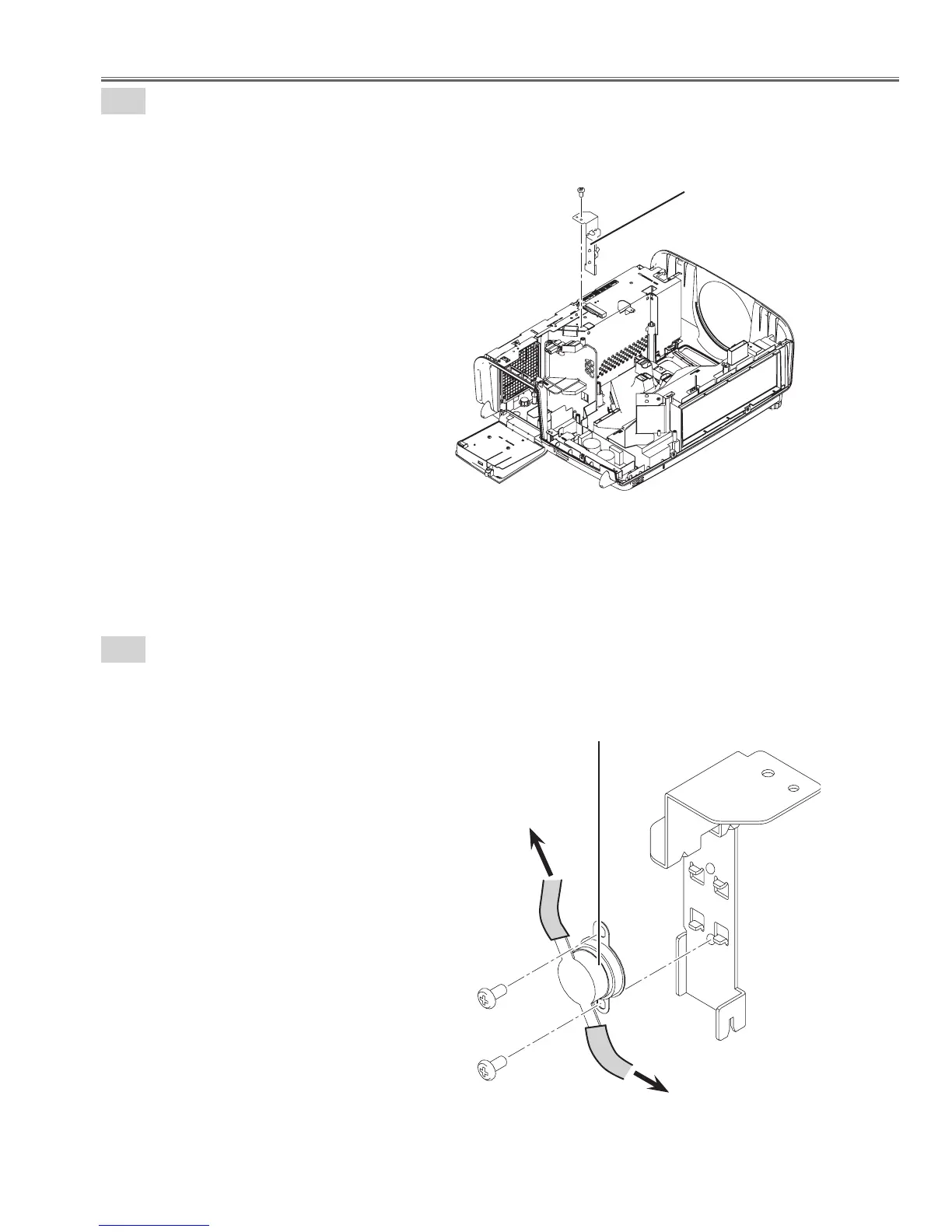

Thermostat(SW901) ass'y removal-1.
1. Remove 1 screw-A(M3X6) and remove the Thermostat(SW901) ass'y.
10-2
Thermostat(SW901) ass'y removal-2.
1. Remove 2 screws-A(M3X4) and remove the Thermal switch(SW901).
A
Fig.10-1
Thermostat ass'y
A
A
Fig.10-2
Thermostat(SW901)
To Power(filter unit)
To Power(DC) unit

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
