Sanyo PLC-XT20 - Blue Polarized glass assy and Optical filter assy removal

-41-
Optical Parts Disassembly
WV
POL
27

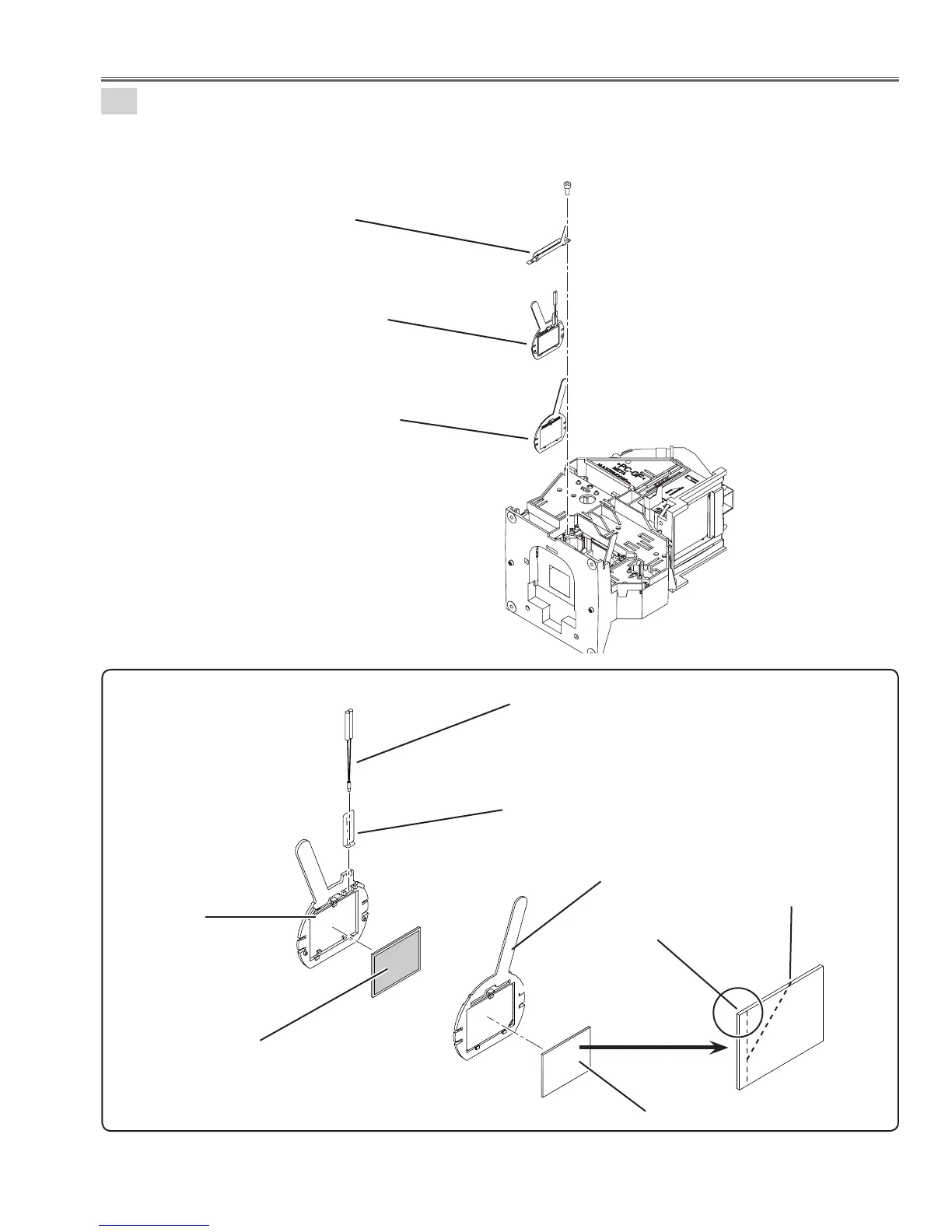

Blue Polarized glass ass'y and Optical filter ass'y removal.
1. Remove 1 screw-A(M2.5X6) and remove the stopper.
2. Remove the Polarized glass ass'y and remove the Optical filter ass'y ass'y.
Holder POL
Thermistor(TH902)
Holder WV
Spacer
Optical filter
Polarized glass
Fig.27a
Fig.27b
Stopper
Polarized glass ass'y
Optical filter ass'y
A
Slit comes Polarized
glass side.
Marker comes this top
side.
Film attached side
comes this side.
