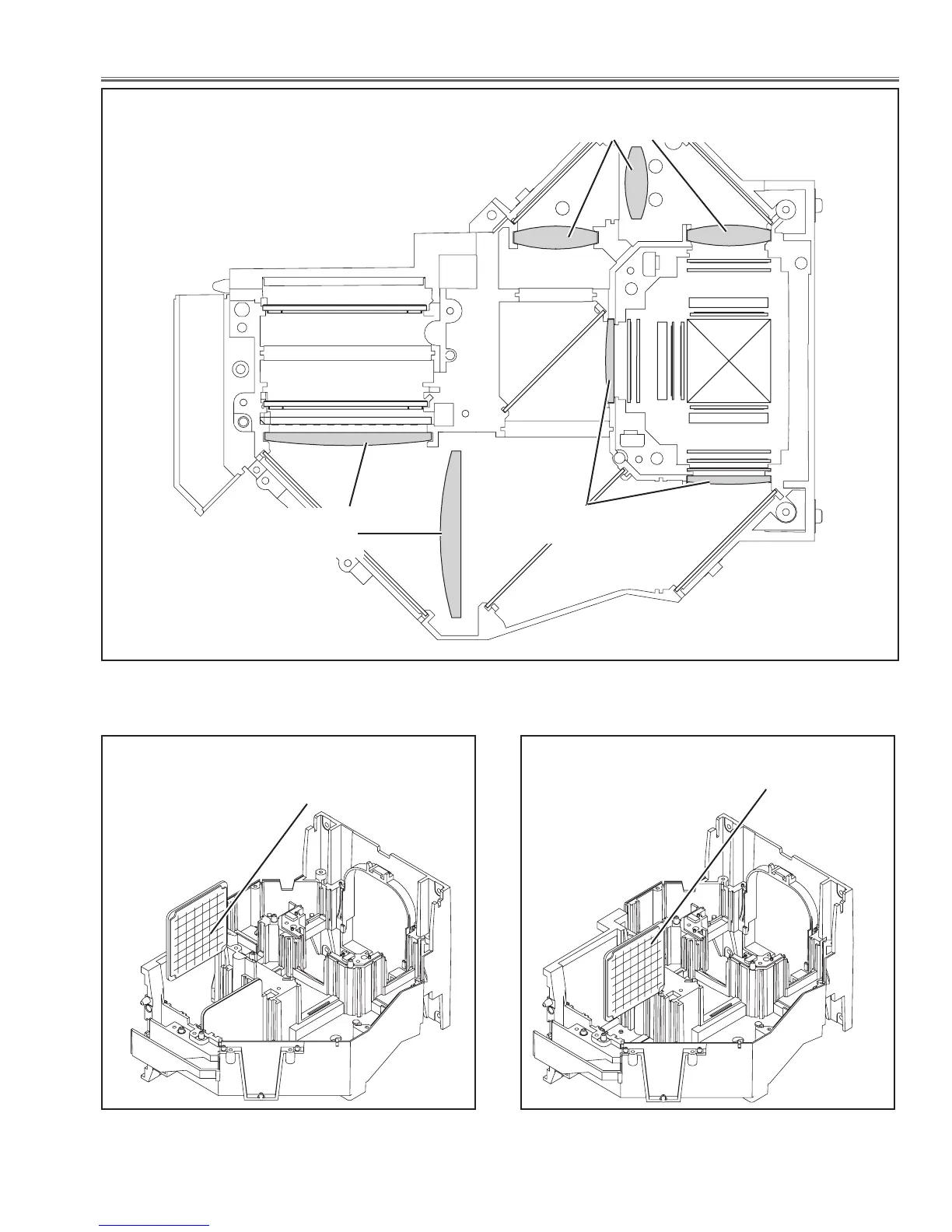

Optical Parts Disassembly
520
518
514
519
519
516
517
The marker comes top
side. Direction of print.
The marker comes top side.
Direction of print.
The marker comes top side.
Direction of print.
Rugged surface side comes this side and
the marker comes top side
Integrator lens (IN) Integrator lens (OUT)
Rugged surface side comes this side and
the marker comes top side
