Sanyo PLC-XU300K User Manual

-22-
Optical Parts Disassembly
6
11
Fig.8
1
7
12

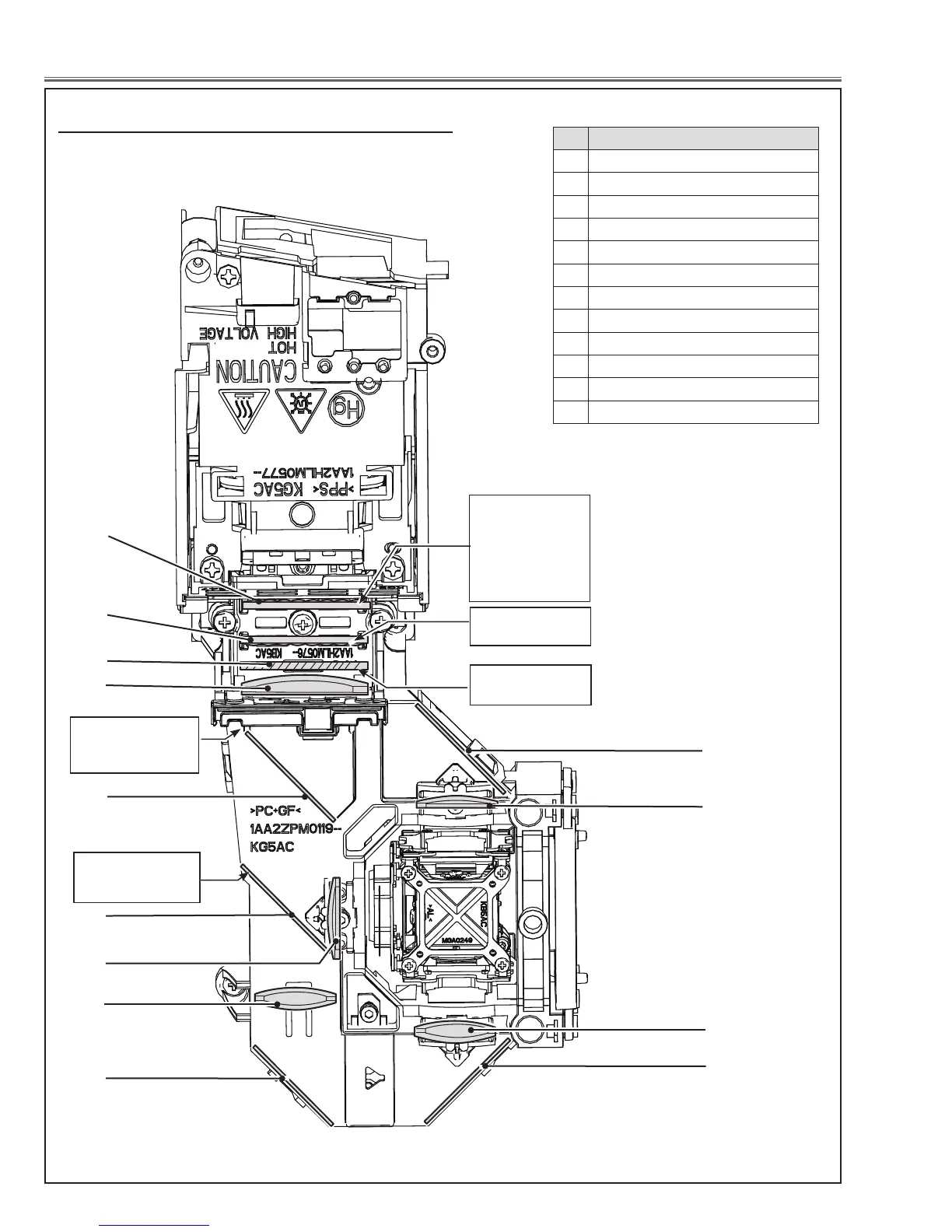

When mounting or assembling the optical parts in the op-
tical unit, the parts must be mounted in the specified loca-
tion and direction as shown in figure below.
2
4
5
9
10
, Locations and Directions
For KF5-XU35000,
the rugged surface
is facing this side.
For KA5-XU30000,
the rugged surface
is opposite to this
side.
Po in t m ar ke r i s
printed on this side
up
P oi n t m a rk e r i s
printed on this side
up
No. Parts Name
1 Integrator lens (IN)
2 Integrator lens (OUT)
3 Prism beam splitter (PBS)
4 Condenser lens (OUT)
5 Dichroic mirror (B)
6 Dichroic mirror (G)
7 Condenser lens (G)
8 Mirror (R)
9 Relay lens (IN)
10 Condenser lens (R)
11 Condenser lens (B)
12 Mirror (B)
8
Film attached side
is facing this side.
8
3
Rugged surface is
facing this side.

Sanyo PLC-XU300K Specifications

General

Resolution	1024 x 768 (XGA)
Brightness	3000 ANSI Lumens
Lamp Life	2000 hours (Normal Mode), 3000 hours (Eco Mode)
Display Technology	3LCD
Lamp Type	UHP
Projection Size	30 - 300 inches
Input Ports	S-Video
Output Ports	VGA
Power Consumption	270 W
Projection Distance	1.2 - 10.2 m (3.9 - 33.5 ft)
Throw Ratio	1.5:1 - 2.1:1
