Part Names and Functions
q
w
e
t
u
i
o

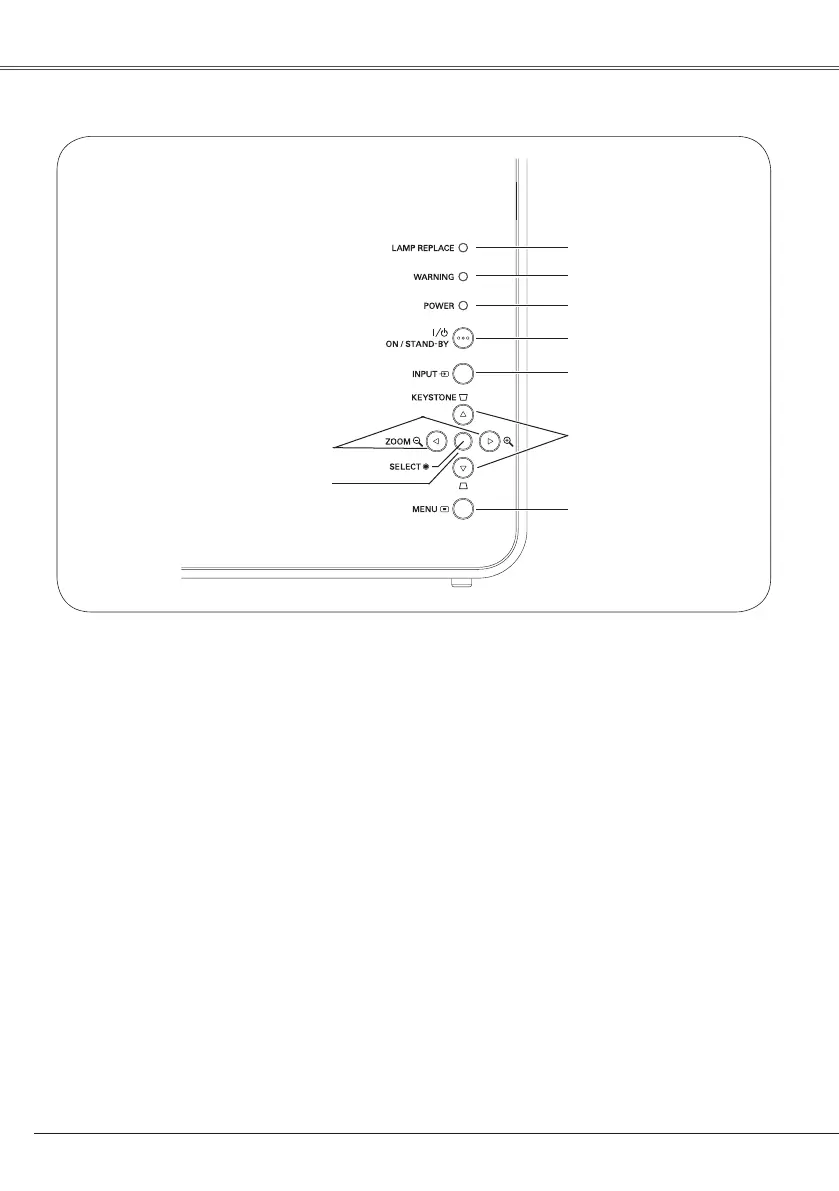

Top Control
r
y
u LAMP REPLACE indicator
Turn yellow when the life of the projection
lamp draws to an end. (p.54, 60)
y WARNING indicator
Emit a red light when the projector detects
an abnormal condition. This also blinks
red when the internal temperature of the
projector exceeds the operating range.
(p.51, 60)
w KEYSTONE ed buttons ✽
Correct the keystone distortion. (p.22, 41)
r POWER ON/STAND-BY button
Turn the projector on or off. (p.18, 19)
tPOWER indicator
Emit a red light until the projector gets
ready to be turned on. It turns red when
the projector is in the stand-by mode. It
remains green while the projector is under
operation. (p.18, 19, 60)
eINPUT button
Select input source. (p.25, 34, 35)
o SELECT button
– Execute the selected item. (p.20)
– Expand or compress the image in Digital
zoom mode. (p.33)
q MENU button
Open or close the On-Screen Menu. (p.20)
i ZOOM +/- (7 8) buttons ✽
Adjust the screen size. (p.22, 41)
✽ POINT (ed7 8) buttons
w and i can be used as the point (ed7 8)
buttons.
– Select an item or adjust the value in the
On-Screen Menu. (p.20)
– Pan the image in Digital zoom + mode.
(p.33)
