Part Names and Functions
Part Names and Functions
Part Names and Functions

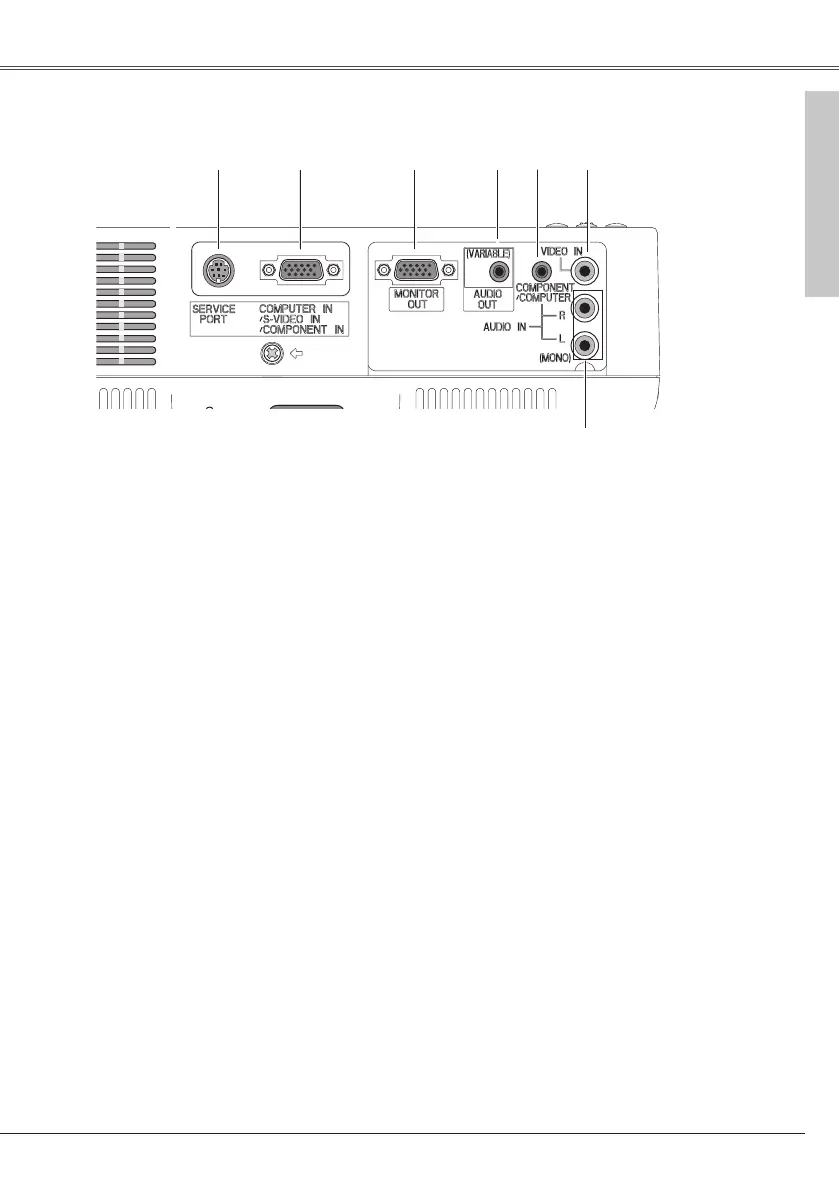

Rear Terminal
q w e r
t
y
u
q SERVICE PORT
This jack is used to service the projector.
w COMPUTER IN /S-VIDEO IN
/COMPONENT IN
Connect output signal from a computer,
RGB scart 21-pin video output, S-VIDEO
output, or component video output to this
terminal. (p.15-17)
r AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this
jack. (p.15 - 17)
This terminal outputs sound from AUDIO IN
terminal (t or u).
y VIDEO IN
Connect the composite video output from
video equipment to VIDEO jack. (p.16)
u AUDIO IN
Co nnect the audio ou tput fr om video
equipment connected to w or y to this
jack. (When the audio output is monaural,
connect it to L (MONO) jack.) (p.16)
t COMPONENT/ COMPUTER AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to
w to this jack. (p.15, 17)
e MONITOR OUT
This terminal can be used to output the
incoming signal from COMPUTER IN/
S-VIDEO IN/COMPONENT IN terminal to
the other monitor. (p.15, 17)
