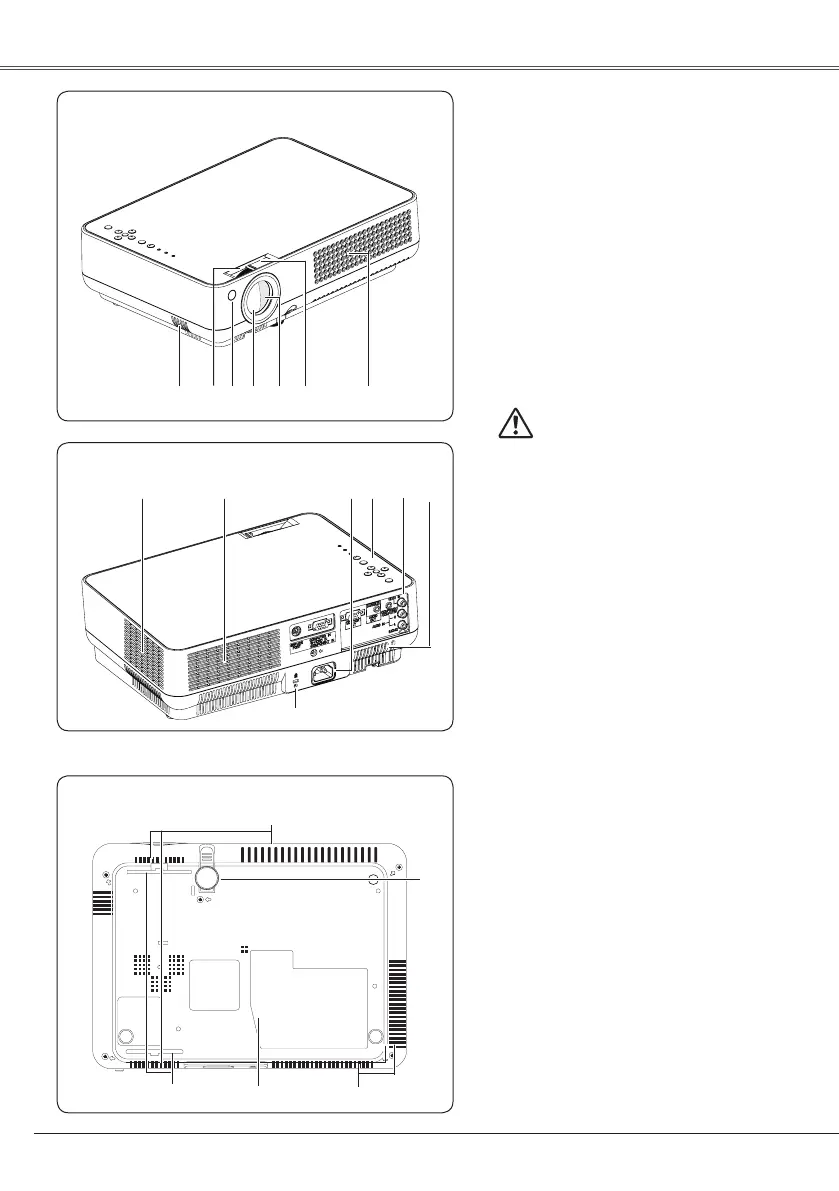

Part Names and Functions
Back
i
i
!0 !1
q t u
o
Front
e r
Bottom
!5
i
q Speaker
w Focus Ring
e Infrared Remote Receiver
r Projection Lens
t Slide Shutter
(See page 52.)
ySlide Shutter Lever
uAir Intake Vent
i Exhaust Vents
w
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
o Power Cord Connector
!0 Top Controls and Indicators
!1 Terminals and Connectors
!2 Air Intake Vents (back and bottom)
!3 Adjustable Foot
!4 Lamp Cover
!5 Air Filters
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
