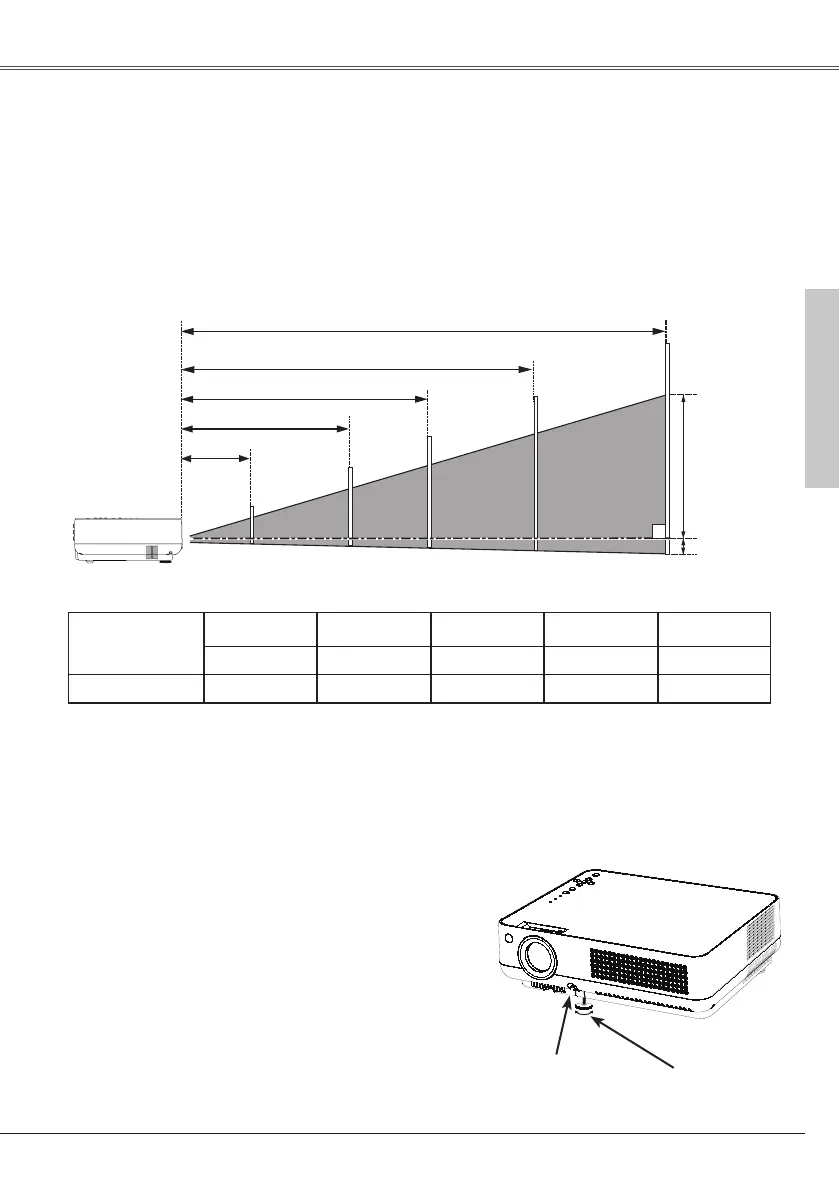

Installation
Note:
The brightness in the room has a great influence on picture quality. It is recommended to limit
ambient lighting in order to obtain the best image.
The values shown below are approximate and may vary from the actual sizes.
Positioning the Projector
A
B
32.6' (9.9 m)
21.7' (6.6 m)
16.3' (5.0 m)
10.8' (3.3 m)
A : B = 6 : 1
(Inch Diagonal)
4.3' (1.3 m)
For projector positioning, see the figures below. The projector should be set horizontally to the flat
screen.
(Center)
Installation
Projection angle can be adjusted up to 10.0 degrees
with the adjustable foot.
Press the Foot Lock Latch upward to release the
adjustable foot. At the desirable angle, release the
latch to lock the adjustable foot. Rotate the adjustable
foot from side to side for fine adjust.
Keystone distortion of the projected image can be
corrected by menu operation. (p.22, 41)
Adjustable Foot
Foot Lock Latch
(Press upward)
Adjustable Foot
Screen Size
(W x H) mm
4 : 3 aspect ratio
Throw distance
40"
813 x 610
4.3' (1.3 m)
100"
2032 x 1524
10.8' (3.3 m)
150"
3048 x 2286
16.3' (5.0 m)
200"
4064 x 3048
21.7' (6.6 m)
300"
6096 x 4572
32.6' (9.9 m)
40"
100"
150"
200"
300"
