Installation
Connecting to a Computer

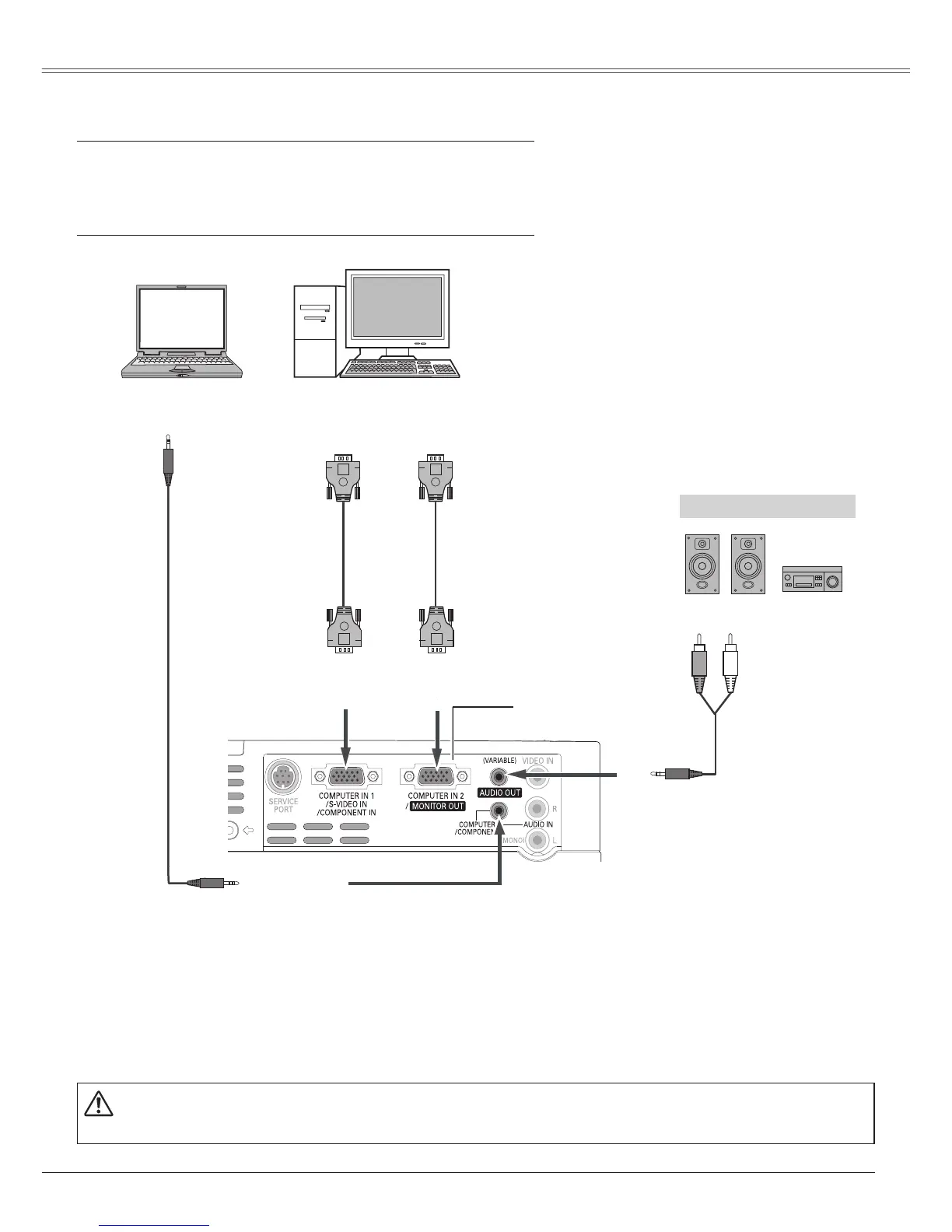

Cables used for connection
• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)
• Audio Cables (Mini Plug: stereo)
( Not all the cables are supplied with this projector.)
External Audio Equipment
VGA cable
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
or
Monitor Input
Audio Output
COMPUTER/
COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
Monitor Output
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VGA cable
This terminal is switchable.
Set up the terminal as
either Computer input or
Monitor output. (See Page
50.)
COMPUTER IN 2/
MONITOR OUT
✔ Notes:
• Input sound to the COMPUTER / COMPONENT AUDIO IN terminal when using the COMPUTER IN 1
/S-VIDEO IN / COMPONENT IN and the COMPUTER IN 2 / MONITOR OUT terminal as input.
•
When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 /S-VIDEO IN /
COMPONENT IN and not the COMPUTER IN 2/MONITOR OUT.
Unplug the power cords of both the projector and external equipment from the AC outlet before
connecting cables.
