Part Names and Functions
q t ye r
w

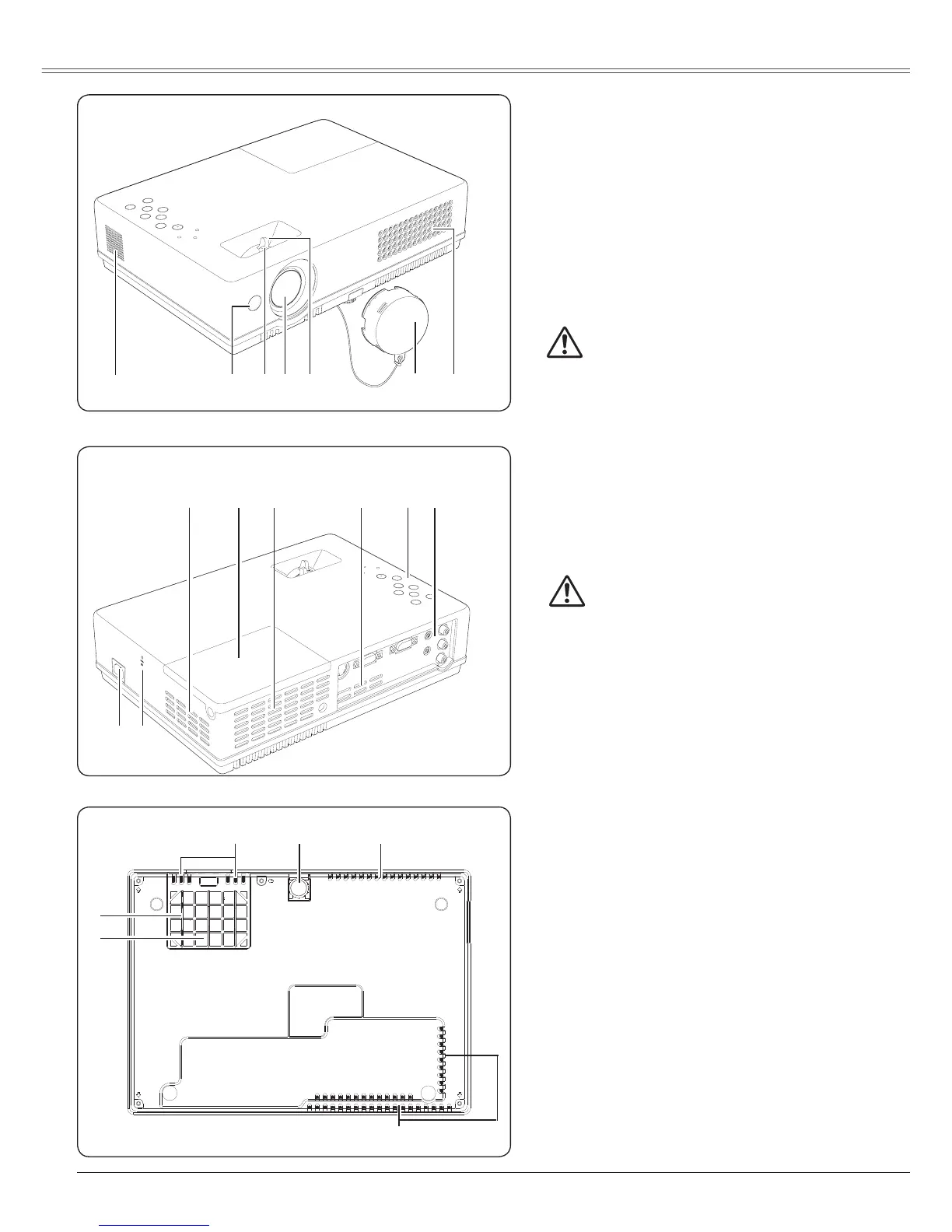

Front
Bottom
q Speaker
w Infrared Remote Receiver
e Focus Lever
r Lens
t Zoom Lever
yLens Cover
(See page 58 for attaching.)
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light beam
may damage lens cap and result in fire hazard.
u Air Intake Vent (front and bottom)
i Power Cord Connector
o Exhaust Vent
CAUTION
Hot air is exhausted from the exhaust vent. Do not
put heat-sensitive objects near this side.
!0 Lamp Cover
!1 Top Controls and Indicators
!2 Terminals and Connectors
!3 Adjustable Foot
!4 Air Filter
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
