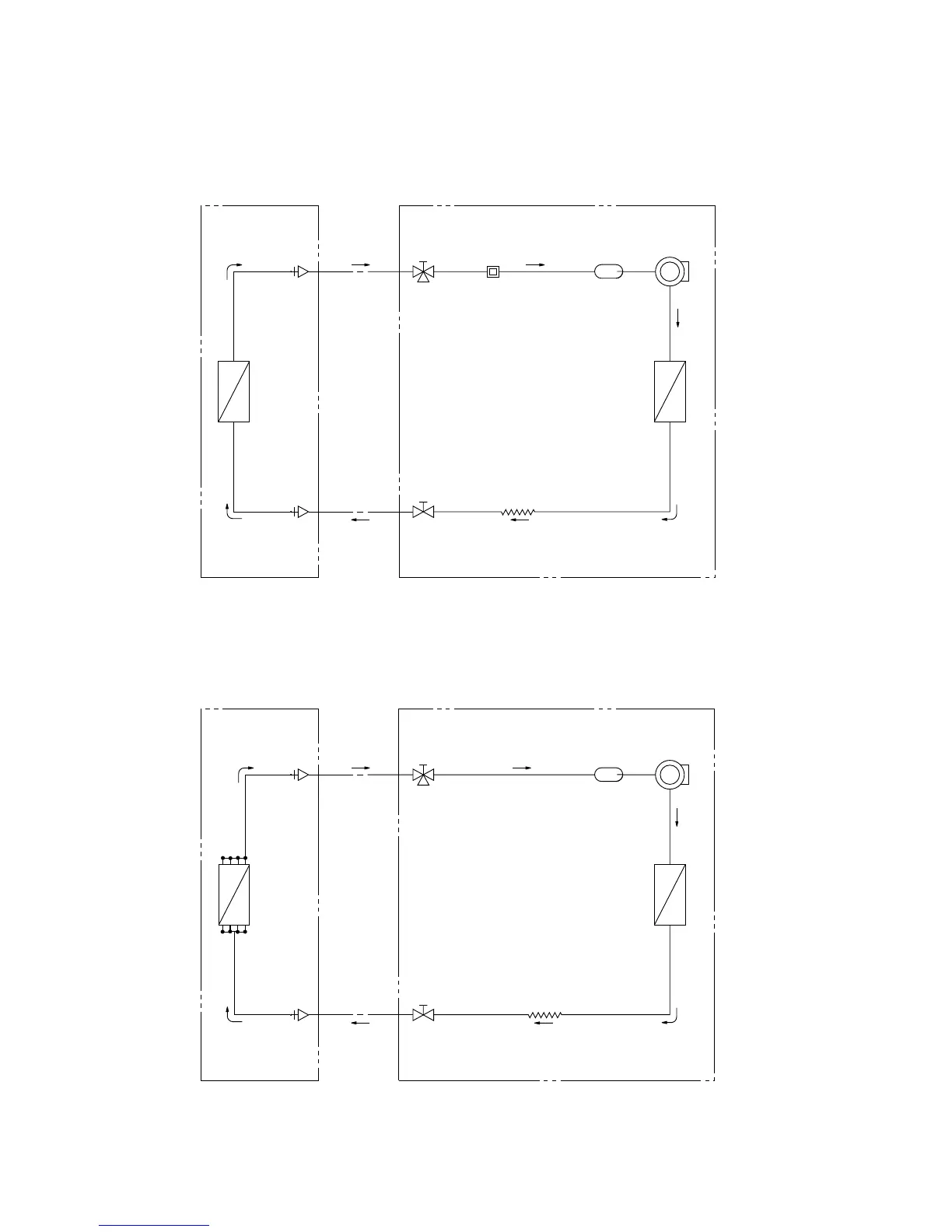

4. REFRIGERANT FLOW DIAGRAM
20
Compressor
Accumulator
Wide tube
service
valve
Wide tube
O.D.
ø9.52 mm
(3/8 ")
O.D.
ø12.7 mm
(1/2 ")
Narrow
tube
service
valve
Narrow tube
O.D.
ø6.35 mm
(1/4")
Condenser
Capillary tube
Evaporator
Muffler
or
Indoor Unit SAP–K92A
SAP–K122A
Outdoor Unit SAP–C92A
SAP–C122A
Indoor Unit SAP–K182A Outdoor Unit SAP–C182A
Capillary tube
Compressor
Accumulator
Wide tube
service
valve
Wide tube
O.D.
ø12.7 mm
(1/2 ")
Narrow
tube
service
valve
Narrow tube
O.D.
ø6.35 mm
(1/4")
Condenser
Evaporator
