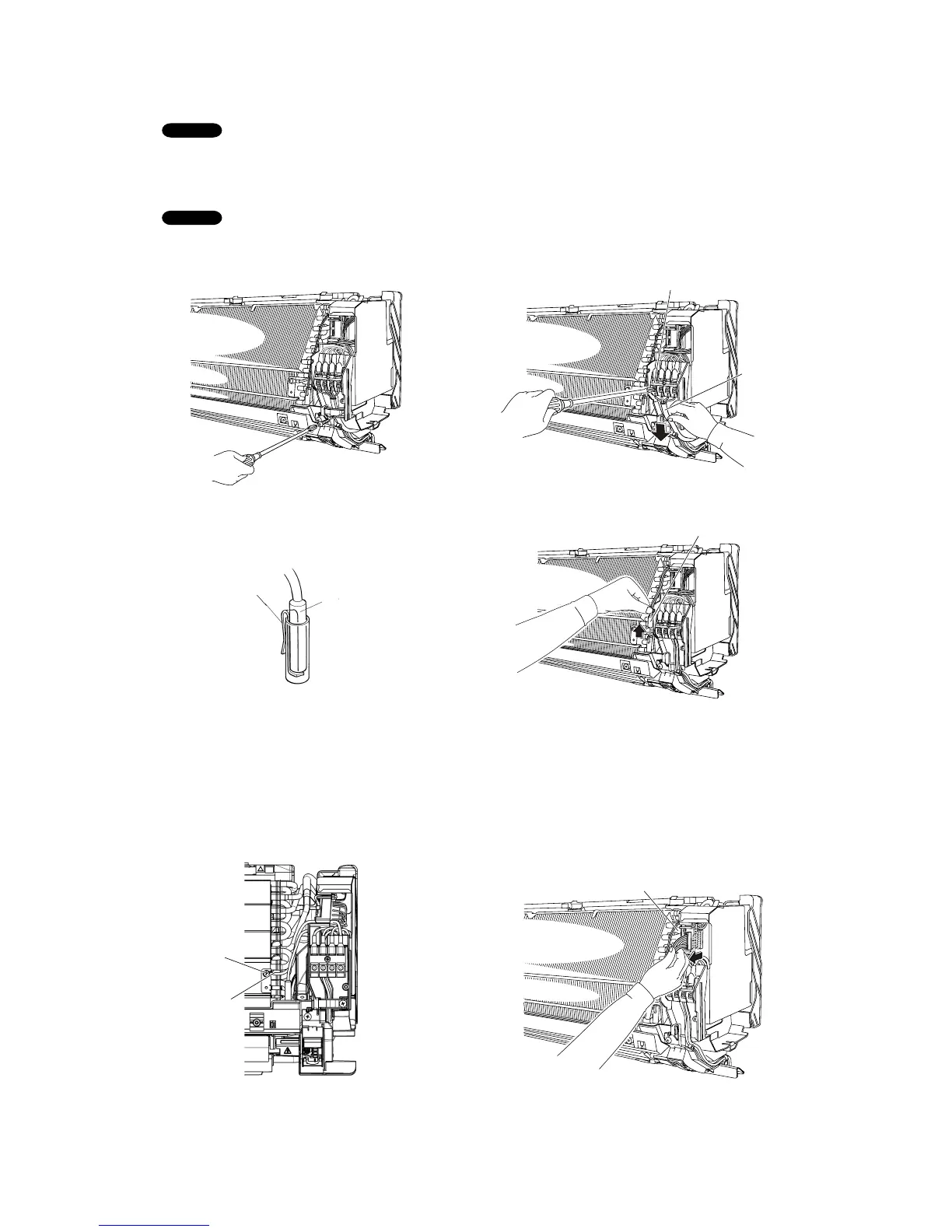

9-1-6. Removing the electrical box
(1) Disconnect the cable clamp. (Fig.17)
Pay attention to the direction of the retainer of the thermistor so that the retainer will not
touch the harness.
(2) Disconnect the connection wires. (Fig.18)
Take care not to lose the clip of thermistor. (Fig.19)
(3) Remove temperature sensor. (Fig.20)
NOTE
NOTE
(4) Remove a screw on the terminal board. (Fig.21)
(5) Remove fan motor signal wire. (Fig.22)
Fig. 19 Fig. 20
Fig. 17 Fig. 18
Fig. 21 Fig. 22
Terminal board
Connecting
wires
Heat exchanger thermistor
Clip
Heat exchanger
thermistor
Screw
Earth wire
Fan motor signal wire
To Next Page
