9-1-7. Removing the shield plate

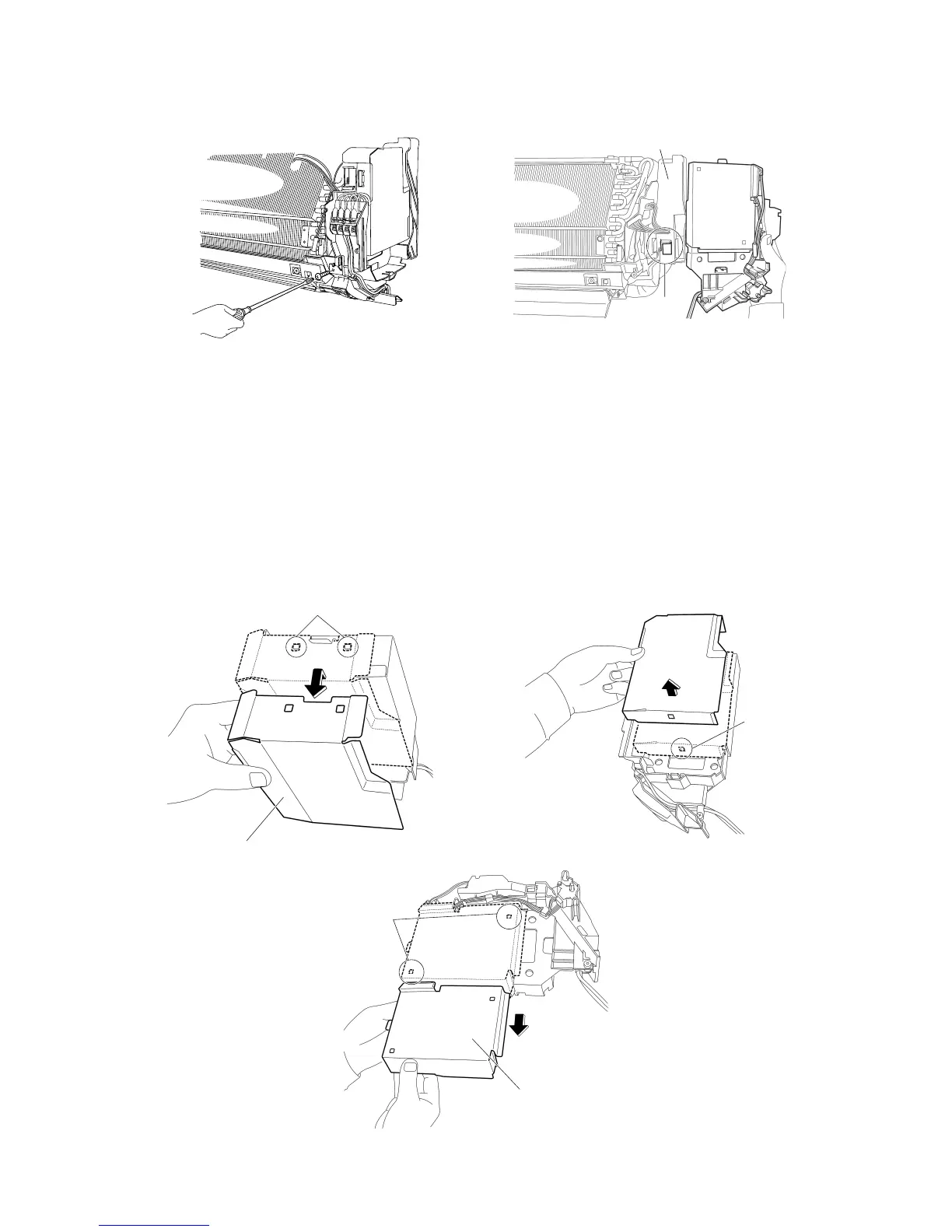

(1) Unfasten the hooks at the upper 2 positions of the shield plate. (Fig.25)
(2) Unfasten the hook at the lower position, and remove the shield plate 1. (Fig.26)
(3) Lift the shield plate 2 and unfasten the 2 hooks. (Fig.27)
(4) Slide the shield plate 2 and remove it. (Fig.27)
(6) Remove a screw on the electrical box. (Fig.23)
(7) Pull up the electrical box forward to remove. (Fig.24)
Fig. 25 Fig. 26
Fig. 23 Fig. 24
Fig. 27
Hook
Bottom frame
Hook
shield plate 1
Hook
Hook
Shield plate 2
