Control of W-ECO MULTI SYSTEM
3
TD831077
III - 6
CENTRAL CTRL
SET CL
MODE
FAN SPEED
ON
OFF
•
•
SET TEMP.
UNIT
FLAP
AIR FLOW
SERVICE
TEST
R.C. No.
CHECK
SET
UNIT No.
No.CODE
SET TEMP.
°C
MODE FIXED
STANDBY
TIMER SET
DATA
MONITOR
ON OFF
AIM
SWEEP
A
SETTING
A
TEST / CHK
C: MODE button
D: Temperature
setting buttons
E: FAN SPEED
button
(Filter) buttonF:
G: TEST RUN / CHECK
button
A: ON / OFF
operation button
K: UNIT button
H: FLAP button
I: TIMER SET
button
J: Timer setting
buttons
B: Operation lamp
642_8132
M: SET button
L: CLEAR button

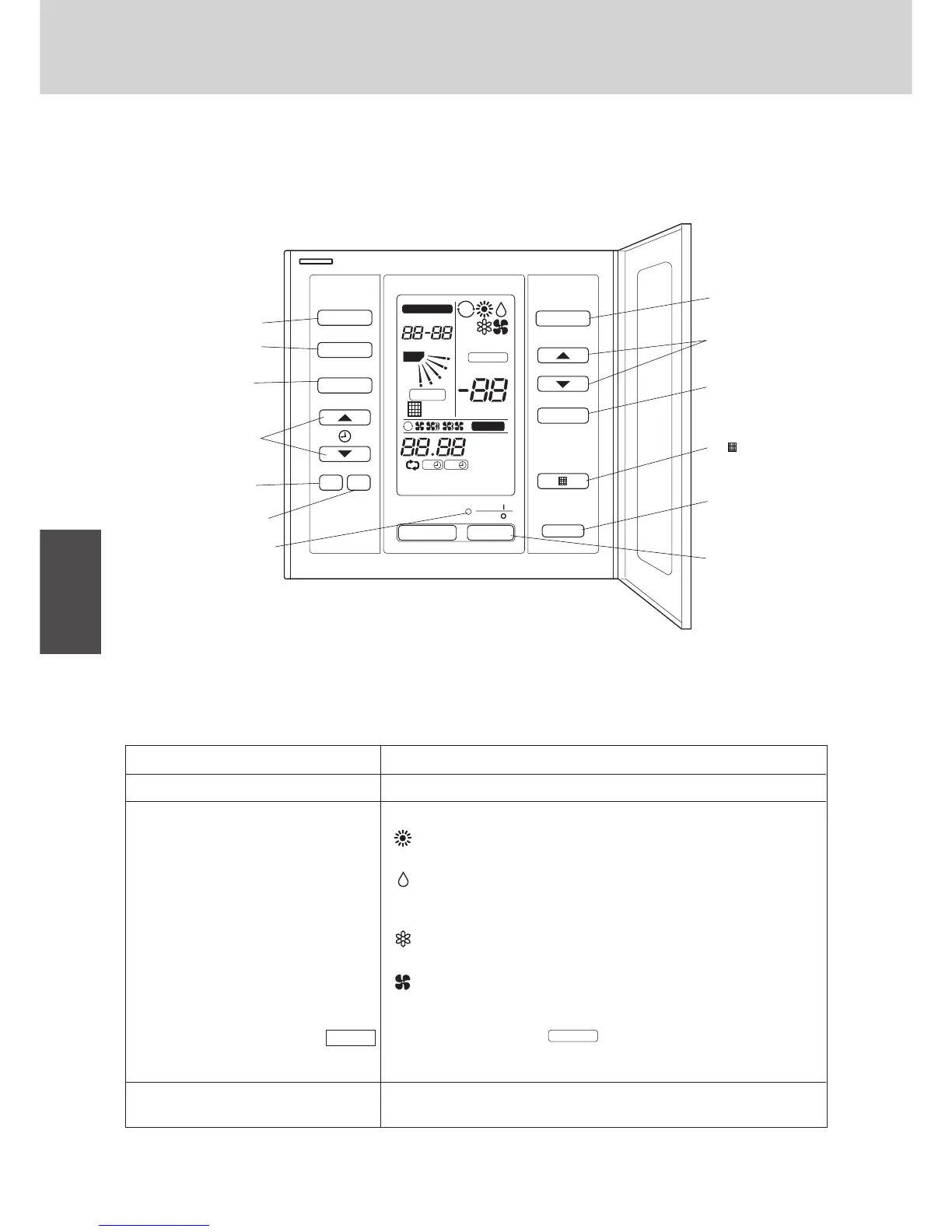

2. Optional Controller (remote controller)
2-1. Remote controller / RCS-SH80TG
7 How to use the remote controller
A: ON/OFF operation button This button is for turning the air conditioner on and off.
B: Operation lamp This lamp lights when the air conditioner is turned on.
C: MODE button Use this button to select one of the following five operations:
(HEAT) Used for normal heating operation.
(temperature range: 16 - 26 °C)
(DRY) Used for dehumidifying without changing the room tem-
perature.
(temperature range: 18 - 30 °C)
(COOL) Used for normal cooling operation.
(temperature range: 18 - 30 °C)
(FAN) Used to run the fan only, without the heating or cooling
operation.
NOTE When the
indication is displayed, change
the setting with the MODE button, or turn off all units
once then select the mode again.
D: Temperature setting buttons
j : Press this button to increase the set temperature.
l : Press this button to decrease the set temperature.
To Next Page
