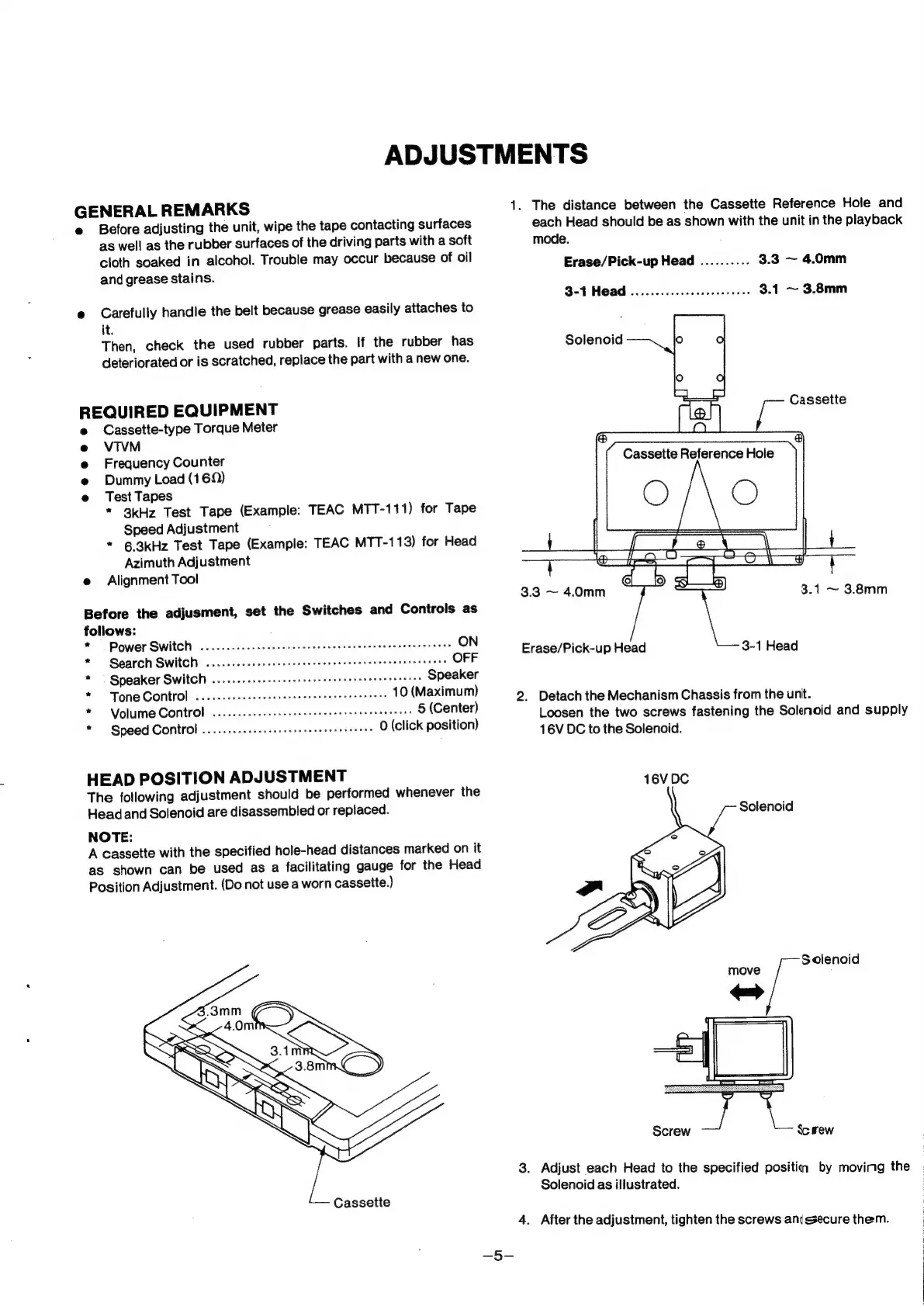

ADJUSTMENTS
GENERAL
REMARKS
Before
adjusting
the
unit,
wipe
the
tape
contacting
surfaces
as
well
as
the
rubber
surfaces
of
the
driving
parts
with
a
soft
cloth
soaked
in
alcohol.
Trouble
may
occur
because
of
oil
and
grease
stains.
Carefully
handle
the
belt
because
grease
easily
attaches
to
it.
Then,
check
the
used
rubber
parts.
lf
the
rubber
has
deteriorated
or
is
scratched,
replace
the
part
with
a
new
one.
REQUIRED
EQUIPMENT
Cassette-type
Torque
Meter
VTVM
Frequency
Counter
Dummy
Load
(16)
Test
Tapes
*
3kHz
Test
Tape
(Example:
TEAC
MTT-111)
for
Tape
Speed
Adjustment
*
6.3kHz
Test
Tape
(Example:
TEAC
MTT-113)
for
Head
Azimuth
Adjustment
Alignment
Tool
Before
the
adjusment,
set
the
Switches
and
Controls
as
follows:
*
Power
SWItCh
........cccceeee
ee
ee
eee
ee
eee
reeeeeeeneeeee
eens
ens
ON
*
Search
SWItCh
.........cececececee
erent
ee
eeeeteeeeenaneeeneees
OFF
*
Speaker
SWItCh
.......-.0:ceeeeeeeeeeeeeneeenaeeeseaen
ees
Speaker
*
Tone
Control
..........ccceeeneeeee
eee
eneeeeeenees
10
(Maximum)
*
—VYolume
Control
..........ecceeeeeeeeee
eee
eceee
een
ene
ees
5
(Center)
*
Speed
Control
..........eeeceereeeeeeeeee
ee
eeees
0
(click
position)
HEAD
POSITION
ADJUSTMENT
The
following
adjustment
should
be
performed
whenever
the
Head
and
Solenoid
are
disassembled
or
replaced.
NOTE:
A
cassette
with
the
specified
hole-head
distances
marked
on
it
as
shown
can
be
used
as
a
facilitating
gauge
for
the
Head
Position
Adjustment.
(Do
not
use
a
worn
cassette.)
Cassette
.
The
distance
between
the
Cassette
Reference
Hole
and
each
Head
should
be
as
shown
with
the
unit
in
the
playback
mode.
Erase/Pick-up
Head
..........
3.3
~
4.0mm
3-1
Head
............
cee
eee
eee
3.1
~
3.8mm
Solenoid
Cassette
Erase/Pick-up
Head
3-1
Head
2.
Detach
the
Mechanism
Chassis
from
the
unt.
Loosen
the
two
screws
fastening
the
Solencid
and
supply
16V
DC
to
the
Solenoid.
16V
DC
Solenoid
Solenoid
Screw
3.
Adjust
each
Head
to
the
specified
positin
by
moving
the
Solenoid
as
illustrated.
4.
After
the
adjustment,
tighten
the
screws
anisecure
them.
