Sanyo TRC9010 - Frame Removal

DISASSEMBLY
INSTRUCTIONS
(continuea)

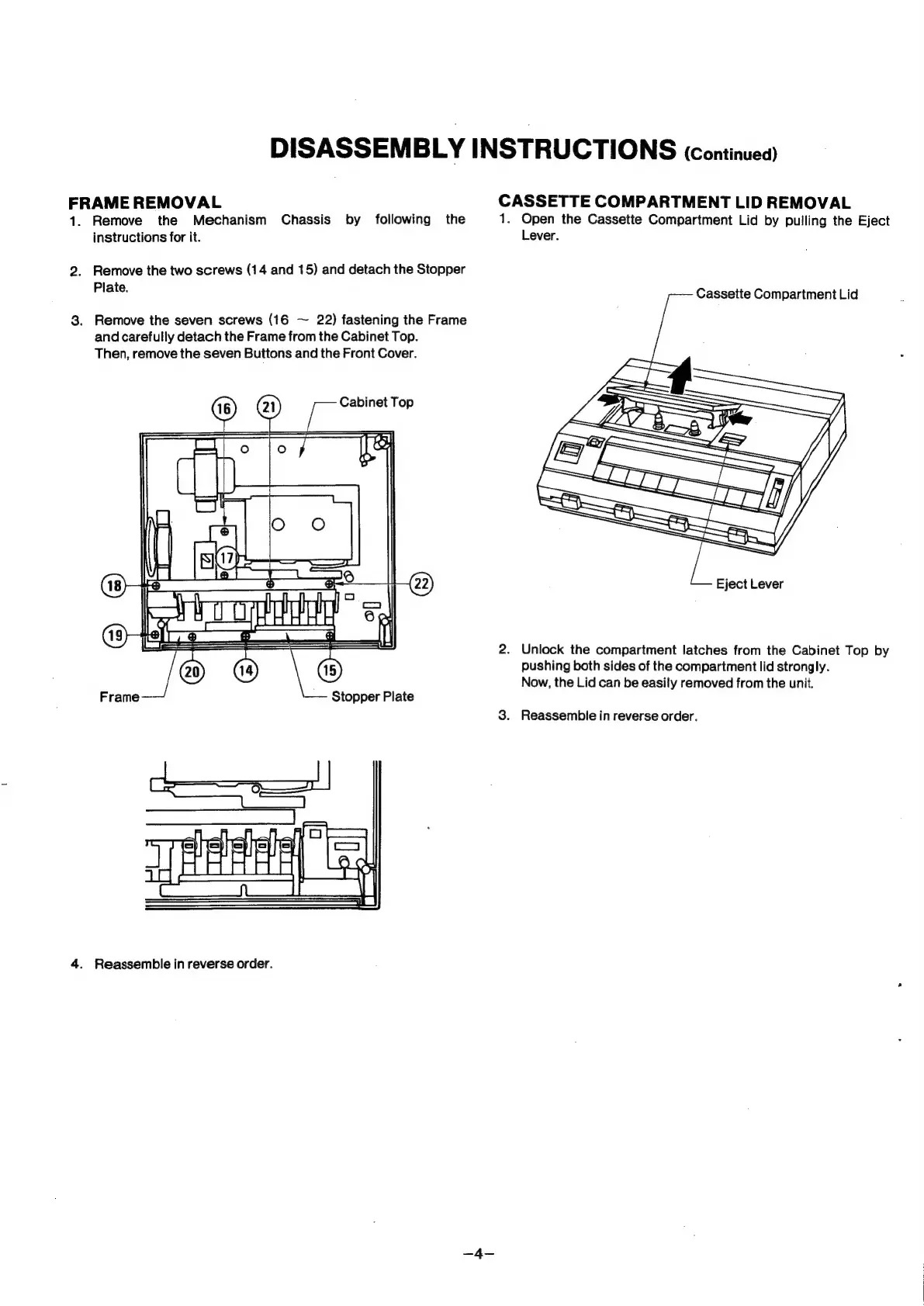

FRAME REMOVAL CASSETTE COMPARTMENT LID REMOVAL
1. Remove the Mechanism Chassis by following the 1. Open the Cassette Compartment Lid by pulling the Eject
instructions for it. Lever.
2. Remove the two screws (14 and 15) and detach the Stopper
Plate. Cassette Compartment Lid
3. Remove the seven screws (16 ~ 22) fastening the Frame
and carefully detach the Frame from the Cabinet Top.
Then, remove the seven Buttons and the Front Cover.
2
g
a
Eject
Lever
TD”
=:
—_
ai
2. Unlock the compartment latches from the Cabinet Top by
pushing both sides of the compartment lid strongly.
Now, the Lid can be easily removed from the unit.
Frame
3. Reassemble in reverse order.
4. Reassemble in reverse order.
