Sanyo VCC-MC800P Manual

- 6 -
SY-1 board
CA-1 board
CA-3 board
CA-2 board
TB-1 board
2
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
33
37
38
38
42
42
39
40
40
40
40
34
35
36
33
34
35
36
37
41
43
44
B
B
25
26
27
28
28
29
27
28
29
29
30
31
32
24
23
20
22
21
22

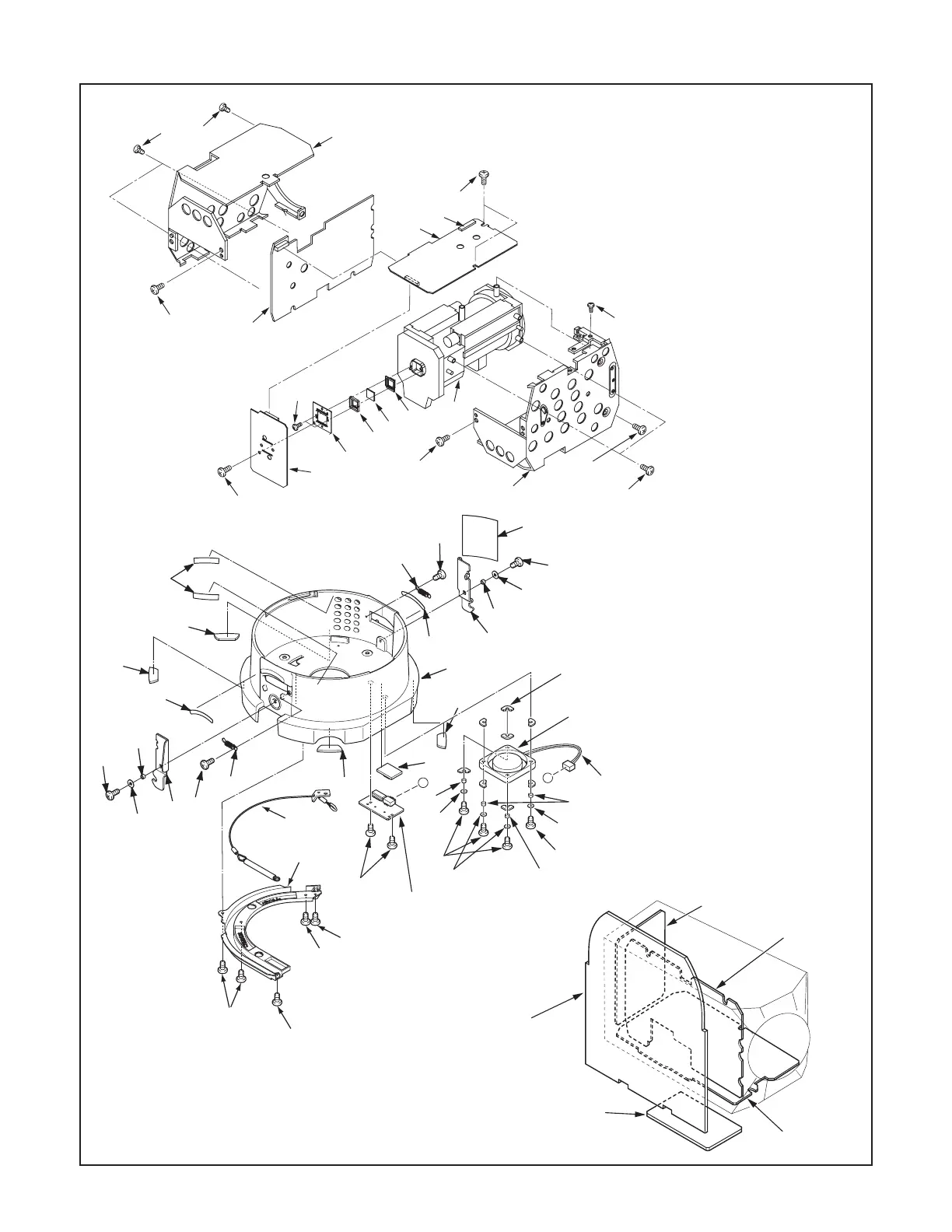

2-2. REMOVAL OF CA-3 BOARD, CA-2 BOARD, CA-1 BOARD, TB-1 BOARD AND BOARD LOCATION
1. Two screws 2 x 3
2. Two screws 2 x 3
3. Two screws 2 x 3
4. Holder lens R
5. CA-3 board
6. FPC - CN207
7. Two screws 2 x 3
8. CA-2 board
9. Screw 1.7 x 5
10. Two screws 2 x 5
11. Holder lens L
12. Screw 2 x 3
13. CA-1 board
14. Two screws 2 x 5
15. Assy, unit, CCD
16. Spacer CCD
17. Optical filter
The direction of the
arrow is long. It
installs it in the
direction of figure.
18. Holder LPF
19. Lens
20. Screw 3 x 6
21. Screw 2 x 6
22. Three screws 2 x 4
23. Cover safety wire
24. Mounting safety wire
25. Two screws 2 x 4
26. TB-1 board
27. Four screws 2 x 12
28. Four washers
29. Four pipe fan
30. Motor fan
31. Assy wire - CN494
32. Eight spacer fan
33. Two screws 3 x 8
34. Two washers
35. Two pipes
36. Lever lock
37. Two screws 2 x 4
38. Spring lever
39. Spacer dome
40. Spacer
41. Cover dust
42. Spacer lever
43. Fixer clamp
44. Cabinet main
