Sanyo VPC-CG20 - Page 11

– 11 –
1. Heat sink tape left
2. Two screws 1.7 x 5
3. Cover condenser
4. Heat sink left
5. Screw 1.7 x 2.5
6. Assy, cabi front
7. Remove the solder.
8. Two screws 1.7 x 7
9. Assy, lamp SV
10. Shield tape ST1
11. Spacer ST1 cover
12. Two screws 1.7 x 3.5
13. Connector (CN106)
14. Stand
15. Remove the solder.
16. TB2 board
17. ST1 board

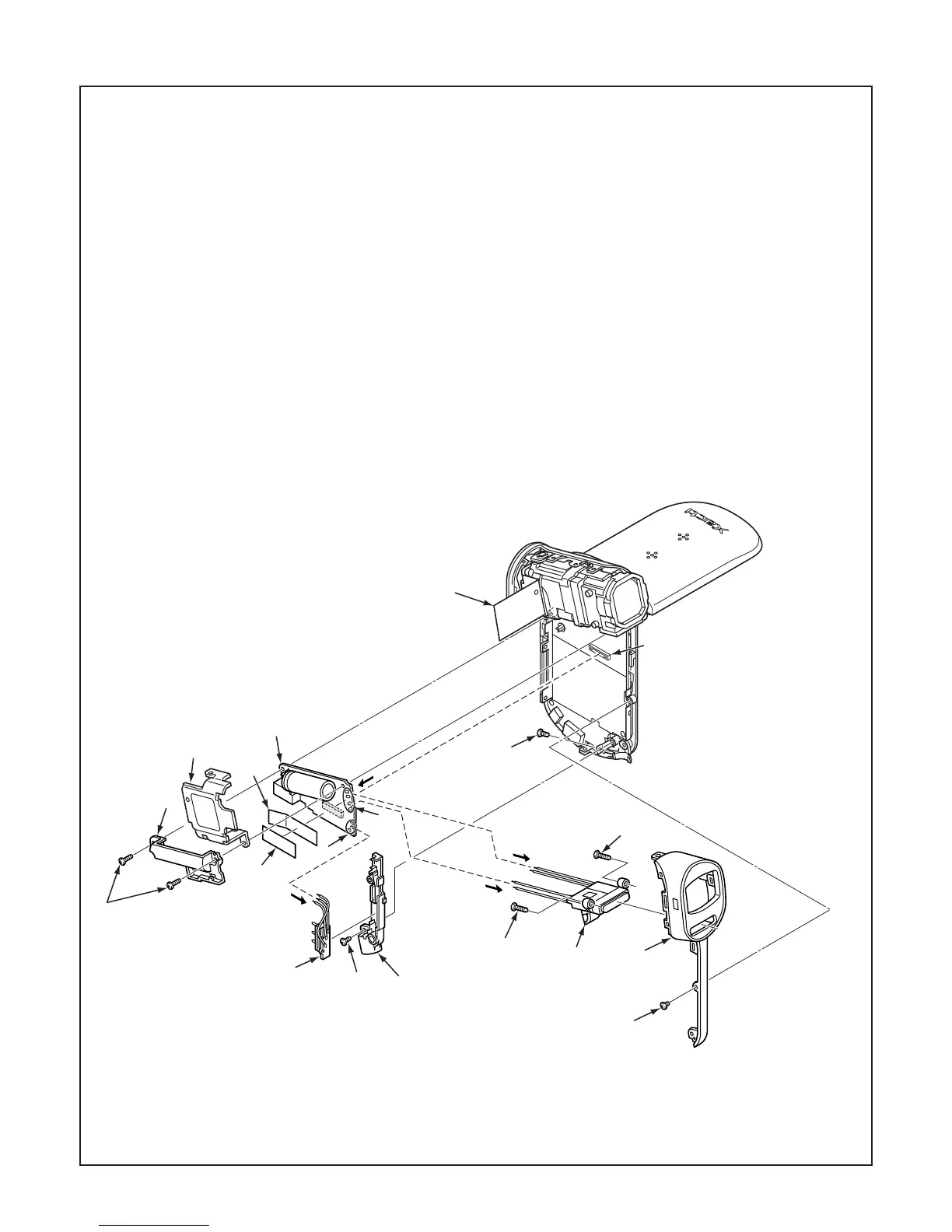

2-2. REMOVAL OF TB2 BOARD AND ST1 BOARD
2
3
10
11
17
4
7
15
14
8
a
b
9
6
12
16
A
8
12
13
B
1
5
When assembling,
tighten the screws order.
A → B
When assembling,
tighten the screws order.
a → b
