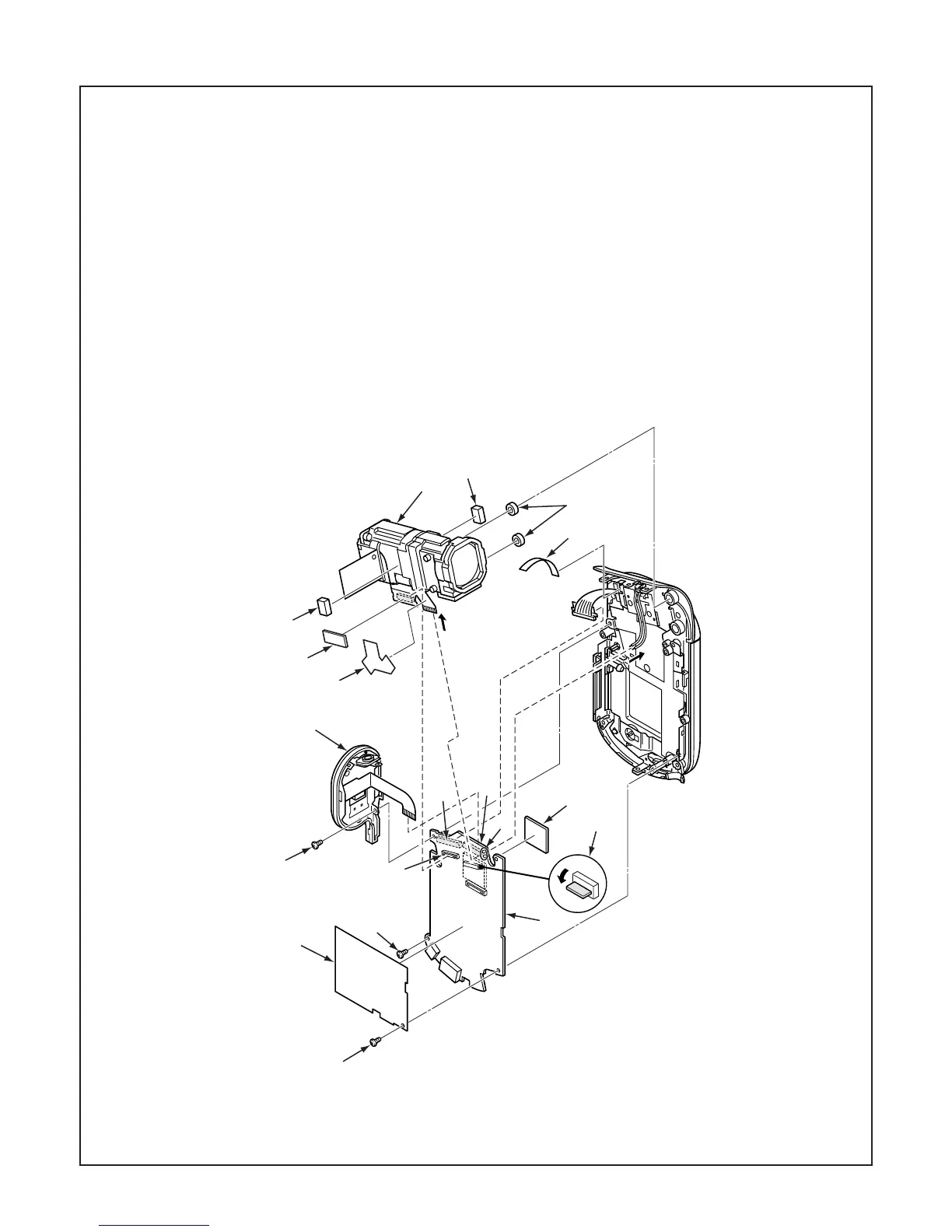

1. Spacer CA1 CN
2. Heat sink tape top
3. Connector (CN951)
4. Connector (CN901)
5. Holder lens
6. Remove the solder.
7. Screw 1.7 x 4
8. Two screws 1.7 x 3.5
9. Connector (CN103)
2-3. REMOVAL OF CP1 BOARD
10. Connector (CN301)
11. Unit control
12. CP1 board
13. Spacer battery
14. Heat sink rub heat L
15. Spacer lens right
16. Spacer FPC lens
17. Assy, FPC CA1 SV
18. Heat sink tape top
17
2,18
15
5
3
6
10
9
4
8
13
B
14
12
8
A
7
C
16
15
1
11
When assembling,
tighten the screws order.
A → B→ C
