CONNECTING TO A TV
English 174

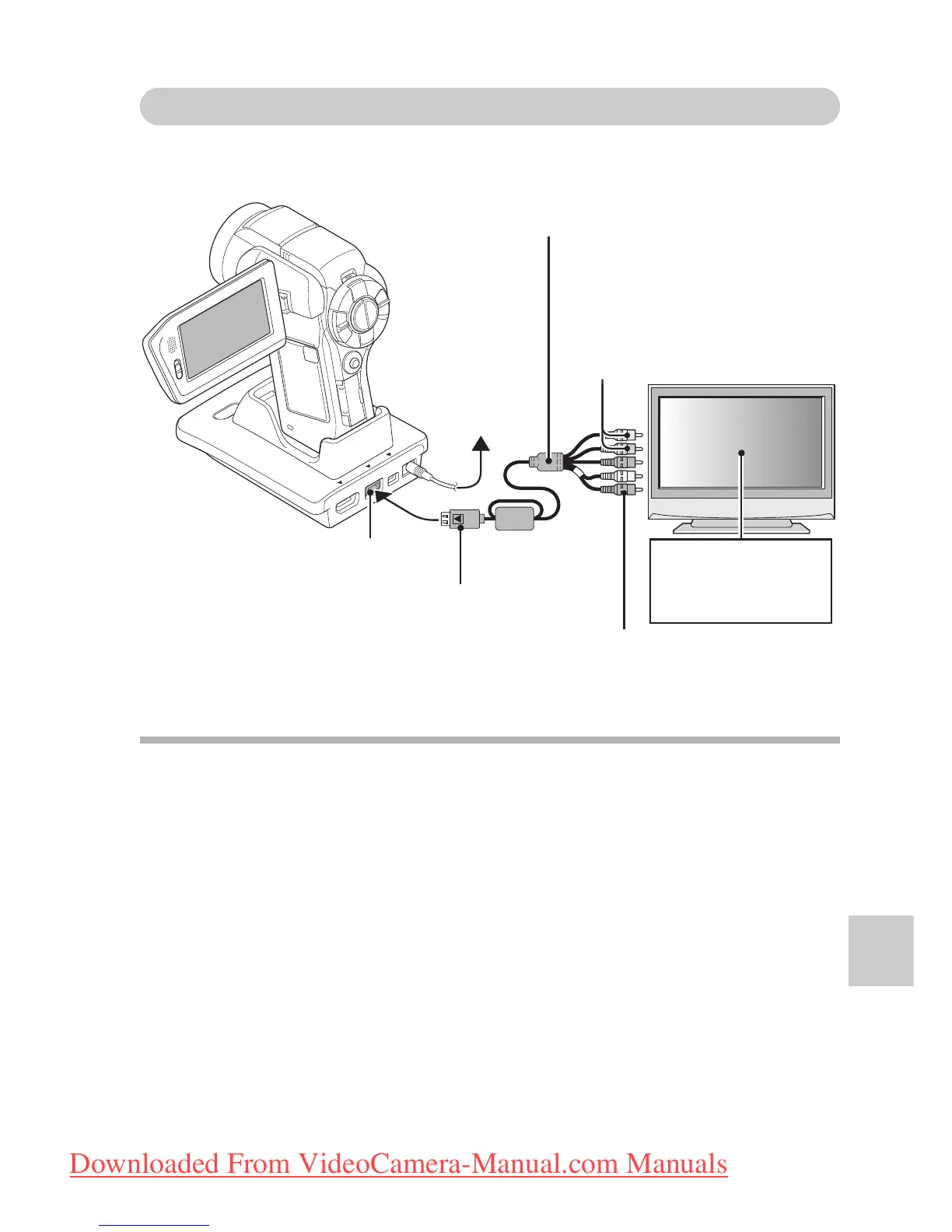

Connect to the 480p/720p/1080i terminal
If your TV has a 480p/720p/1080i input terminal, you can enjoy the high video
quality of component output from your camera.
NOTE
If your TV does not have 480p/720p/1080i video input capability
i The images will not appear on the TV.
Camera Menu Screen and TV Menu Screen
i The Menu Screen appears only on the TV monitor, so please operate the
camera while looking at the TV monitor.
Insert and pull out the cable carefully
i When connecting the cables, make sure that the cable plugs are correctly
oriented and that they match the shapes of the terminal sockets on the
devices. Push the plugs in straight when connecting them. If undue force is
used to connect a cable, it may permanently damage the connector pins in
the terminal socket.
i Do not use excessive force when connecting and disconnecting cables.
To AC
adaptor
COMPONENT/AV terminal
Dedicated component cable
i Insert the plug with the
[n] mark facing up.
Set the input to
“VIDEO”.
White plug:
To Audio Input (L) terminal
Red plug:
To Audio Input (R) terminal
To 480p/720p/1080i
input terminal
