Product Overview
An enhanced microprocessor controlled loop amplier with outstanding sound quality designed to be used with modern
audio and video products to transmit the sound direct to your hearing aid. Your hearing aid must be switched to the “T”
or Loop function to use the loop system. You can also enjoy the benets of the loop amplier by simply plugging a set of
headphones into the headphone socket on the rear of the amplier. For best results connect the amplier directly to your
TV or other sound source using the lead kit supplied.

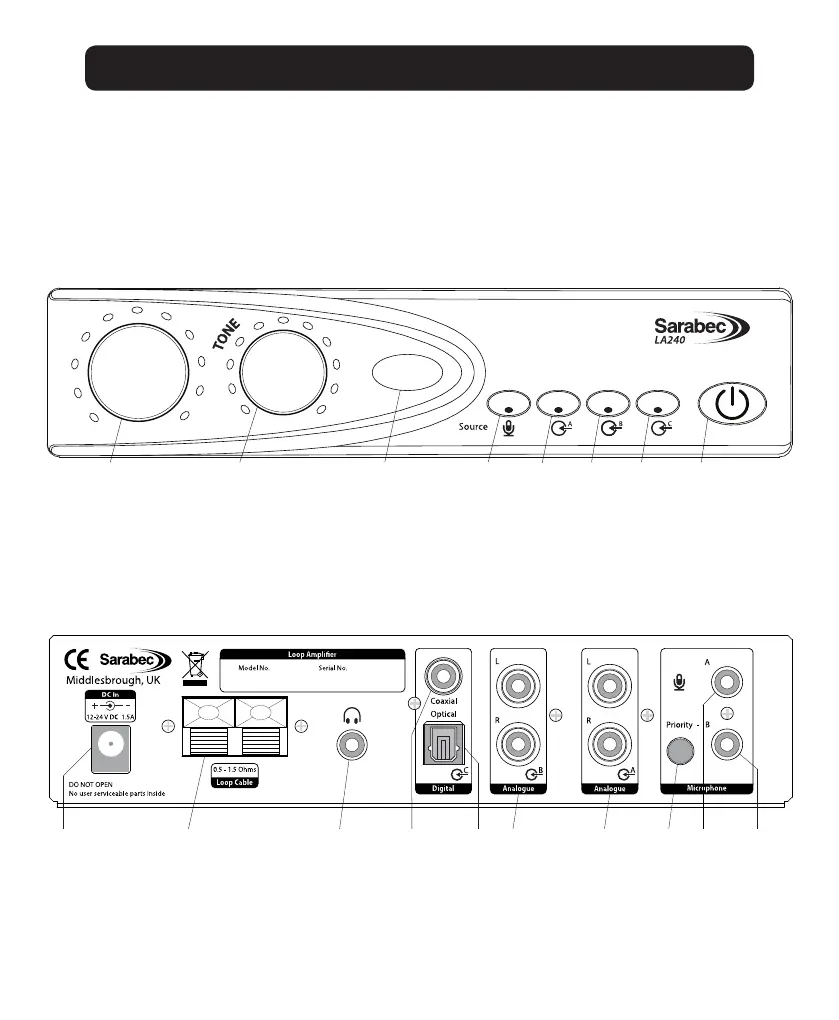

1) Volume Control 4) Microphone input select 7) Digital Audio input select
2) Tone Control 5) Line input A select 8) Power On/Standby
3) Loop level indicator 6) Line Input B select
10) DC power socket 13) Digital audio coaxial 16) Line Input A
11) Loop cable connectors 14) Digital audio optical 17) Microphone Priority
12) Headphone socket 15) Line Input B 18) Microphone Input A
19) Microphone Input B
V
O
L
U
M
E
1 2 3 4
5
6 7 8
! # $ % & ( ) * + ,
Front view
Rear view
