IN220 Cylindrical Lock
10 Outside Reader and Inside Mounting Plate Installation

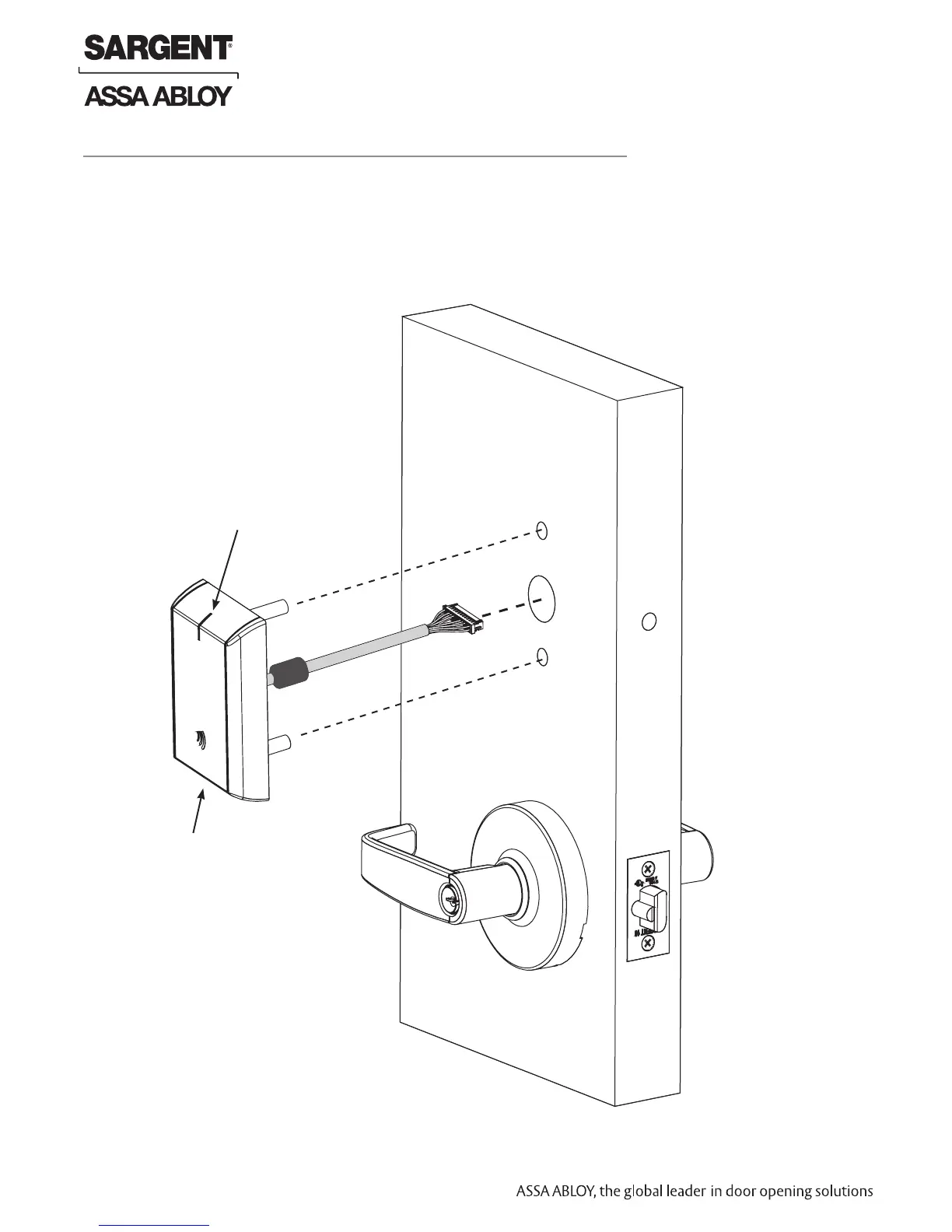

Fig. 10A
Outside of Door
1. Orient the reader so the LED lens is at the top.
2. Feed the reader harness through the door (from outside to inside).
3. Install the reader to the outside of door by aligning the mounting posts with the door preparation holes.
Hold the reader flush against door while ensuring proper alignment.
LED
Reader Assembly
with Harness
To Next Page
