IN220 Cylindrical Lock

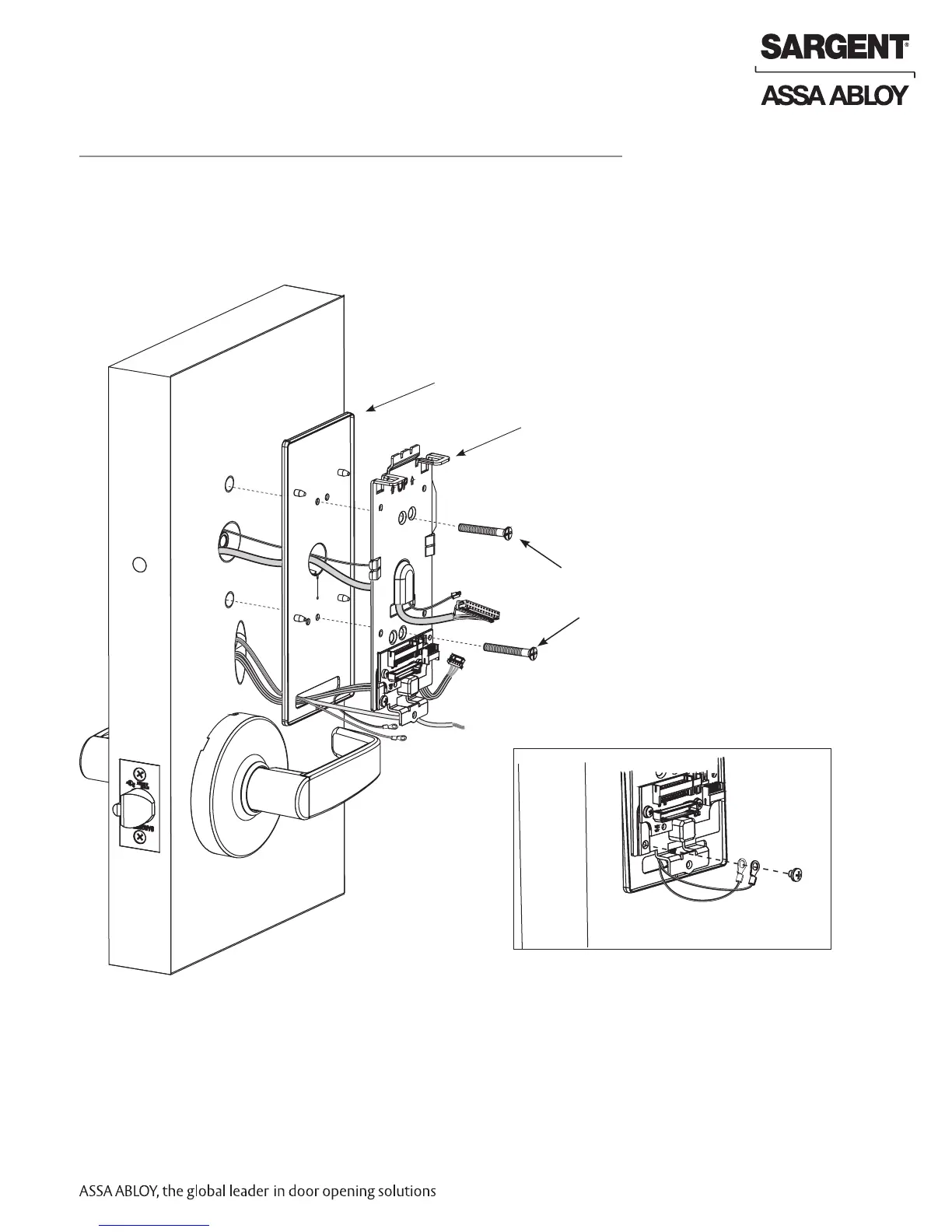

Fig. 10B
NOTE: Cable lengths exaggerated for illustrative purposes.
Inside of Door
Gasket*
10 Outside Reader Installation (Continued)
Mounting Plate
*Gasket is required for outdoor installations.
If installing with gasket; separate gasket from mounting plate to feed cables/connectors
through holes as indicated (Fig. 10B).
Once cables/connectors are fed through, reattach gasket to mounting plate.
Through -
bolts
4. Next feed the cables/connectors through the inside mounting assembly (and gasket if required*).
5. Secure the mounting assembly while ensuring proper alignment of outside reader and partially tighten
the (2) through-bolts on the inside of the door to secure the reader (Fig. 10B).
6. Secure both ground lugs with #6-32 machine screw (Fig.10C).
Fig. 10C
To Next Page
