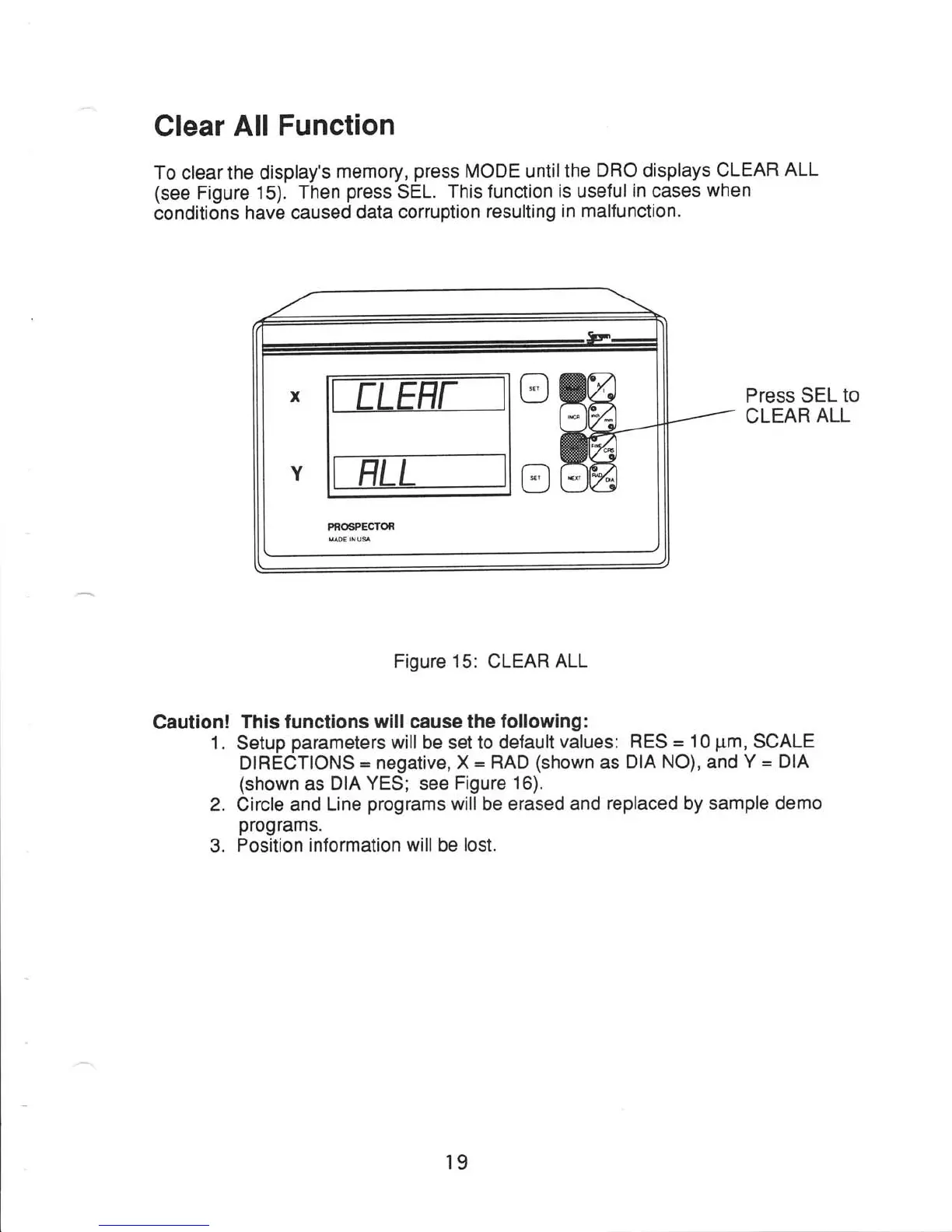

Sargon Prospector - Clear All Functions 1

Glear
All
Function
To
clear
the display's
memory,
press
MODE until
the
DRO displays
CLEAR
ALL
(see
Figure 15).
Then
press
SEL.
This function
is
useful
in
cases
when
conditions
have caused
data corruption
resulting
in malfunction.
Press SEL
to
CLEAR
ALL
Figure 15:
CLEAR
ALL
Caution!
This
functions
will
cause
the
following:
1.
Setup
parameters
will be set to default
values: RES
=
10
pm,
SCALE
DIRECTIONS
=
negative, X
=
RAD
(shown
as DIA
NO), and
Y
=
DIA
(shown
as DIA
YES; see
Figure
16).
2.
Circle
and Line
programs
will be erased and
replaced
by sample
demo
programs.
3.
Position information
will
be
lost.
19
