Sargon Prospector - AC Ground; AC Power Connection

AC
Ground
The AC
socket
used should
be a three
prong
grounded
outlet
(as
per
Article
250
of
the US
National
Electrical Code).
lf
a three
prong
outlet
is not
available, use
a
grounded
adapter
and
verify
that the
adapter
is
grounded.
Note:
Verify that the
machine
is
grounded;
if it is not,
a
ground
must
be
installed.
Install
a
14 AWG stranded
wire
(customer
provided)
from
the
ground
lug
on the
back of
the
Prospector to the
machine
power ground
connection.
lf
this is not
possible,
locate an alternate
place
on
the machine
and drill+tap.
Use star
or split
washers
to
secure the
ground
wire
to
provide
an adequate connection. Use an
approved anti-oxidation
compound on the connection
where
the
paint
was
scraped.
AC Power
Connection
Do not
connect the
Prospector to an outlet
which is
also
used
to
power
a
machine;
use
a separate outlet.
lf
an outlet
is not
available, one should be
installed
near
the display
mounting location.
The
AC
power
outlet should
be of
the
same
voltage indicated
on the
identification/serial number
on the back of the display.
Use the
power
cord supplied.
Do not modify
the
power
cord.
Connect
and secure the
scale cable connectors to the
display. Using tie-wraps,
secure
the scale
cables and dress any excess slack. Do
not wrap
any
AC
power
lines
together
with the
scale
cables.
Maintain
a
minimum
of 6
inches
(16
cm)
from
AC lines
and cross them
at
right
angles.

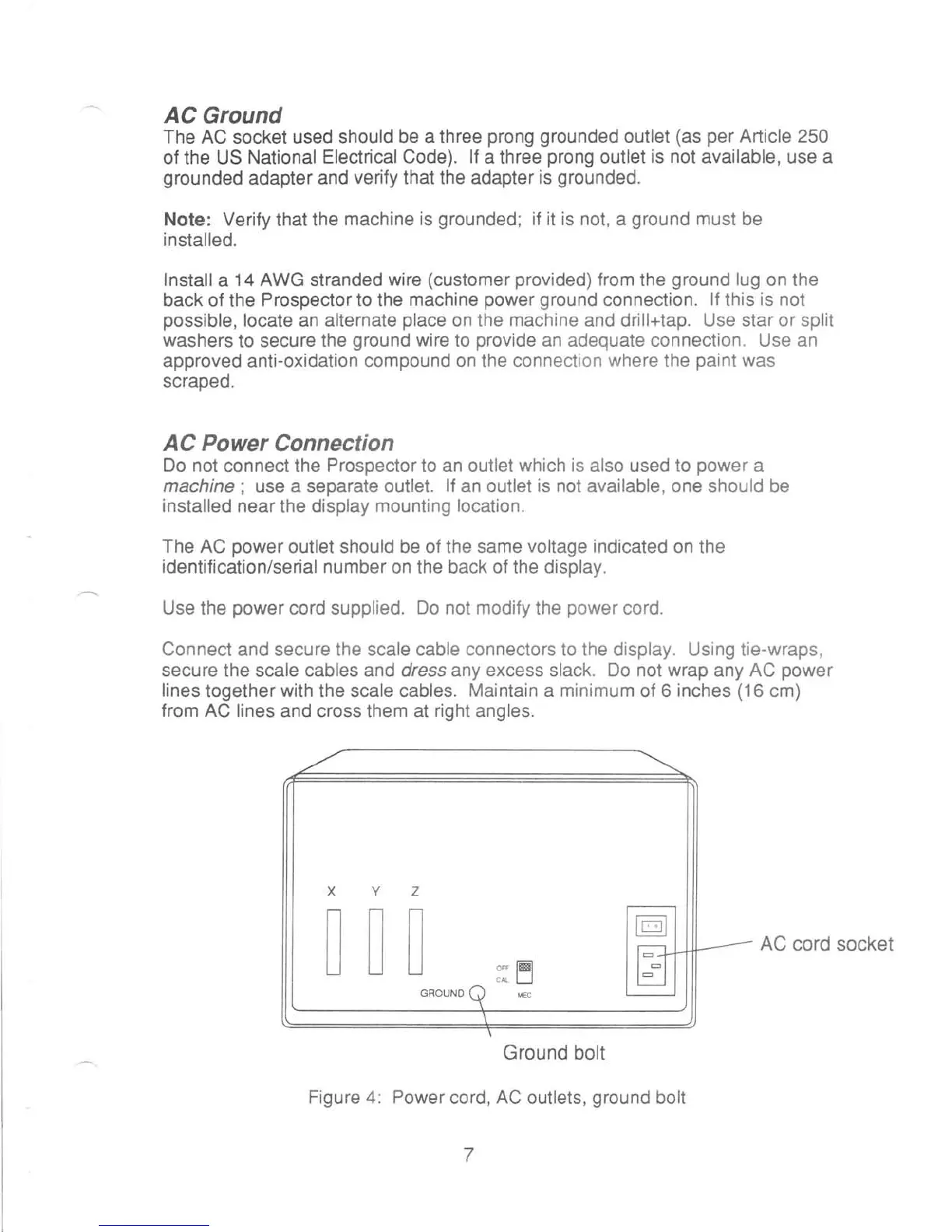

AC
cord socket
XYZ
r t-t l.t
| | tl
L]IIU
GROUND
Ground
bolt
Figure 4: Power
cord,
AC
outlets,
ground
bolt
